Design and function
1 Outlet valve
2 Inlet valve
3 Transfer
chamber
4 Diaphragm
5 Eccentric
6 Connecting
rod
24
Chemically-resistant Laboratory pump N820.18 EX / N840.18
Function of a diaphragm pump
3
4
5
6

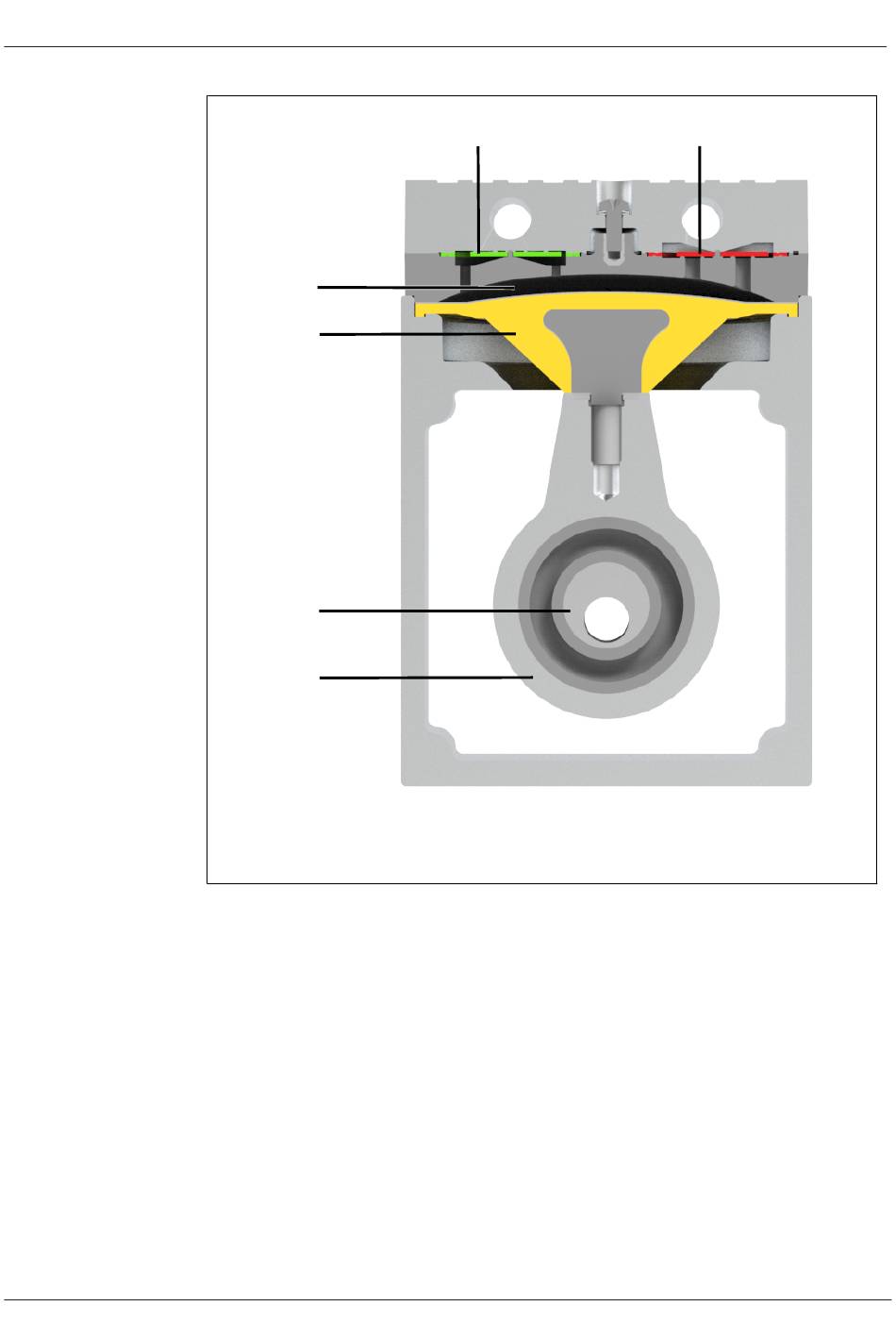

Fig.3: Function of a diaphragm pump
Diaphragm pumps transfer, compress (depending on the ver-
sion) and evacuate gases and vapors.
The elastic diaphragm (4) is moved up and down by the ec-
centric (5) and the connecting rod (6). In the downwards
stroke, it aspirates the gas to be transferred via the inlet valve
(2). In the upwards stroke, the diaphragm presses the medium
out of the pump head via the outlet valve (1). The pumping
chamber (3) is separated from the pump drive by the di-
aphragm.
Translation of Original Operating Instruction, KNF 317428-317425 05/21
