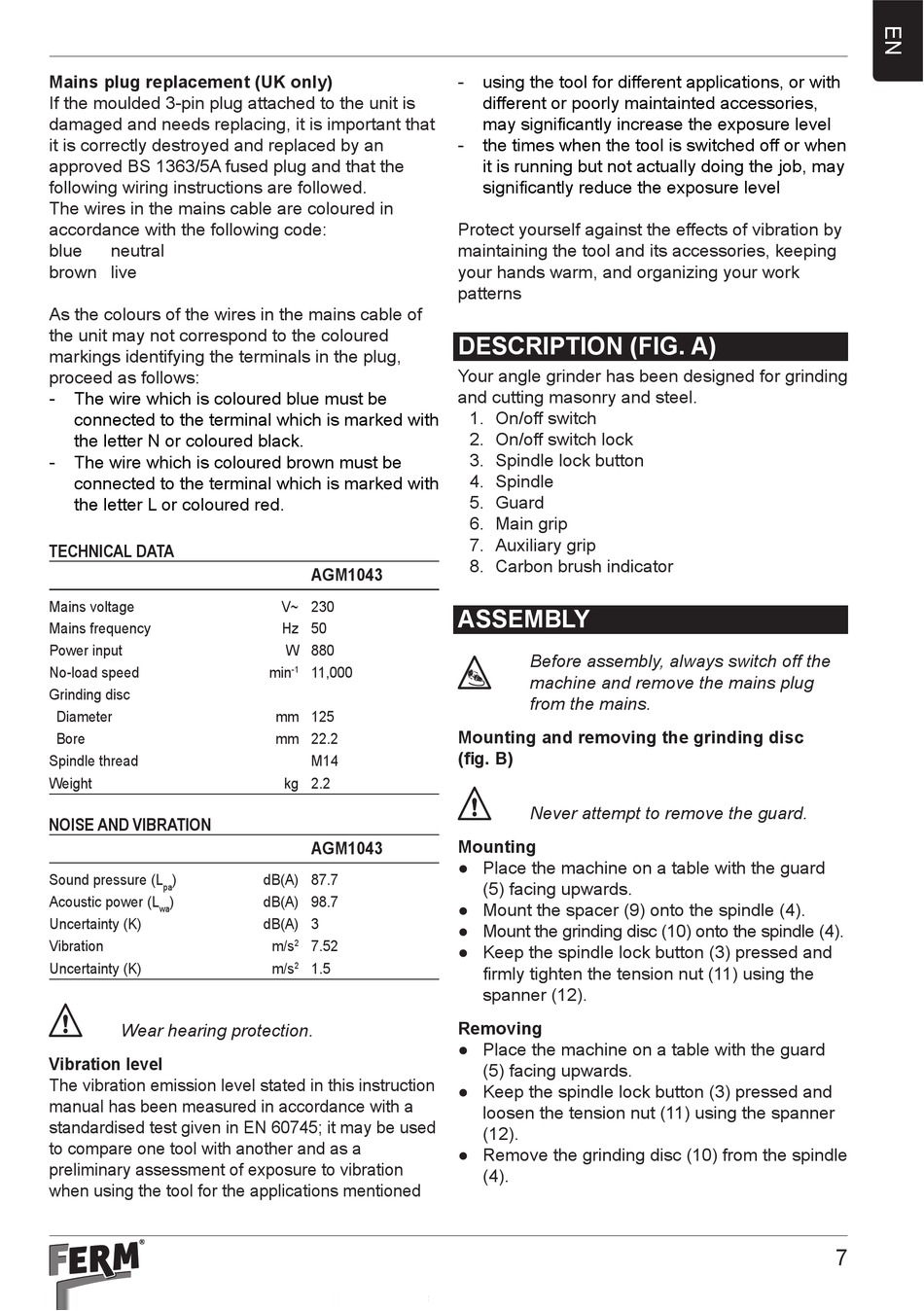

Mains plug replacement (UK only)
If the moulded 3-pin plug attached to the unit is
damaged and needs replacing, it is important that
it is correctly destroyed and replaced by an
approved BS 1363/5A fused plug and that the
following wiring instructions are followed.
The wires in the mains cable are coloured in
accordance with the following code:
blue neutral
brown live
As the colours of the wires in the mains cable of
the unit may not correspond to the coloured
markings identifying the terminals in the plug,
proceed as follows:
- The wire which is coloured blue must be
connected to the terminal which is marked with
the letter N or coloured black.
- The wire which is coloured brown must be
connected to the terminal which is marked with
the letter L or coloured red.
TECHNICAL DATA
Mains voltage
Mains frequency
Power input
No-load speed
Grinding disc
Diameter
Bore
Spindle thread
Weight
NOISE AND VIBRATION
Sound pressure (L )
pa
Acoustic power (L )
wa
Uncertainty (K)
Vibration
Uncertainty (K)
2
Wear hearing protection.
Vibration level
The vibration emission level stated in this instruction
manual has been measured in accordance with a
standardised test given in EN 60745; it may be used
to compare one tool with another and as a
preliminary assessment of exposure to vibration
when using the tool for the applications mentioned
AGM1043
V~ 230
Hz 50
W 880
min 11,000
-1
mm 125
mm 22.2
M14
kg 2.2
AGM1043
dB(A) 87.7
dB(A) 98.7
dB(A) 3
m/s 7.52
2
m/s 1.5
2
- using the tool for different applications, or with
different or poorly maintainted accessories,
may significantly increase the exposure level
- the times when the tool is switched off or when
it is running but not actually doing the job, may
significantly reduce the exposure level
Protect yourself against the effects of vibration by
maintaining the tool and its accessories, keeping
your hands warm, and organizing your work
patterns
DESCRIPtION (fIG. A)
Your angle grinder has been designed for grinding
and cutting masonry and steel.
1. On/off switch
2. On/off switch lock
3. Spindle lock button
4. Spindle
5. Guard
6. Main grip
7. Auxiliary grip
8. Carbon brush indicator
ASSEMBLy
4
Before assembly, always switch off the
machine and remove the mains plug
from the mains.
Mounting and removing the grinding disc
(fig. B)
2
Never attempt to remove the guard.
Mounting
● Place the machine on a table with the guard
(5) facing upwards.
● Mount the spacer (9) onto the spindle (4).
● Mount the grinding disc (10) onto the spindle (4).
● Keep the spindle lock button (3) pressed and
firmly tighten the tension nut (11) using the
spanner (12).
Removing
● Place the machine on a table with the guard
(5) facing upwards.
● Keep the spindle lock button (3) pressed and
loosen the tension nut (11) using the spanner
(12).
● Remove the grinding disc (10) from the spindle
(4).
