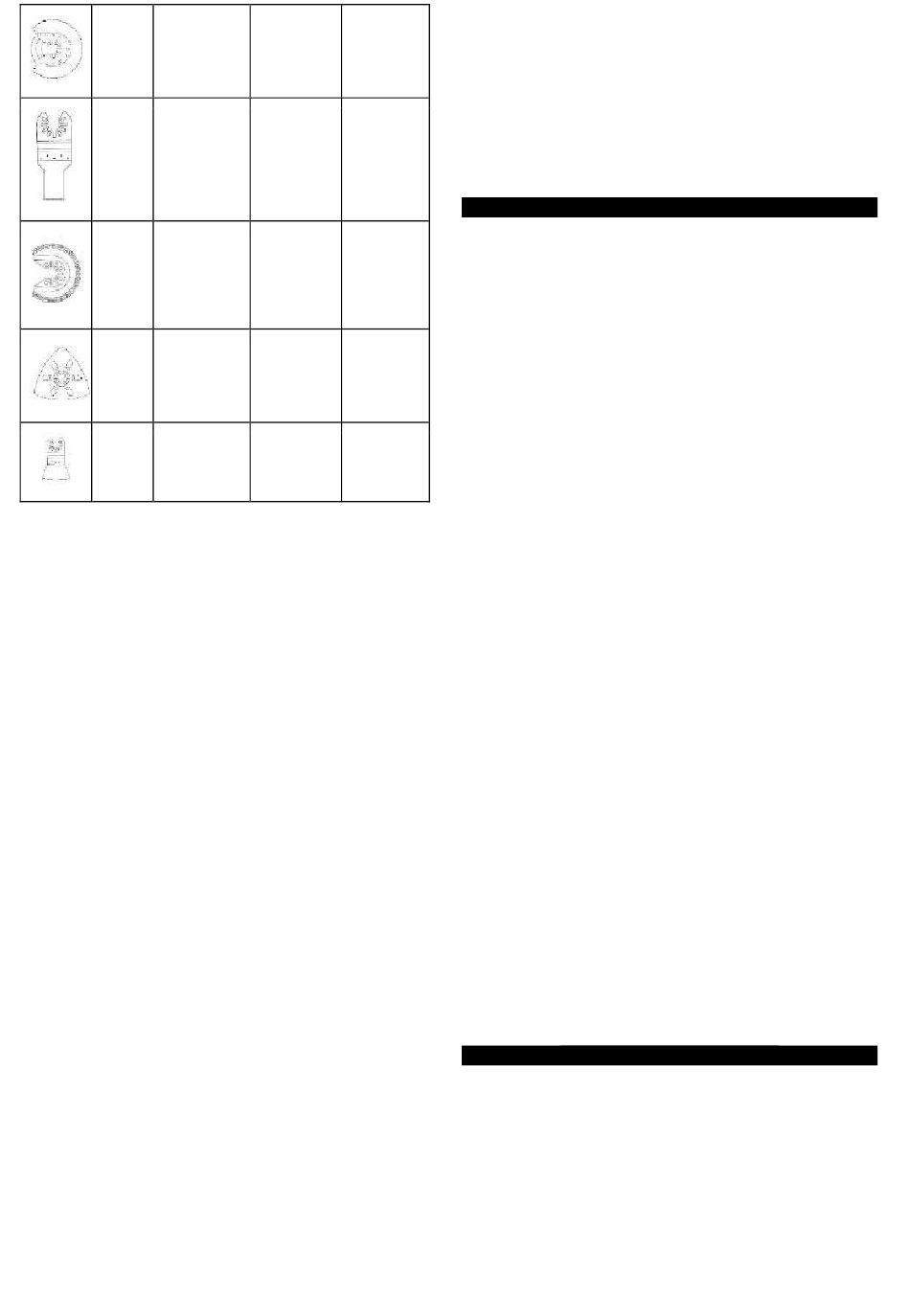

Half- Wood,
round based
HCS plastics
wheel for
wood
HCS Wood,
blade for based
wood plastics
Half- Cement joints, soft
round ceramic tiles, hard
wheel plastics and other
with materials.
tungsten
grit
Delta Wood,
sanding based
pad abrasive materials.
Stiff Linings,
scraper ceramic tiles.
INSTALLATION AND REPLACEMENT OF SANDING PAPER
Sanding pad is equipped with hook-and-loop attachment system
for quick and easy replacement of sanding paper. Choose sanding
paper with appropriate gradation depending on the processed
material and desired level of material removal. All types of sanding
paper, abrasive cloths and polishing felt are allowed.
Use only appropriate sanding paper with holes (perforated).
• Put the sanding paper close to the sanding pad (1).
• Place the sanding paper so its holes (a) match with the holes on
the sanding pad (1).
• Press the sanding paper against the sanding pad (1).
• Make sure that the holes on the sanding paper and sanding pad
fully match; it ensures optimal conditions for dust extraction.
• To remove sanding paper, lift edge of it on one side and pull
(fig. A).
INSTALLATION OF WORKING TOOLS
• Remove working tool if already installed.
• Use hexagonal key to unscrew the fixing screw (6), remove washer
and remove the working tool.
• Place working tool in the tool holder, make sure to close latch joint
of the tool and tool holder.
• You can place working tools onto the tool holder in any latching
position (fig. B) to allow for operation most comfortable and safe
for the user.
• Working tool should be installed with bend pointing down.
• Place washer and tighten the screw (6) to install working tool.
Check that the tool is installed properly. Improperly or inaccurately
installed working tools can slip during operation and cause risk for the
user.
DUST EXTRACTION
Dust of some materials may be hazardous to health, like paint coatings
with lead additives, some types of wood e.g. oak or beech or materials
with asbestos. Therefore, we recommend use of external dust extraction
systems, good workplace ventilation and use of dust-mask with particle
filter.
wood- Dividing and Narrow
materials, plunge cutting in cuts
corners and hard wood, e.g. for air
to reach areas, grates.
near surfaces.
wood- Dividing and Cut
materials, plunge cutting in furniture boards,
corners and hard cutting
to reach areas, bases
near surfaces. plunge
for fitting floor
panels.
Cutting short and Removal of joint,
cutting off close cutting holes in
to edges, in ceramic tiles and
corners and plastics.
hardly accessible
places.
wood- Sanding in hard Removal
materials, to reach areas mortar and glue
and in corners on for ceramic tiles,
a hard substrate. sanding
wood, polishing.
floors, Scraping soft Removal
materials on a mortar residues,
hard substrate. glue for lining or
ceramic tiles.
The tool is equipped with dust extraction add-on, which should be
plunge
connected to external dust extractor after installation, e.g. vacuum
in solid
cleaner designed for the type of produced dust.
• Remove working tool if already installed.
• Install dust extraction add-on (5) and fix with clamp (4).
outs in
• Connect suction hose, e.g. vacuum cleaner to the adaptor (3) of
the dust extraction add-on (5).
cove
• Install working tool in the tool holder.
short,
cutting
SWITCHING ON / SWITCHING OFF
The mains voltage must match the voltage on the label of the
tool.
Switching on – slide the switch (2) forward to position I (fig. C).
Switching off – slide the switch (2) backward to position O.
of
WARNING! Do not cover holes for motor ventilation in the
tool body.
solid
PRINCIPLES OF OPERATION
of
Oscillation frequency 20 000 rpm at 2.8° angle allows to work
precisely in small areas and corners with the power tool.
SAWING AND CUTTING
Use only undamaged working tools in good technical condition.
When sawing or cutting wood, fibre board, wood-based
materials etc. make sure they do not contain foreign objects like
nails, bolts etc before starting the task. Remove foreign objects
or use proper blade for removal. You can make plunge cuts only
in soft materials like wood, gypsum boards and alike.
Cutting ceramic tiles causes faster wear of working tool.
SANDING
Working efficiency in surface sanding depends mainly on type and
quality of sanding paper and pressure applied for processing.
Overpressure does not make sanding more efficient, it only causes
faster wear of sanding paper and may cause overheating of the
power tool. Apply moderate and uniform pressure.
You can use tip or edge of the sanding pad to sand corners or edges
in hardly accessible places.
Proceed with sanding tasks only with dust extraction system
connected. Do not use paper previously used for metal
polishing for processing material of other type.
SCRAPING
Scrape soft materials (e.g. wood) at small angle and with small
pressure.
Otherwise the scraper can damage the surface.
Unplug the power cord from mains socket before commencing
any activities related to installation, adjustment, repair or
maintenance.
MAINTENANCE AND STORAGE
• Always keep the tool clean.
• Do not use water or any other liquid for cleaning.
• Use a brush or a dry piece of cloth to clean the power tool.
• Clean working tools with a wire brush.
• Clean ventilation holes regularly to prevent motor overheating.
