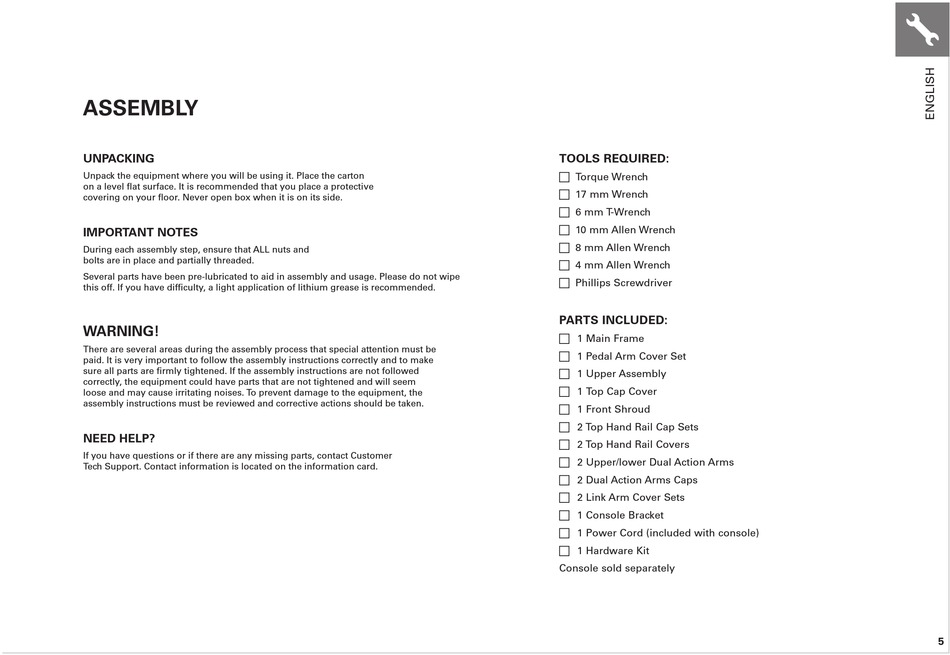

ASSEMBLY
UNPACKING
Unpack the equipment where you will be using it. Place the carton
on a level flat surface. It is recommended that you place a protective
covering on your floor. Never open box when it is on its side.
IMPORTANT NOTES
During each assembly step, ensure that ALL nuts and
bolts are in place and partially threaded.
Several parts have been pre-lubricated to aid in assembly and usage. Please do not wipe
this off. If you have difficulty, a light application of lithium grease is recommended.
WARNING!
There are several areas during the assembly process that special attention must be
paid. It is very important to follow the assembly instructions correctly and to make
sure all parts are firmly tightened. If the assembly instructions are not followed
correctly, the equipment could have parts that are not tightened and will seem
loose and may cause irritating noises. To prevent damage to the equipment, the
assembly instructions must be reviewed and corrective actions should be taken.
NEED HELP?
If you have questions or if there are any missing parts, contact Customer
Tech Support. Contact information is located on the information card.
TOOLS REQUIRED:
F Torque Wrench
F 17 mm Wrench
F 6 mm T-Wrench
F 10 mm Allen Wrench
F 8 mm Allen Wrench
F 4 mm Allen Wrench
F Phillips Screwdriver
PARTS INCLUDED:
F 1 Main Frame
F 1 Pedal Arm Cover Set
F 1 Upper Assembly
F 1 Top Cap Cover
F 1 Front Shroud
F 2 Top Hand Rail Cap Sets
F 2 Top Hand Rail Covers
F 2 Upper/lower Dual Action Arms
F 2 Dual Action Arms Caps
F 2 Link Arm Cover Sets
F 1 Console Bracket
F 1 Power Cord (included with console)
F 1 Hardware Kit
Console sold separately
