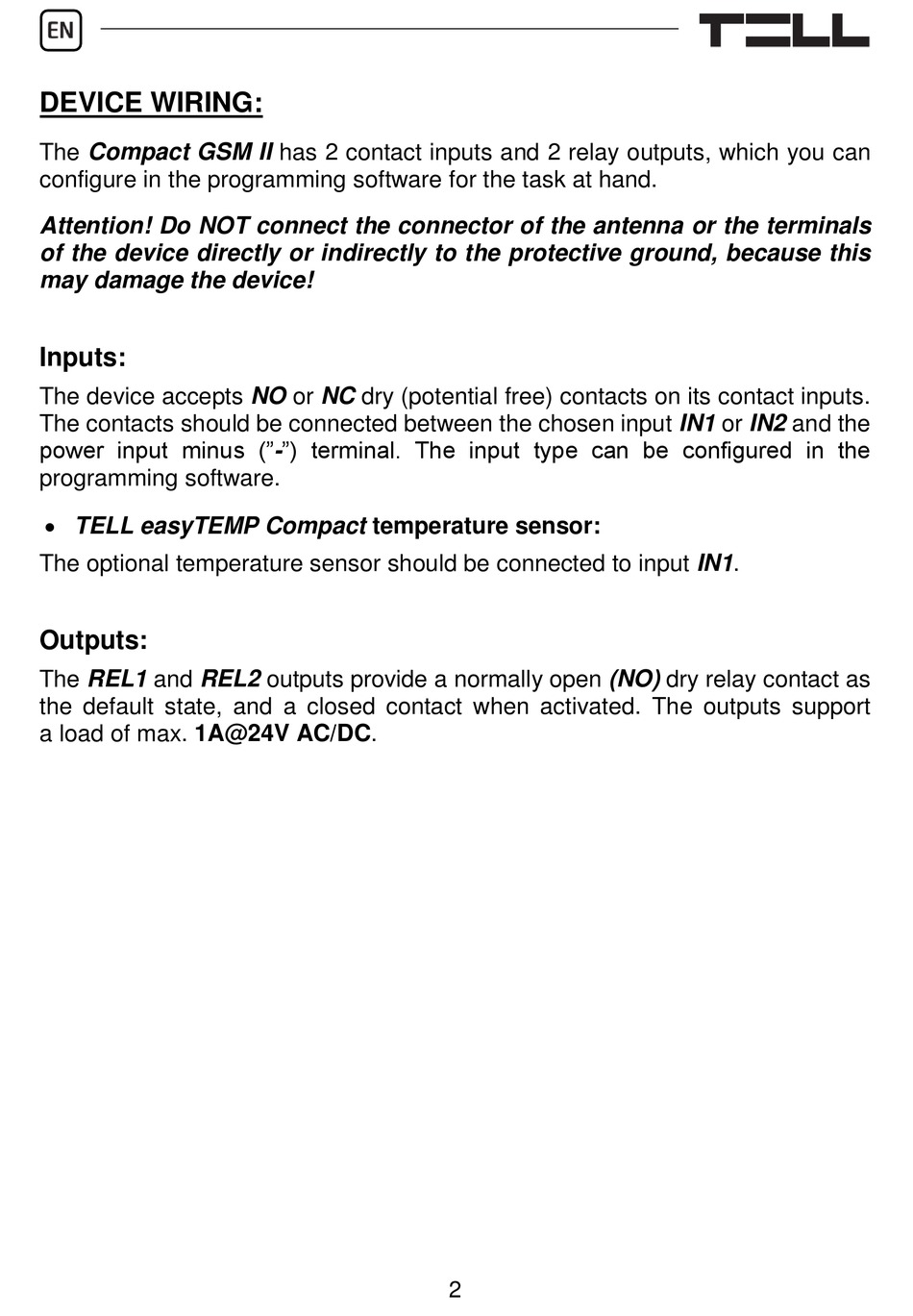

DEVICE WIRING:

The Compact GSM II has 2 contact inputs and 2 relay outputs, which you can
configure in the programming software for the task at hand.
Attention! Do NOT connect the connector of the antenna or the terminals
of the device directly or indirectly to the protective ground, because this
may damage the device!
Inputs:
The device accepts NO or NC dry (potential free) contacts on its contact inputs.
The contacts should be connected between the chosen input IN1 or IN2 and the
power input minus ("-") terminal. The input type can be configured in the
programming software.
 TELL easyTEMP Compact temperature sensor:
The optional temperature sensor should be connected to input IN1.
Outputs:
The REL1 and REL2 outputs provide a normally open (NO) dry relay contact as
the default state, and a closed contact when activated. The outputs support
a load of max. 1A@24V AC/DC.
2
