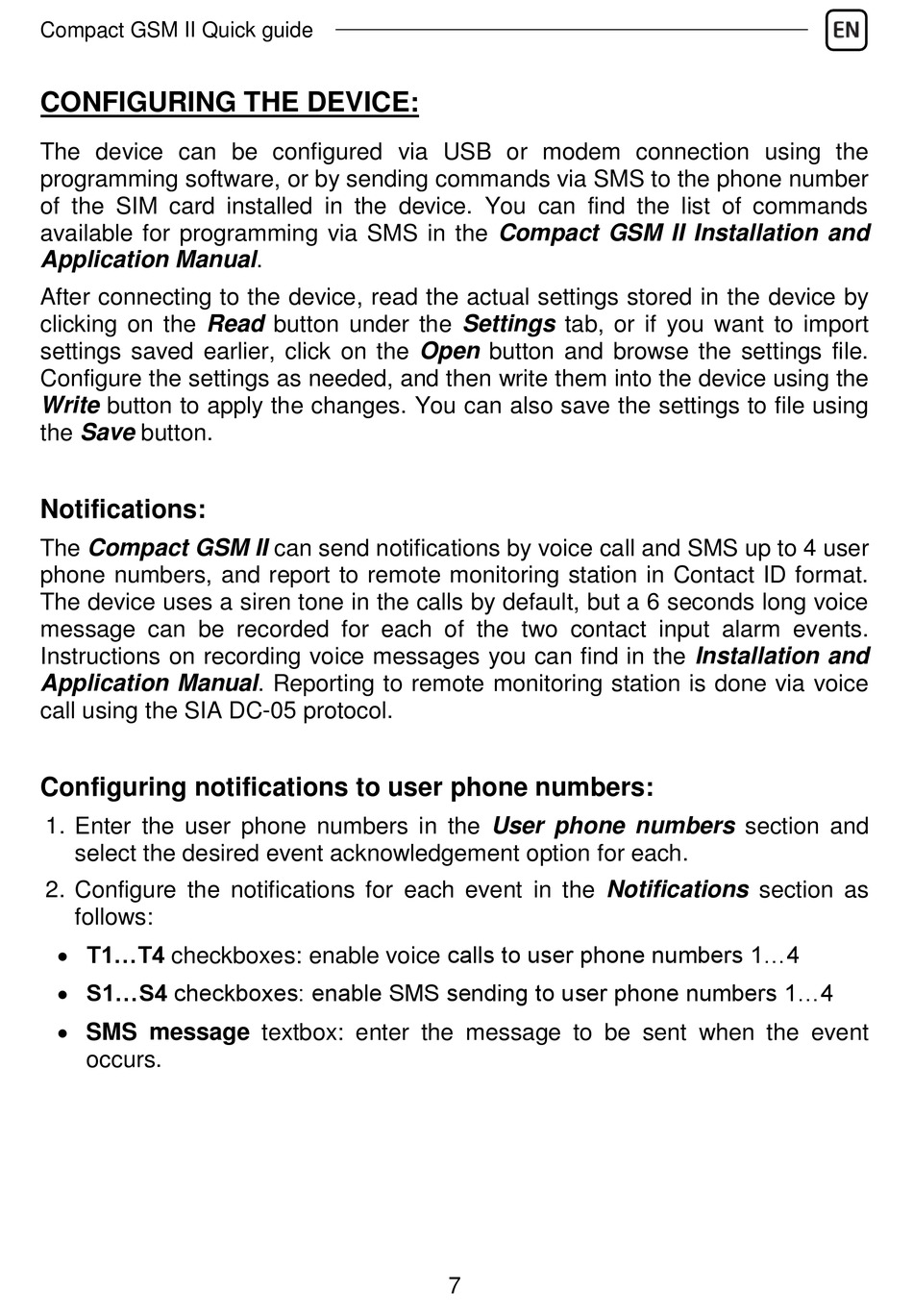

Compact GSM II Quick guide

CONFIGURING THE DEVICE:

The device can be configured via USB or modem connection using the
programming software, or by sending commands via SMS to the phone number
of the SIM card installed in the device. You can find the list of commands
available for programming via SMS in the Compact GSM II Installation and
Application Manual.
After connecting to the device, read the actual settings stored in the device by
clicking on the Read button under the Settings tab, or if you want to import
settings saved earlier, click on the Open button and browse the settings file.
Configure the settings as needed, and then write them into the device using the
Write button to apply the changes. You can also save the settings to file using
the Save button.
Notifications:
The Compact GSM II can send notifications by voice call and SMS up to 4 user
phone numbers, and report to remote monitoring station in Contact ID format.
The device uses a siren tone in the calls by default, but a 6 seconds long voice
message can be recorded for each of the two contact input alarm events.
Instructions on recording voice messages you can find in the Installation and
Application Manual. Reporting to remote monitoring station is done via voice
call using the SIA DC-05 protocol.
Configuring notifications to user phone numbers:
1. Enter the user phone numbers in the User phone numbers section and
select the desired event acknowledgement option for each.
2. Configure the notifications for each event in the Notifications section as
follows:
 T1...T4 checkboxes: enable voice calls to user phone numbers 1...4
 S1...S4 checkboxes: enable SMS sending to user phone numbers 1...4
 SMS message textbox: enter the message to be sent when the event
occurs.
