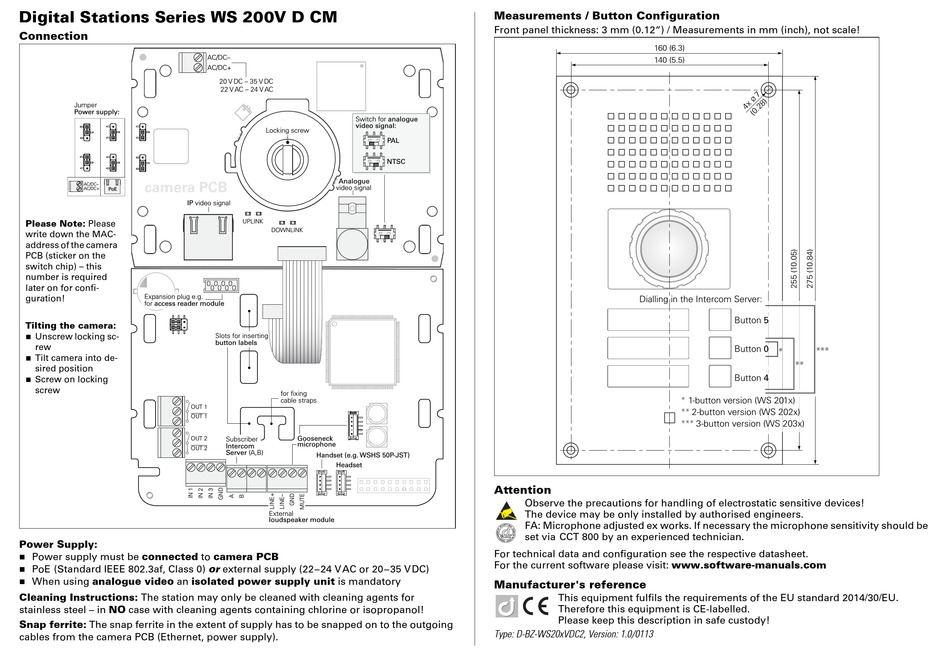

Digital Stations Series WS 200V D CM
Connection
Jumper
Power supply:
camera PCB
AC/DC–
AC/DC+
PoE
IP video signal
Please Note: Please
write down the MAC-
address of the camera
PCB (sticker on the
switch chip) – this
number is required
later on for confi-
Expansion plug e.g.
guration!
for access reader module
Tilting the camera:
Unscrew locking sc-
rew
Tilt camera into de-
sired position
Screw on locking
screw
OUT 1
OUT 1
OUT 2
OUT 2
Power Supply:
Power supply must be connected to camera PCB
PoE (Standard IEEE 802.3af, Class 0) or external supply (22–24 VAC or 20–35 VDC)
When using analogue video an isolated power supply unit is mandatory
Cleaning Instructions: The station may only be cleaned with cleaning agents for
stainless steel – in NO case with cleaning agents containing chlorine or isopropanol!
Snap ferrite: The snap ferrite in the extent of supply has to be snapped on to the outgoing
cables from the camera PCB (Ethernet, power supply).
AC/DC–
AC/DC+
20 V DC – 35 V DC
22 V AC – 24 V AC
Switch for analogue
video signal:
Locking screw
Analogue
video signal
UPLINK
DOWNLINK
Slots for inserting
button labels
HQT ZKPI
cable straps
Gooseneck
Subscriber
microphone
Intercom
Server (A,B)
Handset (e.g. WSHS 50P-JST)
Headset
External
loudspeaker module
Measurements / Button Configuration
Front panel thickness: 3 mm (0.12") / Measurements in mm (inch), not scale!
PAL
NTSC
Attention
Observe the precautions for handling of electrostatic sensitive devices!
The device may be only installed by authorised engineers.
FA: Microphone adjusted ex works. If necessary the microphone sensitivity should be
set via CCT 800 by an experienced technician.
For technical data and configuration see the respective datasheet.
For the current software please visit: www.software-manuals.com
Manufacturer's reference
This equipment fulfils the requirements of the EU standard 2014/30/EU.
Therefore this equipment is CE-labelled.
Please keep this description in safe custody!
Type: D-BZ-WS20xVDC2, Version: 1.0/0113
160 (6.3)
140 (5.5)
Dialling in the Intercom Server:
Button 5
Button 0
*
**
Button 4
*
1-button version (WS 201x)
**
2-button version (WS 202x)
***
3-button version (WS 203x)
***
