5. Panel Description

Note Fig. 1
1. Non Contact Voltage tester (NCV) - Sensor
2. NCV - Display (green / red / red)
3. Display
4. Point Illumination (Flashlight)
5. Function keys (meaning see below.)
6. Rotary switch
7. Multi-function jack
8. 10 A-jack
9. Common jack (COM)

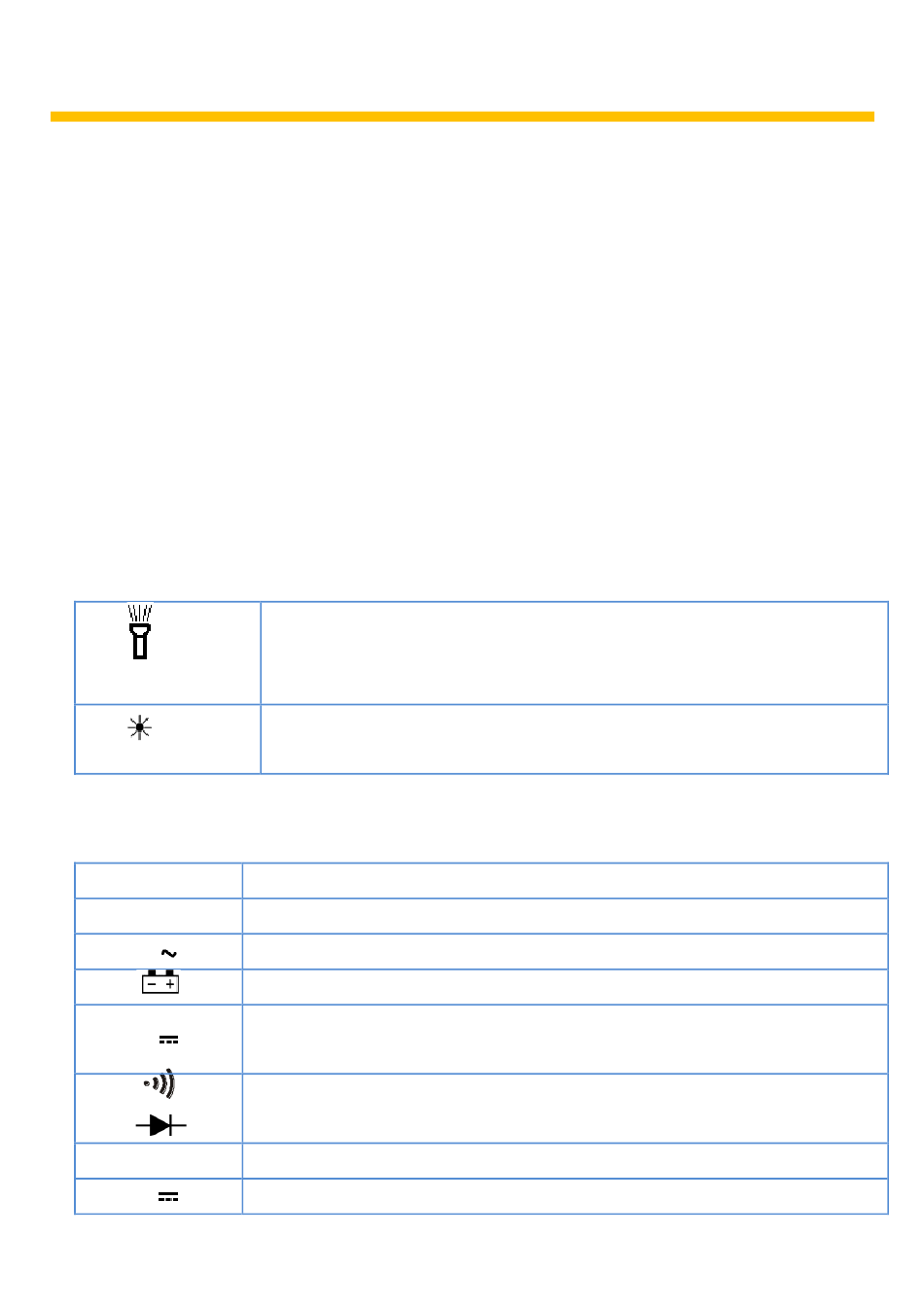

The function keys and their meanings
HOLD
Symbols of the rotary switch
OFF
NCV
V
A

V
Point Illumination (Flashlight)
Backlight
DATA HOLD (keep displayed value)
Device switched off
Non Contact Voltage tester
AC Voltage measurement
Battery test
DC current measurement
(Alternating current measurements are not possible.)
Continuity test / Diode test
Resistance measurement
DC Voltage measurement
