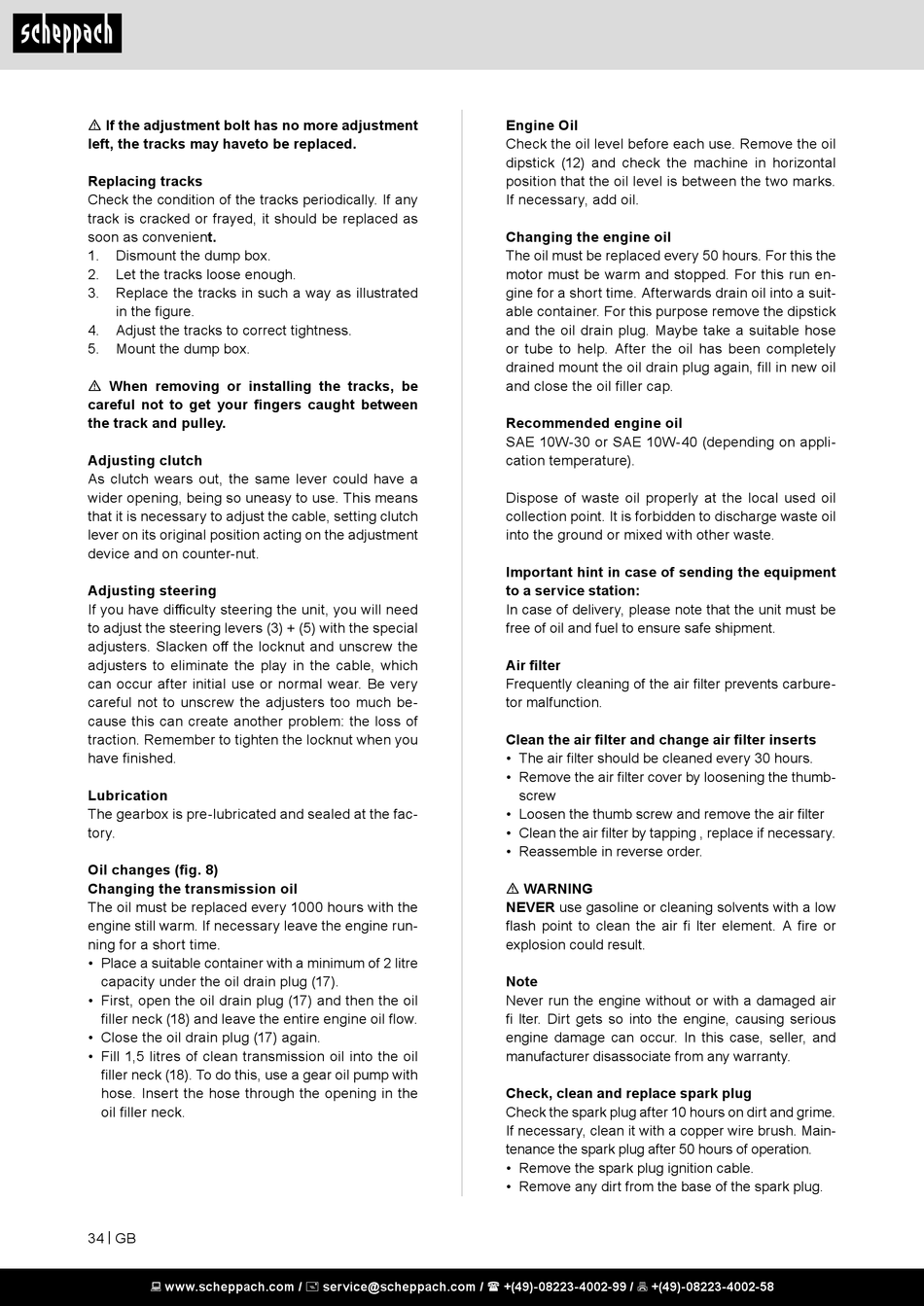

m If the adjustment bolt has no more adjustment
left, the tracks may haveto be replaced.
Replacing tracks
Check the condition of the tracks periodically. If any
track is cracked or frayed, it should be replaced as
soon as convenient.
1. Dismount the dump box.
2. Let the tracks loose enough.
3. Replace the tracks in such a way as illustrated
in the figure.
4. Adjust the tracks to correct tightness.
5. Mount the dump box.
m When removing or installing the tracks, be
careful not to get your fingers caught between
the track and pulley.
Adjusting clutch
As clutch wears out, the same lever could have a
wider opening, being so uneasy to use. This means
that it is necessary to adjust the cable, setting clutch
lever on its original position acting on the adjustment
device and on counter-nut.
Adjusting steering
If you have difficulty steering the unit, you will need
to adjust the steering levers (3) + (5) with the special
adjusters. Slacken off the locknut and unscrew the
adjusters to eliminate the play in the cable, which
can occur after initial use or normal wear. Be very
careful not to unscrew the adjusters too much be-
cause this can create another problem: the loss of
traction. Remember to tighten the locknut when you
have finished.
Lubrication
The gearbox is pre-lubricated and sealed at the fac-
tory.
Oil changes (fig. 8)
Changing the transmission oil
The oil must be replaced every 1000 hours with the
engine still warm. If necessary leave the engine run-
ning for a short time.
• Place a suitable container with a minimum of 2 litre
capacity under the oil drain plug (17).
• First, open the oil drain plug (17) and then the oil
filler neck (18) and leave the entire engine oil flow.
• Close the oil drain plug (17) again.
• Fill 1,5 litres of clean transmission oil into the oil
filler neck (18). To do this, use a gear oil pump with
hose. Insert the hose through the opening in the
oil filler neck.
34 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Engine Oil
Check the oil level before each use. Remove the oil
dipstick (12) and check the machine in horizontal
position that the oil level is between the two marks.
If necessary, add oil.
Changing the engine oil
The oil must be replaced every 50 hours. For this the
motor must be warm and stopped. For this run en-
gine for a short time. Afterwards drain oil into a suit-
able container. For this purpose remove the dipstick
and the oil drain plug. Maybe take a suitable hose
or tube to help. After the oil has been completely
drained mount the oil drain plug again, fill in new oil
and close the oil filler cap.
Recommended engine oil
SAE 10W-30 or SAE 10W-40 (depending on appli-
cation temperature).
Dispose of waste oil properly at the local used oil
collection point. It is forbidden to discharge waste oil
into the ground or mixed with other waste.
Important hint in case of sending the equipment
to a service station:
In case of delivery, please note that the unit must be
free of oil and fuel to ensure safe shipment.
Air filter
Frequently cleaning of the air filter prevents carbure-
tor malfunction.
Clean the air filter and change air filter inserts
• The air filter should be cleaned every 30 hours.
• Remove the air filter cover by loosening the thumb-
screw
• Loosen the thumb screw and remove the air filter
• Clean the air filter by tapping , replace if necessary.
• Reassemble in reverse order.
m WARNING
NEVER use gasoline or cleaning solvents with a low
flash point to clean the air fi lter element. A fire or
explosion could result.
Note
Never run the engine without or with a damaged air
fi lter. Dirt gets so into the engine, causing serious
engine damage can occur. In this case, seller, and
manufacturer disassociate from any warranty.
Check, clean and replace spark plug
Check the spark plug after 10 hours on dirt and grime.
If necessary, clean it with a copper wire brush. Main-
tenance the spark plug after 50 hours of operation.
• Remove the spark plug ignition cable.
• Remove any dirt from the base of the spark plug.
