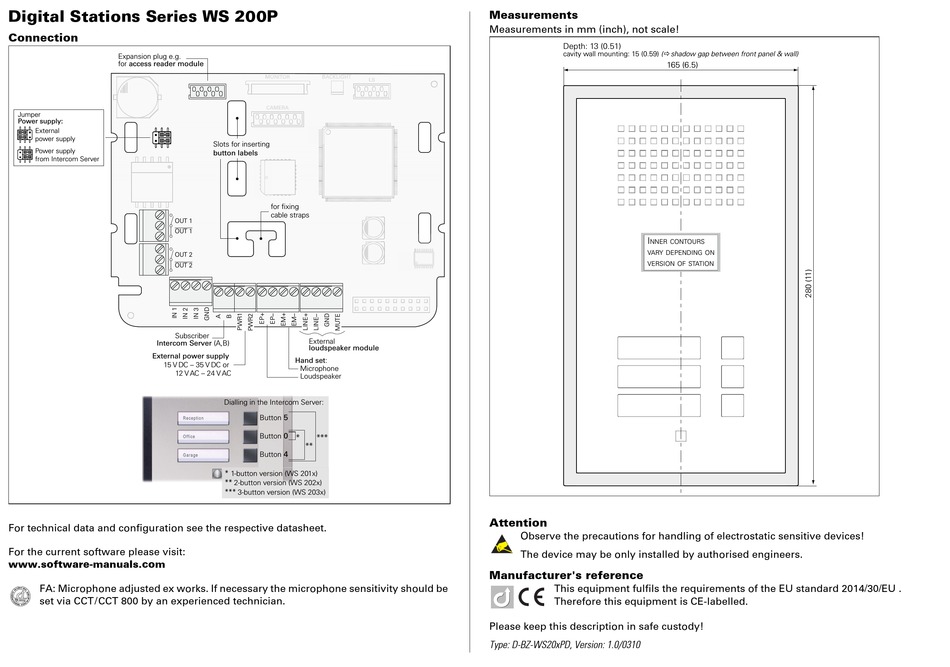

Digital Stations Series WS 200P
Connection
Expansion plug e.g.
for access reader module
Jumper
Power supply:
External
power supply
Power supply
from Intercom Server
OUT 1
OUT 1
OUT 2
OUT 2
Subscriber
Intercom Server (A,B)
External power supply
15 V DC – 35 V DC or
12 V AC – 24 V AC
For technical data and configuration see the respective datasheet.
For the current software please visit:
www.software-manuals.com
FA: Microphone adjusted ex works. If necessary the microphone sensitivity should be
set via CCT/CCT 800 by an experienced technician.
MONITOR MONITOR BACKLIGHT BACKLIGHT
LS LS
CAMERA CAMERA
Slots for inserting
button labels
for fixing
cable straps
External
loudspeaker module
Hand set:
Microphone
Loudspeaker
Dialling in the Intercom Server:
5
Button
Button 0
*
***
**
Button 4
* 1-button version (WS 201x)
**
2-button version (WS 202x)
*** 3-button version (WS 203x)
Measurements
Measurements in mm (inch), not scale!
Depth: 13 (0.51)
cavity wall mounting: 15 (0.59) (shadow gap between front panel & wall)
165 (6.5)
I
NNER CONTOURS
VARY DEPENDING ON
VERSION OF STATION
Attention
Observe the precautions for handling of electrostatic sensitive devices!
The device may be only installed by authorised engineers.
Manufacturer's reference
This equipment fulfils the requirements of the EU standard 2014/30/EU .
Therefore this equipment is CE-labelled.
Please keep this description in safe custody!
Type: D-BZ-WS20xPD, Version: 1.0/0310
