Producing of longer joint than the jig

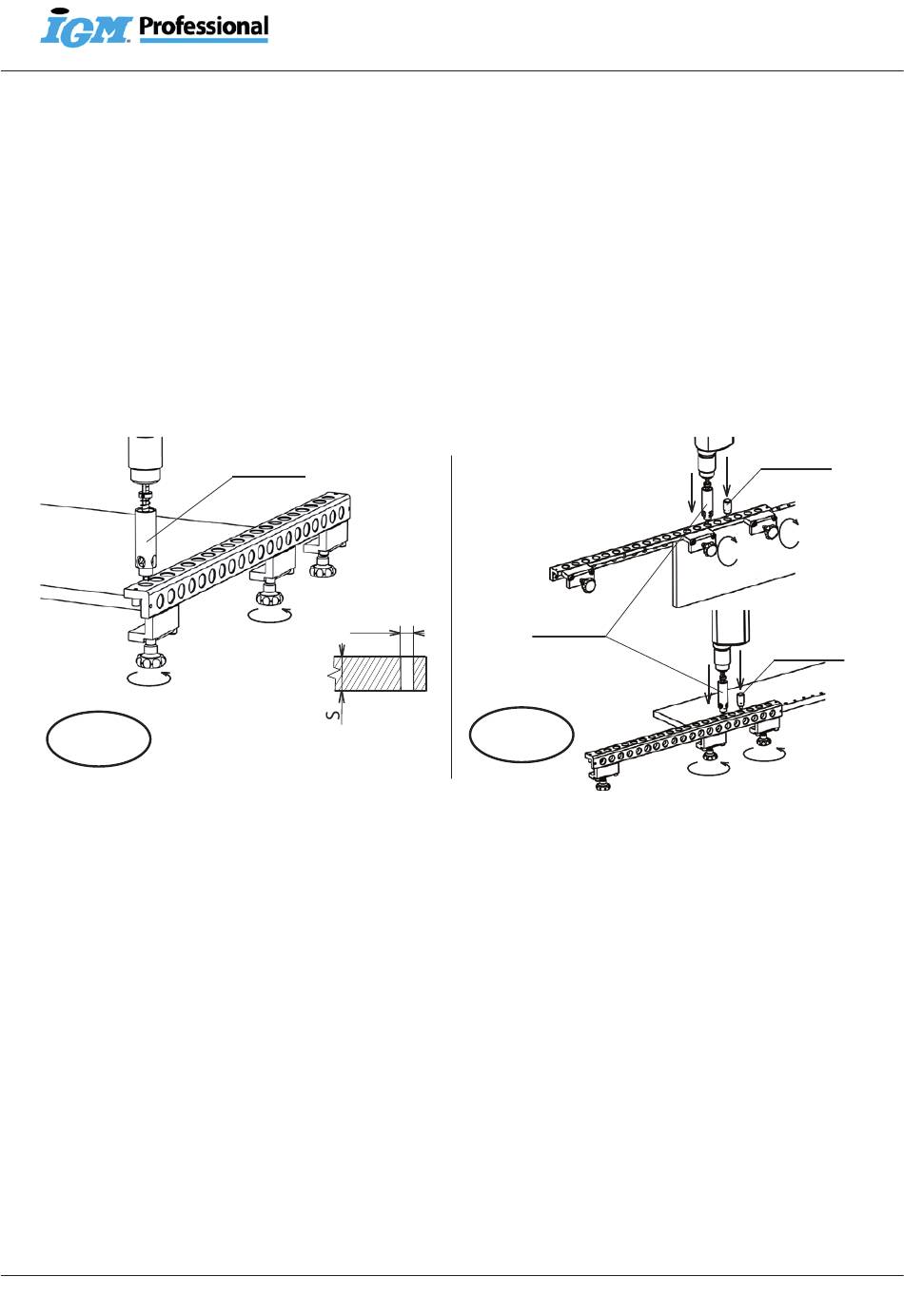

The working procedure is represented in the figure (fig. 13).
The edge stop removed, the boring jig can be shifted along the workpiece side. To hold the last hole and
keep the 32 mm spacing, use centering pins delivered with the basis package of boring bush FKP102. To
hold the position when boring into side, use the 5 mm diameter centering pin, when boring into surface, use
the 7 mm diameter centering pin. The procedure is the same as when boring with the edge stop, the jig position
on the workpiece is ensured by the centering pin.
The dowel and confirmate joints can be combined within one joint !!!
While boring, press the boring bush to the jig to keep the perpendicularity. You can support the boring bush
with the other hand. Always keep the drilling machine perpendicular so that the boring bush is touching FK
with its entire surface. It is better to bore holes one multiple pass. Always follow the safety instructions
for work with the drilling machine!
d=5mm
FKP101
B
A
7mm
FKP102
d=7mm
B
fig. 13
fig. 12

SAFETY AT WORK

• Always unplug the drilling machine when exchanging the dowel bit or setting the drilling machine.
• Don't touch the rotating parts when boring.
• Use hearing protectors.
• Always use a dust mask or a respirator.
• Don't wear loose clothing. Ensure that you have tucked your sleeves and that you don't wear any tie.
• Before switching the power tool on, ensure that the dowel bit is well tightened and the stop ring is secured.
• Prevent unwanted switching of the drilling machine: ensure that the switch of the drilling machine isn't
locked up in position "on" before plugging-in.
• Wait until the dowel bit is completely stopped before starting any setting of the drilling machine.
