Description of the jig FKP400, FKP656
The whole jig is composed of a duralumin corps with precise18 mm diameter and 32 mm spacings holes, of
tightening flange with tightening screws and of stops fixed at the jig edges. According to requirements, the

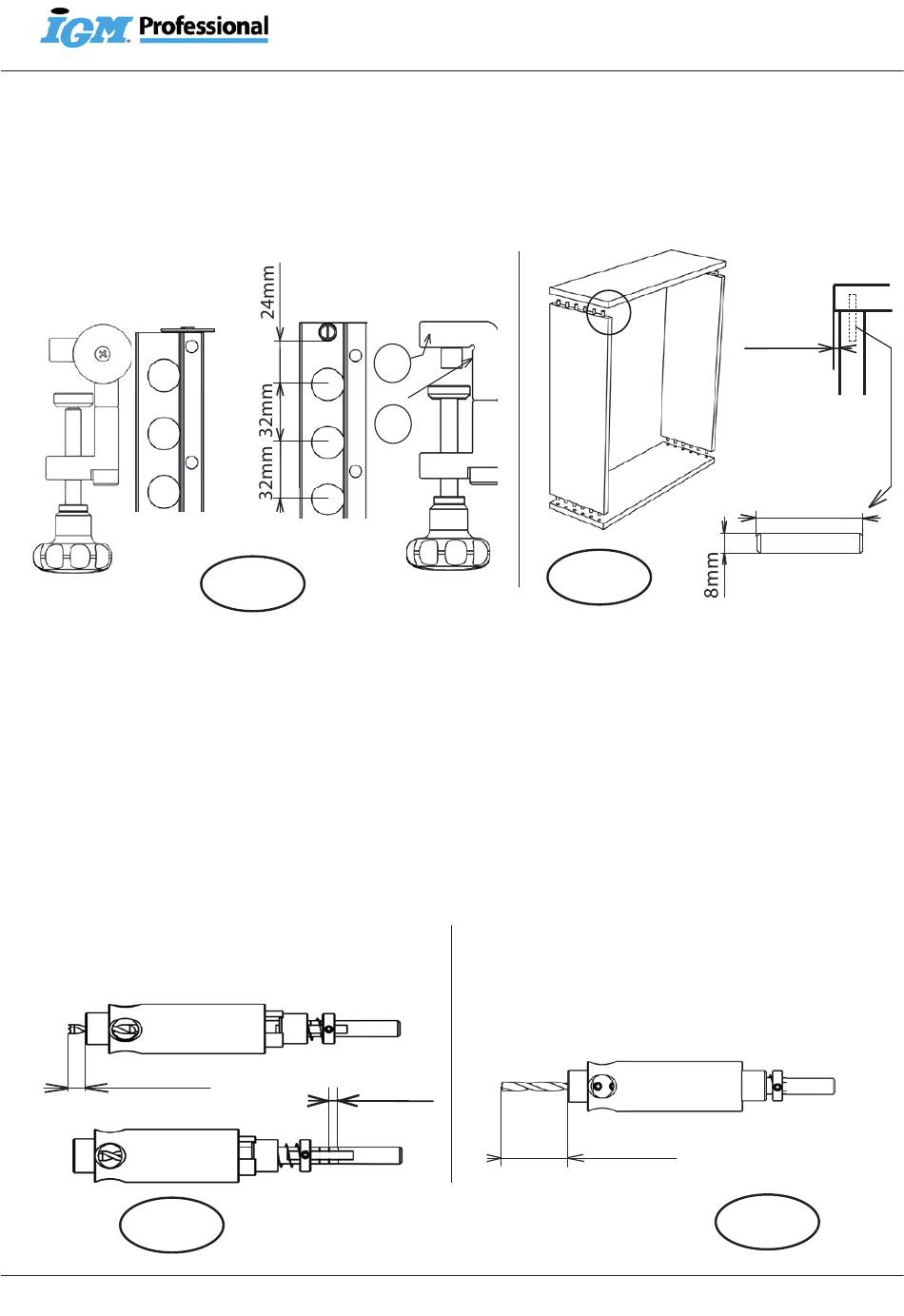

stops can be taken off. The stops are conceived so that the first dowel is placed 24 mm from the edge (fig. 1).
The version 3 contains 2 types of washers, use the one that suits you better.
A... JIG SURFACE - boring holes into the side
B... JIG SURFACE - boring holes into the surface
version 3
The boring jig is composed of two planes equipped with a line of 18 mm diameter holes. The hole lines are
shifted to each other to create a lap, so called facet of one workpiece of 0,5 mm (fig. 2). Before use, always
ensure that the stops are well tightened, that both jig planes are abutting on the workpiece and the stops are
touching the workpiece.

DESCRIPTION OF BORING BUSH FKP101, FKP102

The boring bush is composed of a duralumin centering bush and a 9 mm diameter shaft with tightening part
for dowel bits. The boring shank is seated in the centering bush bearing to provide maximal boring precision.
The tightening part is secured with a spring and a stop ring fixed by a screw. The boring depth is set by the stop
ring, for boring depth range see figure (fig. 3 & 4). The boring bush FKP101 is for simple boring depth setting
equipped with a scale with lines à 5 mm (fig. 3)
FKP101
5-30mm
5-30mm
fig. 3
