Operating instructions EN
CONTENTS
Use of FKP400, 656 jig
Description of boring bush FKP101, FKP102
Angular joint producing
Confirmate joints producing
Safety at work
Spare parts list

USE OF FKP400, 656 JIG

The FKP 400 & FKP 656 jig is designed to produce of furniture elements angular joints with dowels for board
thickness 18-45 mm or with confirmate screws of 40-50-60 mm for board thickness of 18-30 mm together with
boring bush FKP101 and FKP102 with any cordless or percussion drilling machine. The clever boring bush
conception enables the use of one boring bush with a wide range of dowel bits with various boring diameters.
The FKP400 and FKP656 jig increases the quality and precision of dowel or confirmate screw joints. The whole
system is based on the use of boring jig made from eloxed duralumin and of boring bush in which a dowel bit
with HM cutting edge is clamped. Thanks to the simple construction, maximal precision of the boring jig and
boring bush you can produce a precise dowel or confirmate screw joint. The production of one angular joint
takes about 10 - 20 minutes, depending on the joint size.

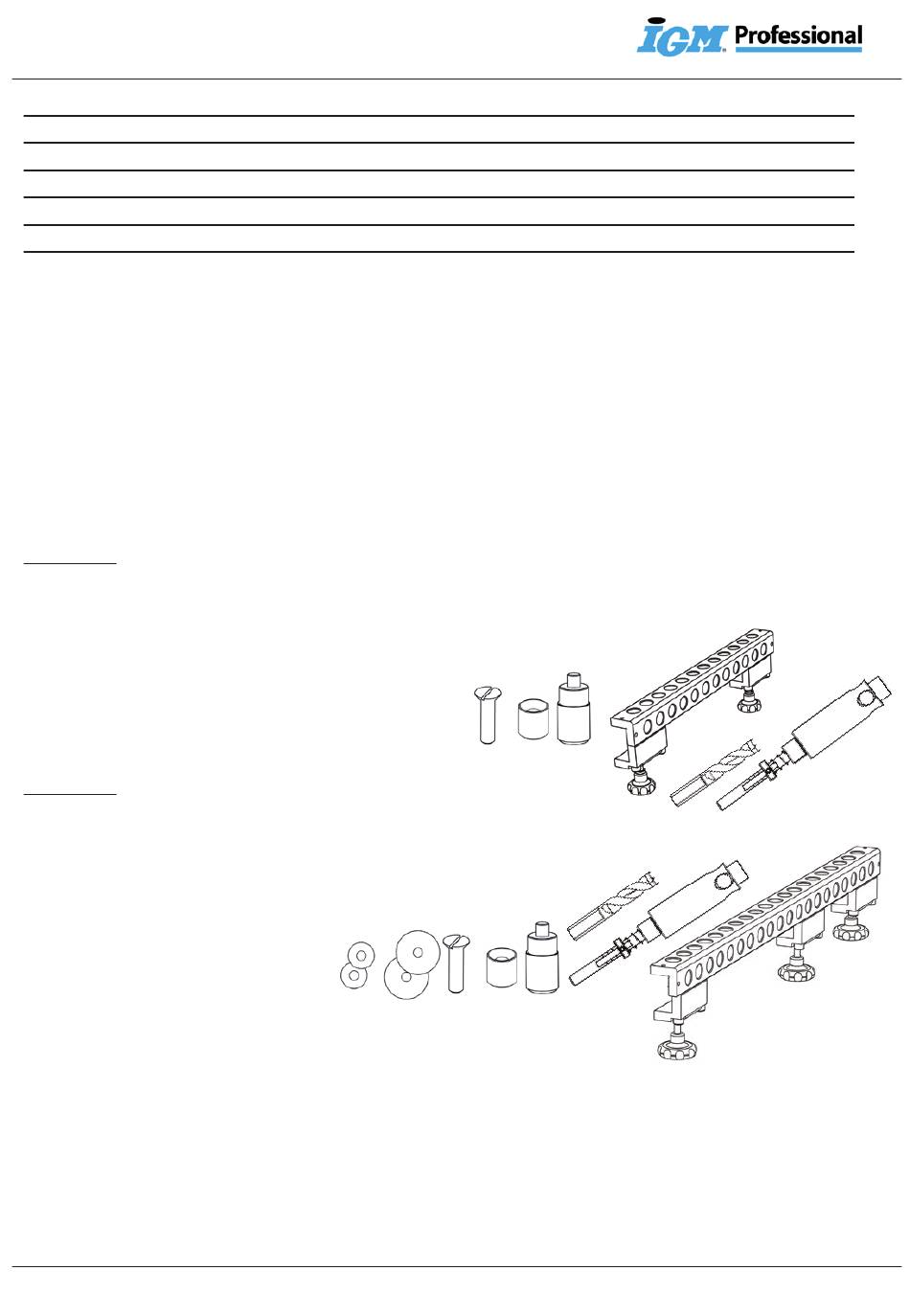

Basic accessories
FKP400-set
- The boring jig FKP400
1 pc Boring jig made of eloxed duralumin with threading for stop tightening on both sides
2 pc Steel stops D10x10
2 pc Screws M4x16
1 pc Centering pin D8
2 pc Tightening flanges
4 pc Screws M8x45
- Boring bush FKP101
- Dowel bit D8x30 mm C30608011
FKP656-set
- The boring jig FKP656
1 pc Boring jig made of eloxed duralumin with threading for stop tightening on both sides
2 pc Steel stops D10x10 (version 2)
2 pc Screws M4x16
1 pc Centering pin D8
3 pc Tightening flanges
6 pc Screws M8x45
2 pcs washers d6/30 (version 3)
2 pcs washers d6/18 (version 3)
- Boring bush FKP101
- Dowel bit D8x30 mm C30608011
Accessories required for production of confirmate and dowell joints:
- CORDLESS OR PERCUSSION DRILL
- BORING BUSH FKP 101
- BORING BUSH FKP 102 (holes for confirmate screws with length 40-50-60 mm)
- BORING BITS AND TIGHTENING SHANK S=8 MM
D 8x30 mm dowel bit HM ___C30808011__ for FKP101 (blind holes)
D 5x40 mm dowel bit HM ___C30905011__ for FKP102 (blind holes)
D 7x30 mm dowel bit HM___C36707011__ for FKP101 (through holes for confirmate screws)
2
2x 2x
2x 2x
PAGE
2
3
4
6
7
8
