Operating instructions EN

CONFIRMATE JOINTS PRODUCING

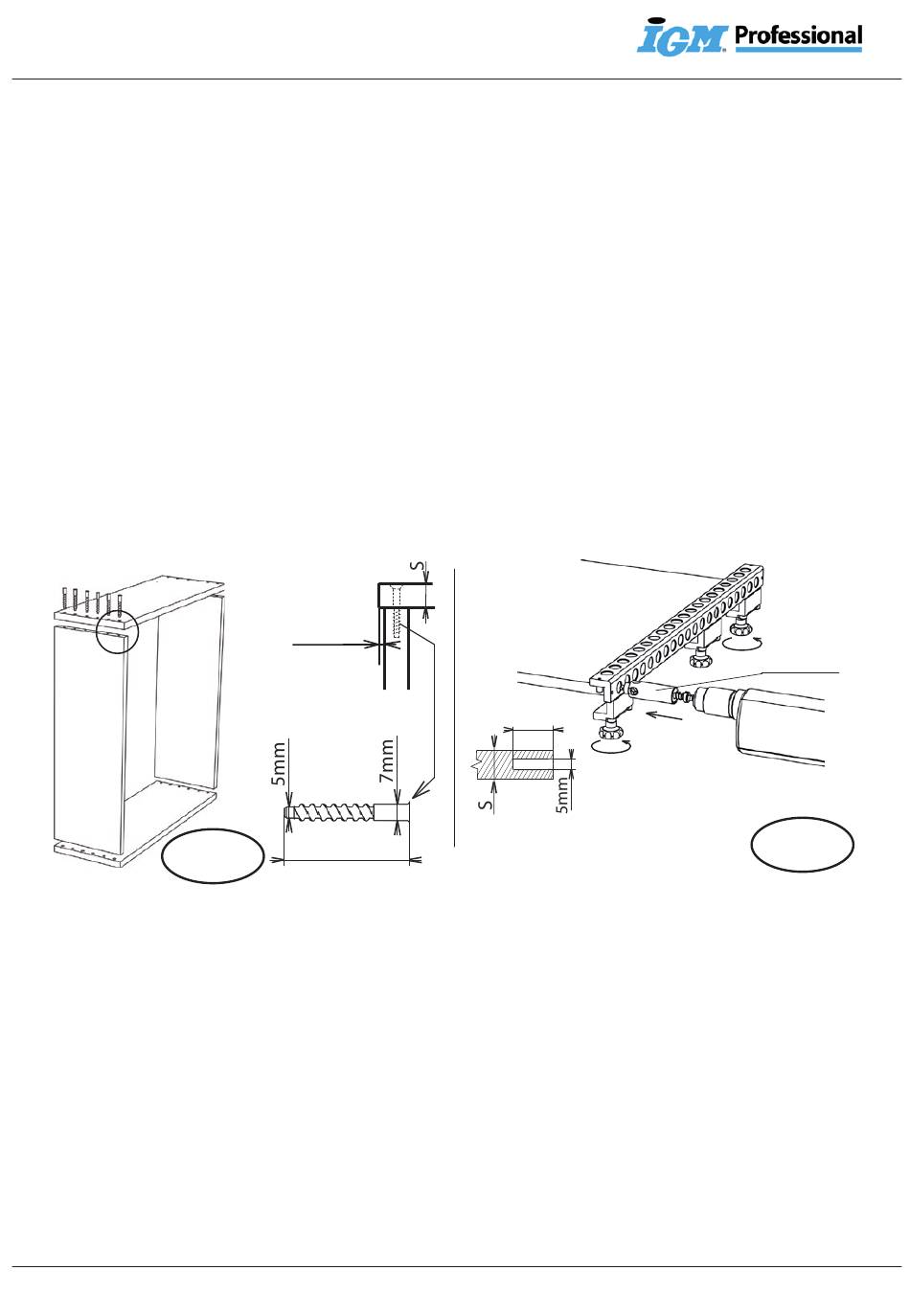

Dividing up of the cupboard elements is represented in the figure (fig. 10).
- Before boring always check whether the inner part of the jig is perfectly touching the workpiece.
-Always adjust the workpiece from the front side on and when boring hole into the side the tightening
flanges must be oriented to the reverse of the workpiece, never contrariwise!! Thus you ensure a 0,5mm
facet.
- Check the boring depth before boring.
- If the bored hole isn't clean the dowel bit must be grinded.
- If the hole isn't deep enough, set longer boring depth on the boring bush FKP101.
Boring holes into the side
At first, calculate the hole depth you need to bore into the side. To calculate it, subtract the thickness of the
material plus 2 mm reserve from the total confirmate screw length (eg.: confirmate screw 60 m - 18 mm
lamino - 2 mm reserve = boring depth 40 mm). Use the boring bush FKP102 with a dowel bit for blind holes
with 5 mm diameter and 40 mm cutting length. The boring depth range is 37 -45 mm, for boring depth setting
see Dowel joint producing. Tighten a metal stop into the hole at the jig edge. Place the FKP on the workpiece
so that the edge stop is touching the front side of the workpiece and the tightening flanges are oriented to the
reverse of the workpiece. (fig. 11).
Don't use the stop ring FKP101-8 to set the boring depth for confirmate screws!
A
0,5mm
FKP102
A
L-S+2
B
fig. 11
L=40-60mm
fig. 10
Ensure that the stop is touching the front side of the board and the inner parts of the jig are abutting on the workpiece.
Tighten the FKP by the tightening flanges. Tighten the screws by hand with optimal power – for sufficient tightening
no excessive power is needed. Set the boring depth of the boring bush. Put the boring bush with respective dowel
bit into the holes and bore confirmate holes (fig. 11). Bore rather deep holes on multiple pass, so that the cuttings
can be well evacuated. Keep the right revolutions direction - dowel bits are delivered in right-handed construction.
Boring holes into the surface
Use the boring bush FKP101 with a dowel bit for 7 mm diameter through holes! Tighten a metal stop into
the hole at the jig edge. Place the FKP on the workpiece so that the edge stop is touching the front side of the
workpiece and the surface A of the jig is oriented to the reverse of the workpiece (fig. 12).
Ensure that the stop is touching the front side of the board and the inner parts of the jig are abutting on the
workpiece. Tighten the FKP by the tightening flanges. Set the boring depth of the boring bush at maximum
possible. Put the boring bush with respective dowel bit into the holes and bore confirmate holes (fig. 12).
Bore rather deep holes on multiple pass so that the cuttings can be well evacuated. Keep the right revolutions
direction - dowel bits are delivered in right-handed construction. The hole must go though the material.
