3 - Installation

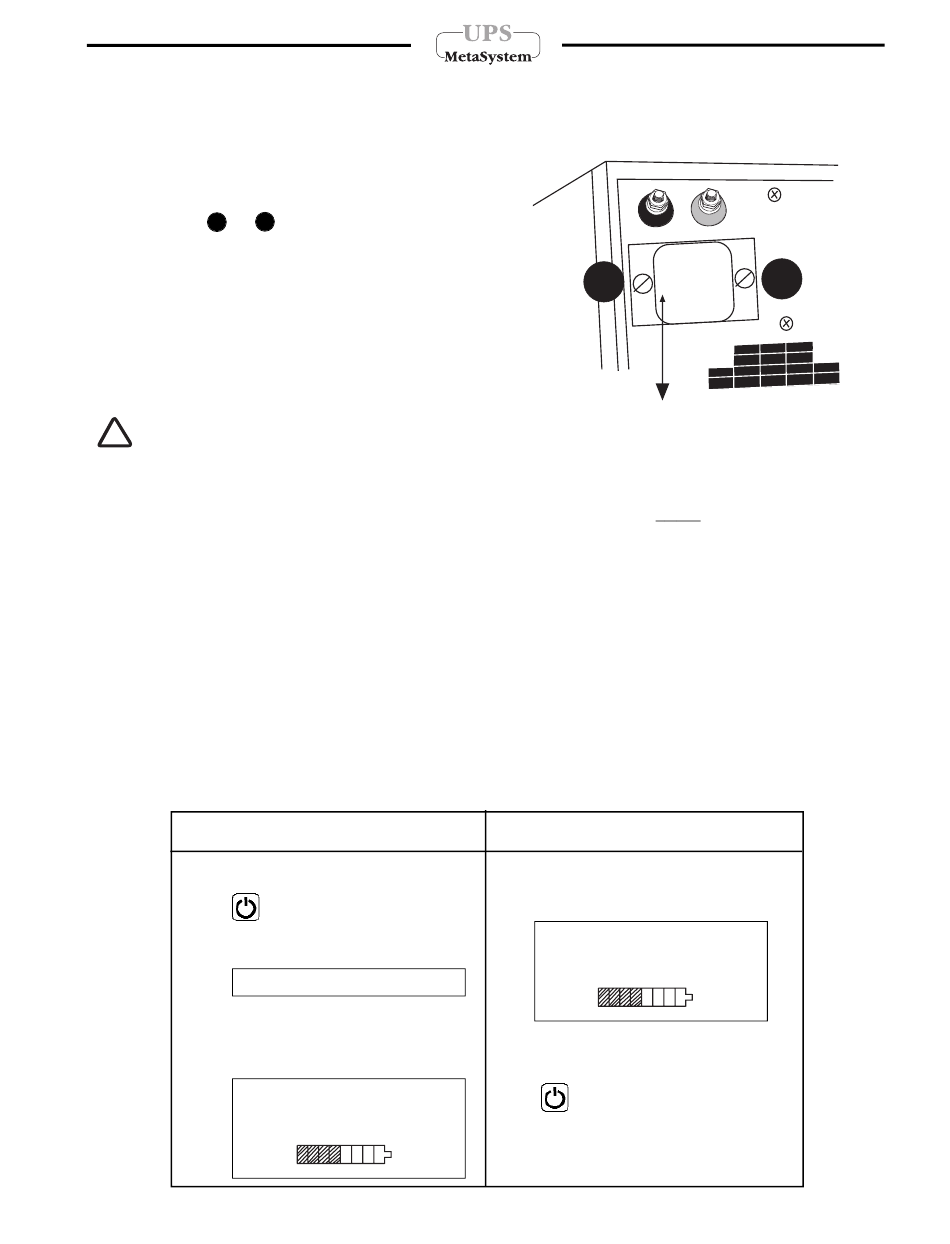

Presetting for the expansion of autonomy

Your UPS is complete with presetting for the connection of
additional battery cabinets. One or more extra battery
cabinets can be fitted to a single cabinet UPS as follows:
1.
Unscrew screws 1 and 2
2.
Slide the protective casing that the connectors located inside the
box are completely accessible.
3.
Tighten the screws to secure the metal protection.
4.
Connect the battery cabinet to the UPS using the dedicated cables.
5.
Use the plaited conductor supplied to safeguard a good contact
with earth.
ATTENTION
Make sure the UPS has been switched off and
disconnected from the mains supply before proceeding
!
with connections

Guide to using the diagnostics software

Connection
Your UPS is fitted with a standard RS232 interface, which can be used in conjunction with a computer in order to access
data relating to the operation of the UPS and its log. This function must be used together with the interface programme
for WINDOWS environments available from our website www.metasystem.it without charge. A RS232 cable is required
to connect a serial port on your PC to the interface outlet [11] located on the rear of the UPS.

Operating Procedures

Press button
The display reads
UPS switching on......
The status indicator shows the sequence
during switch on (red, yellow, green)
The display shows the operating status
(example)
UPS on Mains
IN
OUT
Batt
All manuals and user guides at all-guides.com
shown in figure 5.
Switch on
212V
230V/812W ( 31%)
32,2'
1
Procedure Operative
Switch off
During operation (example)
UPS on Mains
IN 212V
OUT 230V/812W ( 31%)
Batt
Press button for a few seconds
The acoustic warning signal sounds repeatedly
then the UPS switches off (5 seconds).
37
2
Fig. 5
32,2'
