3 - Installation

Front panel

Installation procedure for a single cabinet UPS

Electrical connections
Single Cabinet (fig. 2):
8 Input/Output connector
9 Input/Output plug
10 Input fuse
11 RS232 serial interface outlet (9-pin female)
12 Logic signals outlet ( 9-pin male)
13 Presetting for expansion of autonomy
All manuals and user guides at all-guides.com
1 Alphanumeric Display
2 ESC button / exit function / silence acoustic signal
3 Button to scroll backwards / increase value
4 Button to scroll forwards / decrease value
5 Enter button / confirm function / access menu
6 Button to switch on / switch off
7 Multicolour operating status indicator light (green / yellow / red)

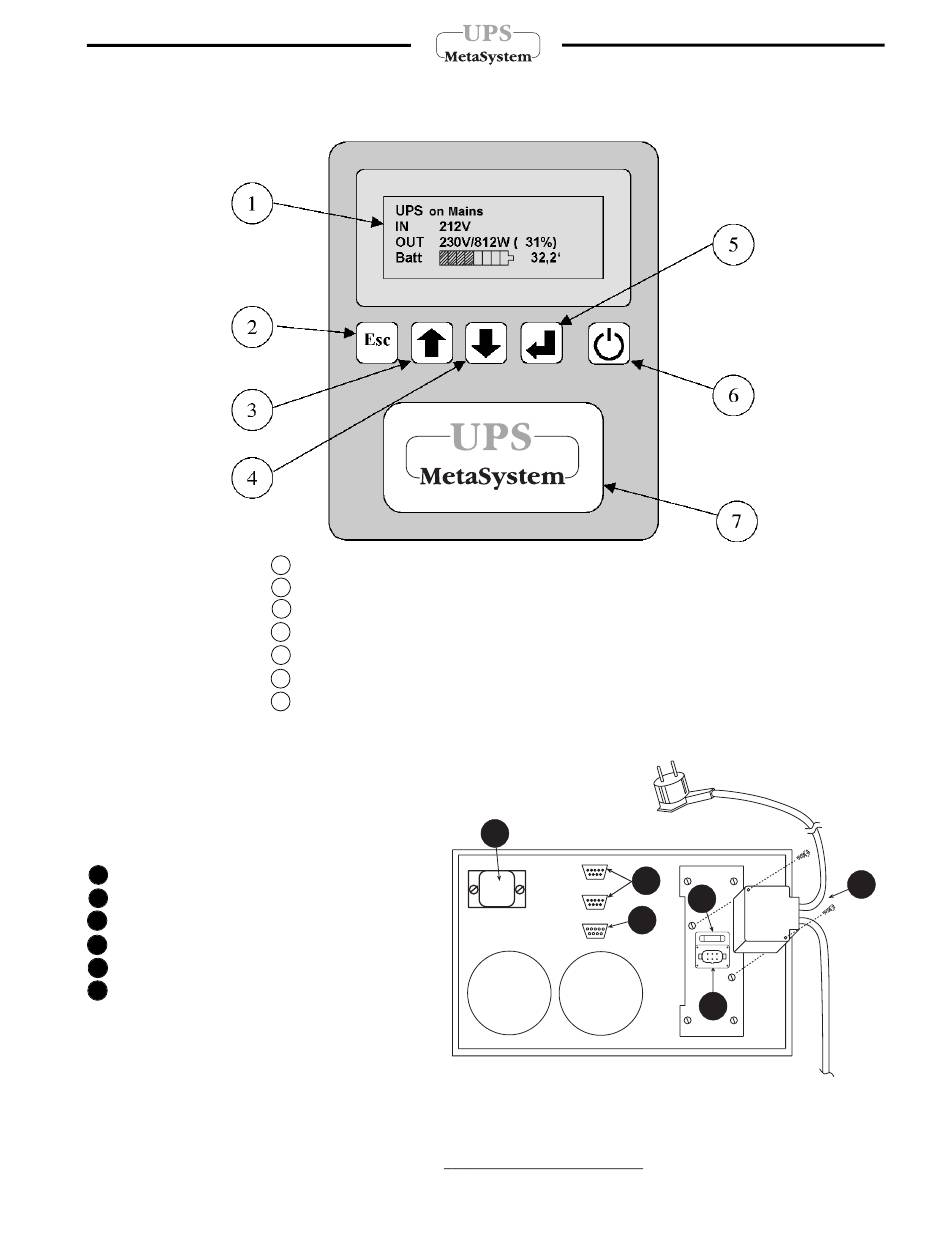

Fig. 2 Electrical Connections
To the mains
electricity
supply
13
12
11
35
8
10
9
To the loads
