2. Requirements for Operating Your Wood-Burning Stove

2.1.

External combustion air supply

Every combustion process requires oxygen. This oxygen is extracted from the environment of the heating appli-
ance.
The exterior shell of modern buildings is very dense. As a result, insufficient fresh combustion air flows in, mak-
ing an external supply of combustion air essential. This is also important if ventilation systems are used in the
house.
NOTE!: The combustion air connection is marked on the back
of the appliance with a supply air symbol.
Some appliance types may also be connected via the floor.
A pipe or hose with Ø125mm must be used to connect the external combustion air supply. The length of the
pipe should not exceed 5m. This connection pipe may contain
a maximum of three elbows.
If connected directly to the external wall, attention must be
paid to the formation of condensate and to
the provision of wind protection at the inlet.
A lack of combustion air can cause poor combustion, in-
creased soot formation and increased ash incidence.
2.2.

Connection to the chimney

The information contained in this manual is of a general na-
ture. National and European standards, local and building reg-
ulations, and fire safety provisions must also be observed and
complied with.
The stove must be connected to a flue approved by the chim-
ney sweep. Care must be taken to prevent condensation from
entering the stove.
NOTE!: The flue connection is marked with an exhaust gas
symbol on the back of the appliance
The flue pipe must be connected in line with the technical data sheet.
If you have any questions, please contact your dealer.
•
The chimney must be laid out according to the technical data of the stove (see section: Technical Data).
•
The horizontal length of the flue gas pipe should not exceed 2.5 m.
•
A maximum number of 3 x 90° elbows should not be exceeded. Each elbow should be provided with a
cleaning aperture.
•
The chimney must be resistant to condensation.
•
The chimney must provide at least 3-12 Pa draught to ensure the flue gases are sufficiently extracted,
even in the event of a power failure.
2 www.austroflamm.com
2
english

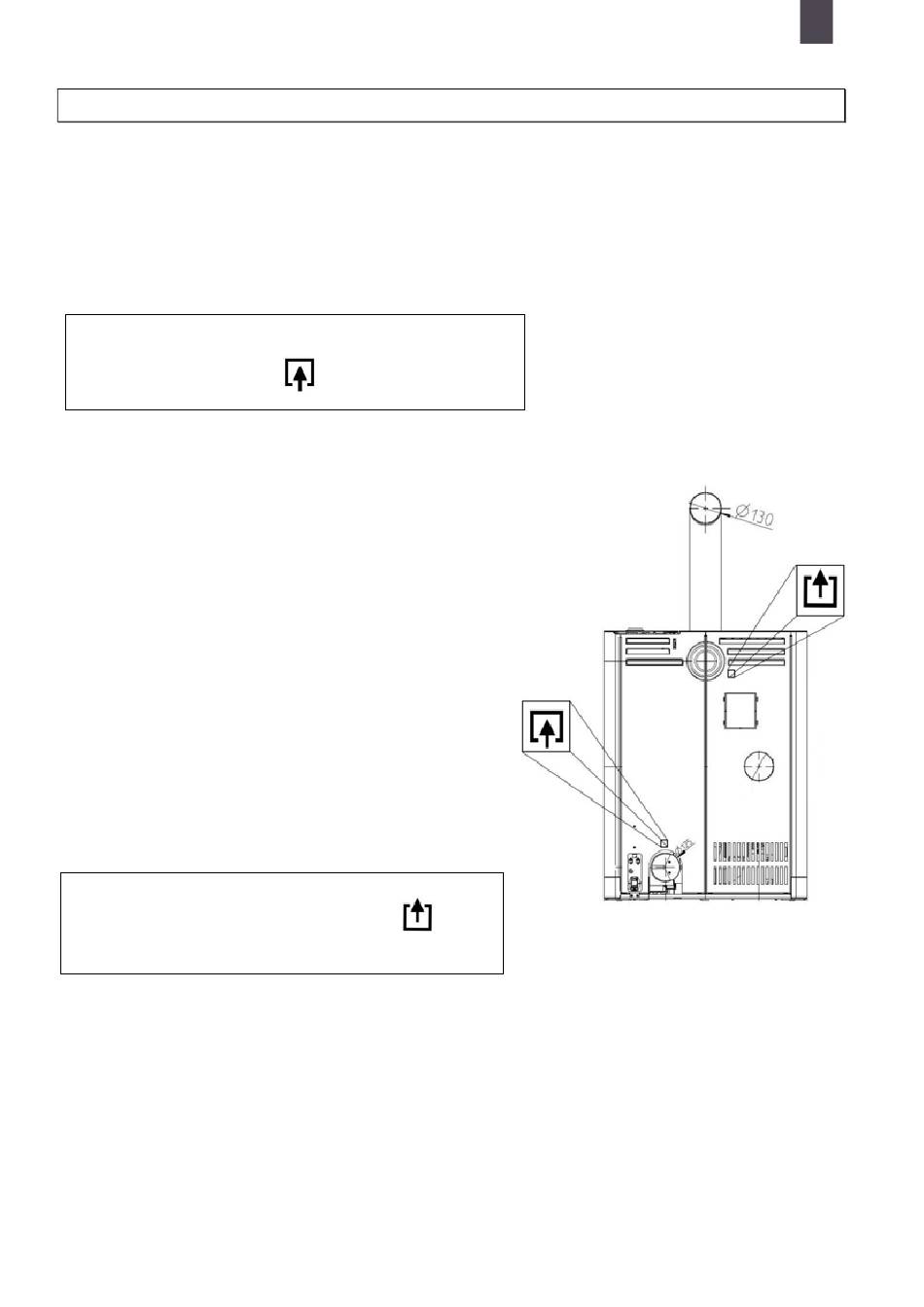

symbolic image,
