CoolFreeze
5.1

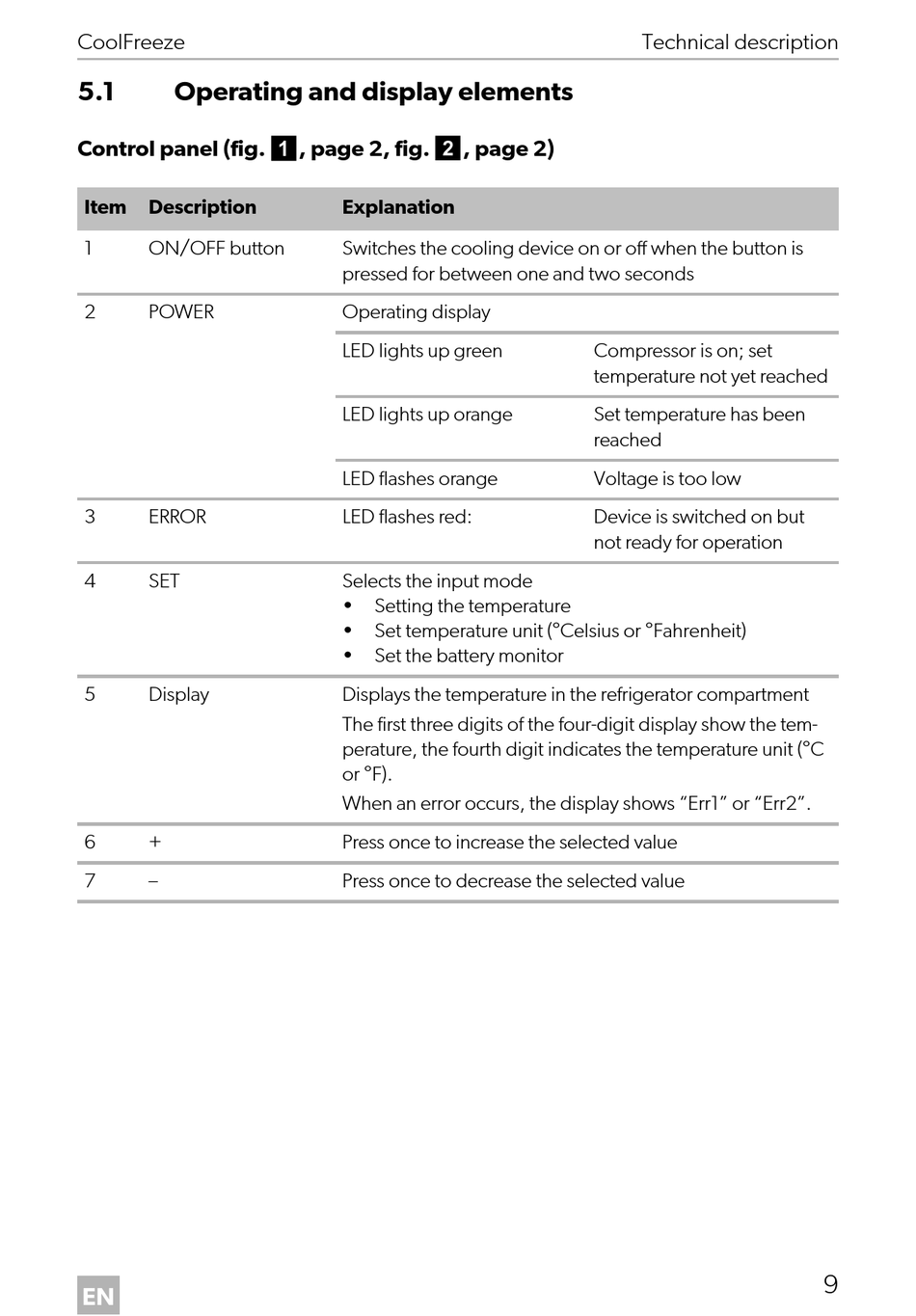

Operating and display elements

Control panel (fig. 1, page 2, fig. 2, page 2)
Item Description
1 ON/OFF button
2 POWER
3 ERROR
4 SET
5 Display
6 +
7 –
EN
Explanation
Switches the cooling device on or off when the button is
pressed for between one and two seconds
Operating display
LED lights up green
LED lights up orange
LED flashes orange
LED flashes red:
Selects the input mode
• Setting the temperature
• Set temperature unit (°Celsius or °Fahrenheit)
• Set the battery monitor
Displays the temperature in the refrigerator compartment
The first three digits of the four-digit display show the tem-
perature, the fourth digit indicates the temperature unit (°C
or °F).
When an error occurs, the display shows "Err1" or "Err2".
Press once to increase the selected value
Press once to decrease the selected value
Technical description
Compressor is on; set
temperature not yet reached
Set temperature has been
reached
Voltage is too low
Device is switched on but
not ready for operation
9
