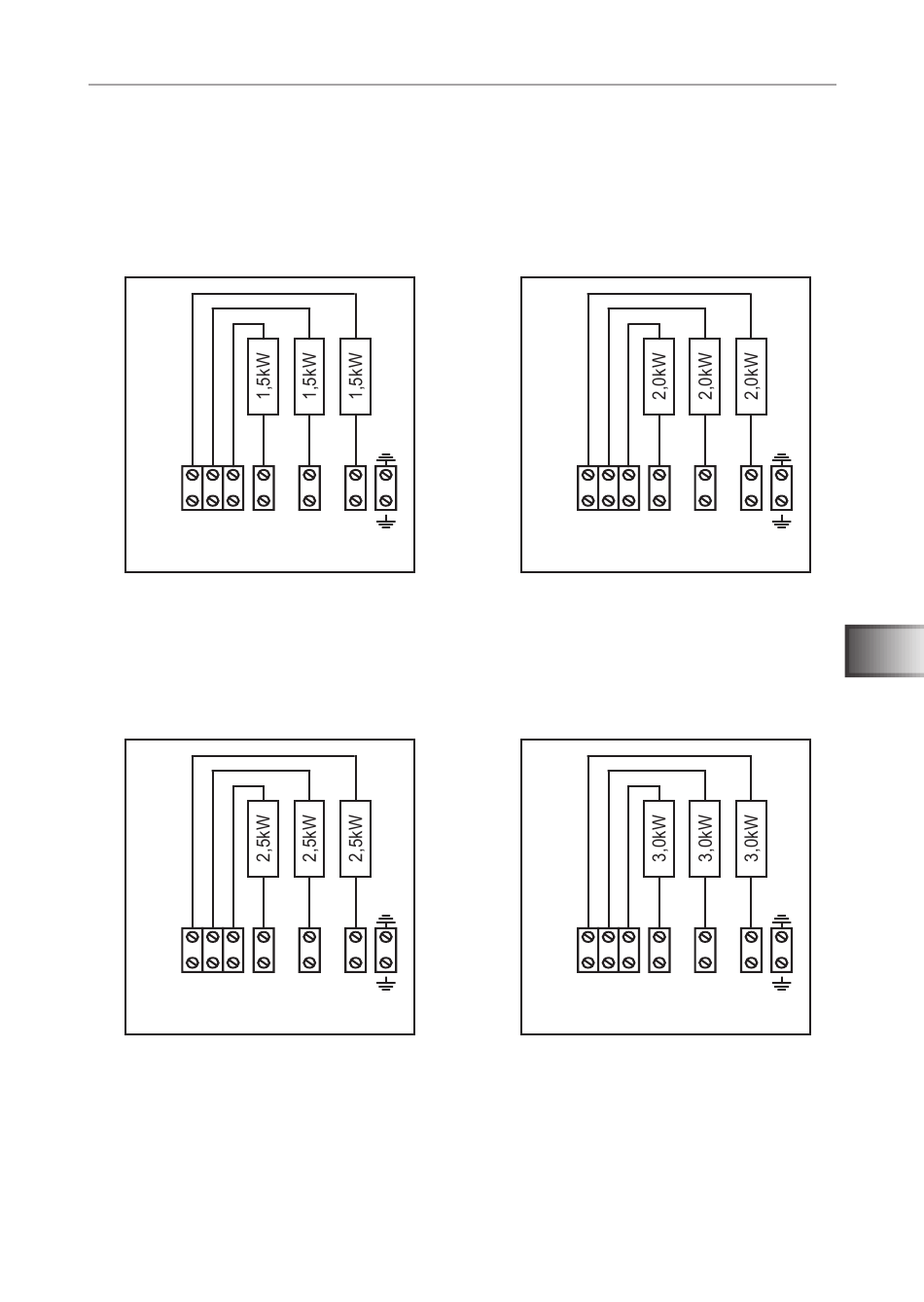

4.7. Wiring diagrams

HC4-FIN-45
4.5 kW
U V W N
to the control unit
HC4-FIN-75
7.5 kW
U V W N
to the control unit
N N
W V U
N N
W V U
p. 17/26
HC4-FIN-60
6.0 kW
U V W N N N
W V U
to the control unit
HC4-FIN-90
9.0 kW
U V W N N N
W V U
to the control unit
