Garbin 25GE VAP Installationsanleitungen Seite 40

36

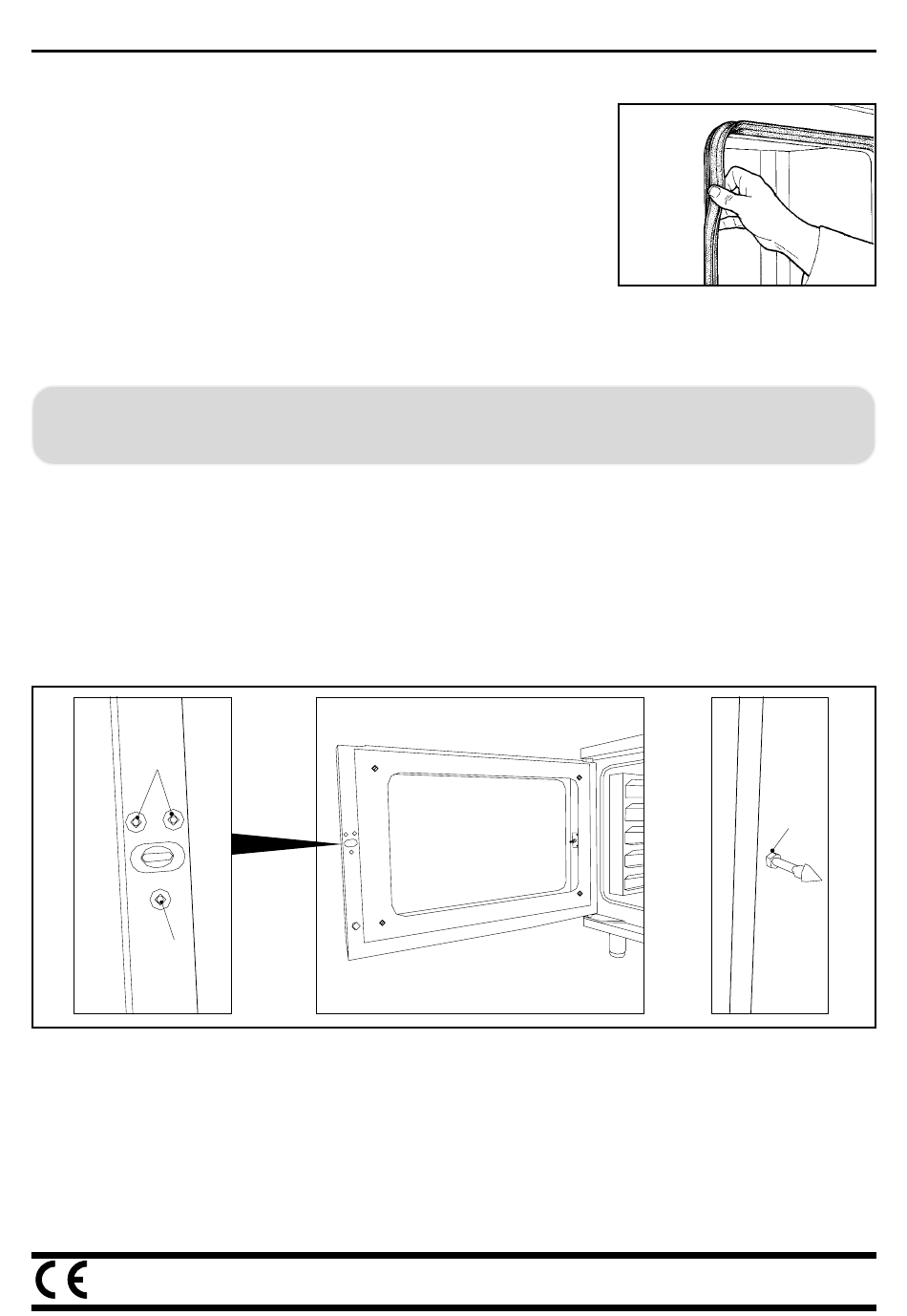

2.9.3 - Door seal
• The seal is pressed into place, therefore it must be pulled out and
pressed back into place. This operation must be done by hand so
as not to damage the seal.
2.9.4 - Fan and motor
• From inside the oven, remove the motor protection, unscrew the
unit that releases the fan, remove the fan after taking off the panel
on the left-hand side of the oven.
2.9.5 - Handle and hook
Proceed as follows:
1) Open the oven door
2) Unscrew the screws (A - pict. 11).
3) Replace and reassemble everything in reverse order.
4) If necessary, turn the nut (B - pict. 11) of the hook in a clockwise or anti-clockwise direction to adjust the
proper closing of the handle, ensuring that the tip of the hook is facing in the right direction.
A
A
2.9.6 Cooking chamber resistors
1) Work from the right-hand side of the oven to disconnect the electrical connections from the resistors.
2) Remove the grill supports and the conveyor in order to access the chamber resistors.
3) Unscrew the screws that secure the resistor flange to the chamber.
4) Replace the resistors and put everything back in position in reverse order, remembering to replace the
silicone where present (use silicone which can resist temperatures of 300 °C).
Do not damage the fan while removing or assembling it.
ELECTRIC VENTILATED OVENS
CAUTION!
pict. 11
pict. 10
B
GB
