Product and function descriptions,
Control panel
Functions
Cooling circuit dia-
gram
6

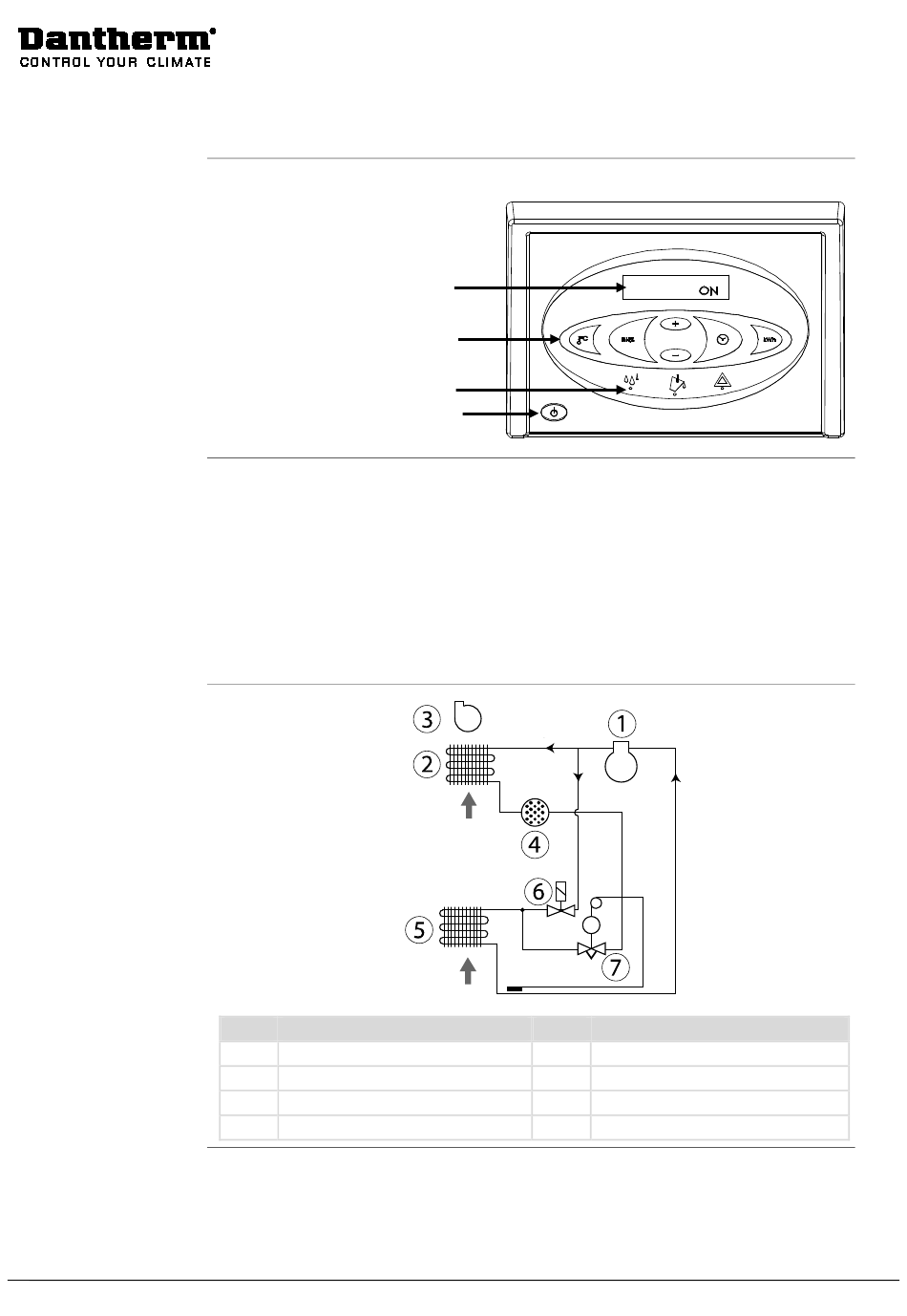

Illustration of control panel:
Function keys
Status indicators
Main switch
Main functions:
Manual or auto operation (built-in adjustable hygrostat).
•
External hygrostat socket.
•
Display of temperature, relative air humidity, hours and kWh consumption.
•
Hour counter and kWh consumed without 230V connection.
•
Adjustable service interval counter.
•
Operation described in the user guide in this manual.
Pos. Description
1 Compressor
2 Condenser
3 Fan
4 Dry filter
cont.
Display
Pos.
5
6
7
TC
Description
Evaporator
Solenoid valve
Thermostatic expansion valve
