On the device are only few of them serviceable components. It is not nec-
essary to dismantle the machine. Repairs must only be performed by an
expert!
Accessories:
If you have any questions or problems, contact our customer service.

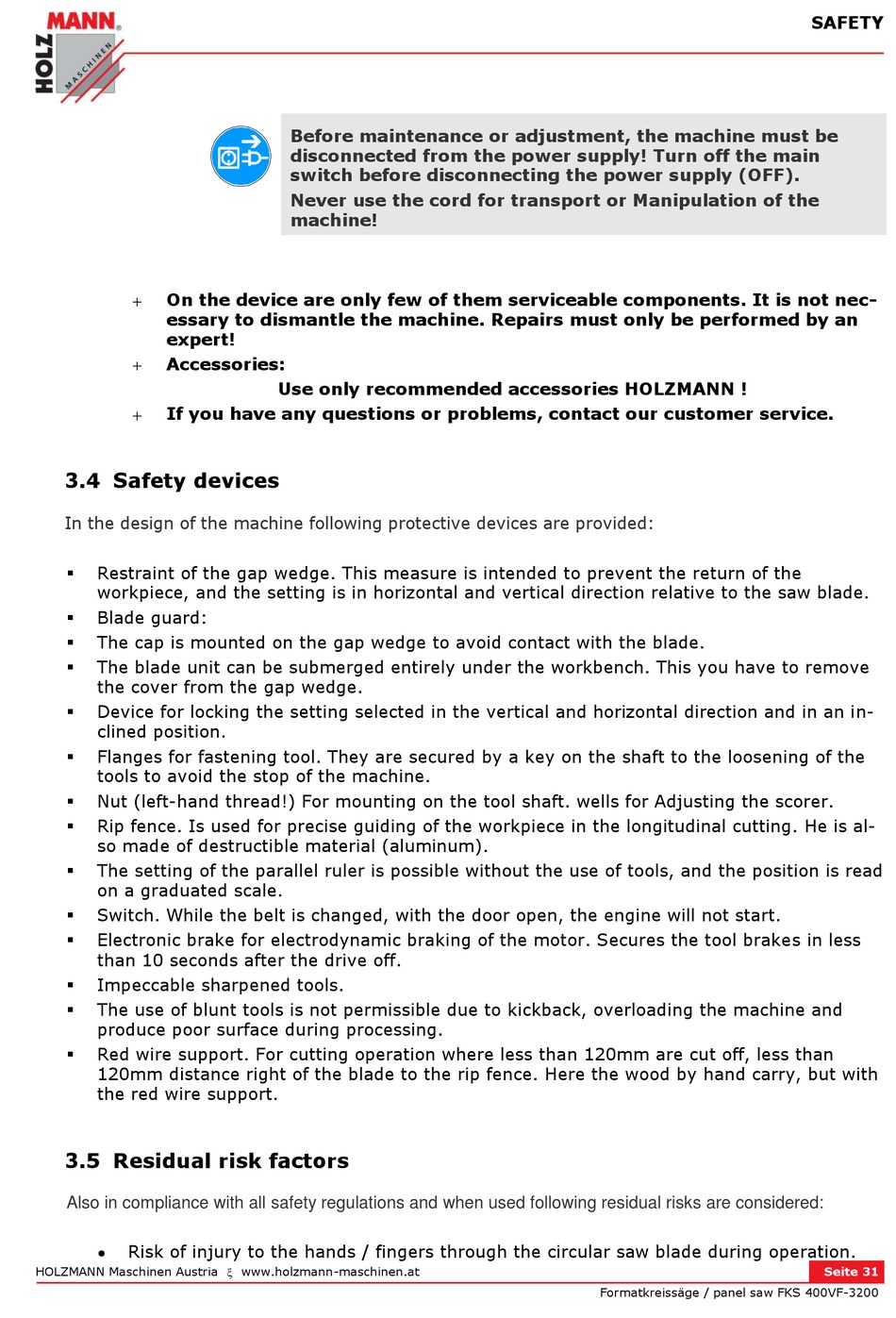

3.4 Safety devices

In the design of the machine following protective devices are provided:
Restraint of the gap wedge. This measure is intended to prevent the return of the

workpiece, and the setting is in horizontal and vertical direction relative to the saw blade.
Blade guard:

The cap is mounted on the gap wedge to avoid contact with the blade.

The blade unit can be submerged entirely under the workbench. This you have to remove

the cover from the gap wedge.
Device for locking the setting selected in the vertical and horizontal direction and in an in-

clined position.
Flanges for fastening tool. They are secured by a key on the shaft to the loosening of the

tools to avoid the stop of the machine.
Nut (left-hand thread!) For mounting on the tool shaft. wells for Adjusting the scorer.

Rip fence. Is used for precise guiding of the workpiece in the longitudinal cutting. He is al-

so made of destructible material (aluminum).
The setting of the parallel ruler is possible without the use of tools, and the position is read

on a graduated scale.
Switch. While the belt is changed, with the door open, the engine will not start.

Electronic brake for electrodynamic braking of the motor. Secures the tool brakes in less

than 10 seconds after the drive off.
Impeccable sharpened tools.

The use of blunt tools is not permissible due to kickback, overloading the machine and

produce poor surface during processing.
Red wire support. For cutting operation where less than 120mm are cut off, less than

120mm distance right of the blade to the rip fence. Here the wood by hand carry, but with
the red wire support.

3.5 Residual risk factors

Also in compliance with all safety regulations and when used following residual risks are considered:
Risk of injury to the hands / fingers through the circular saw blade during operation.
HOLZMANN Maschinen Austria
Before maintenance or adjustment, the machine must be
disconnected from the power supply! Turn off the main
switch before disconnecting the power supply (OFF).
Never use the cord for transport or Manipulation of the
machine!
Use only recommended accessories HOLZMANN !
www.holzmann-maschinen.at
Formatkreissäge / panel saw FKS 400VF-3200
SAFETY
Seite 31
