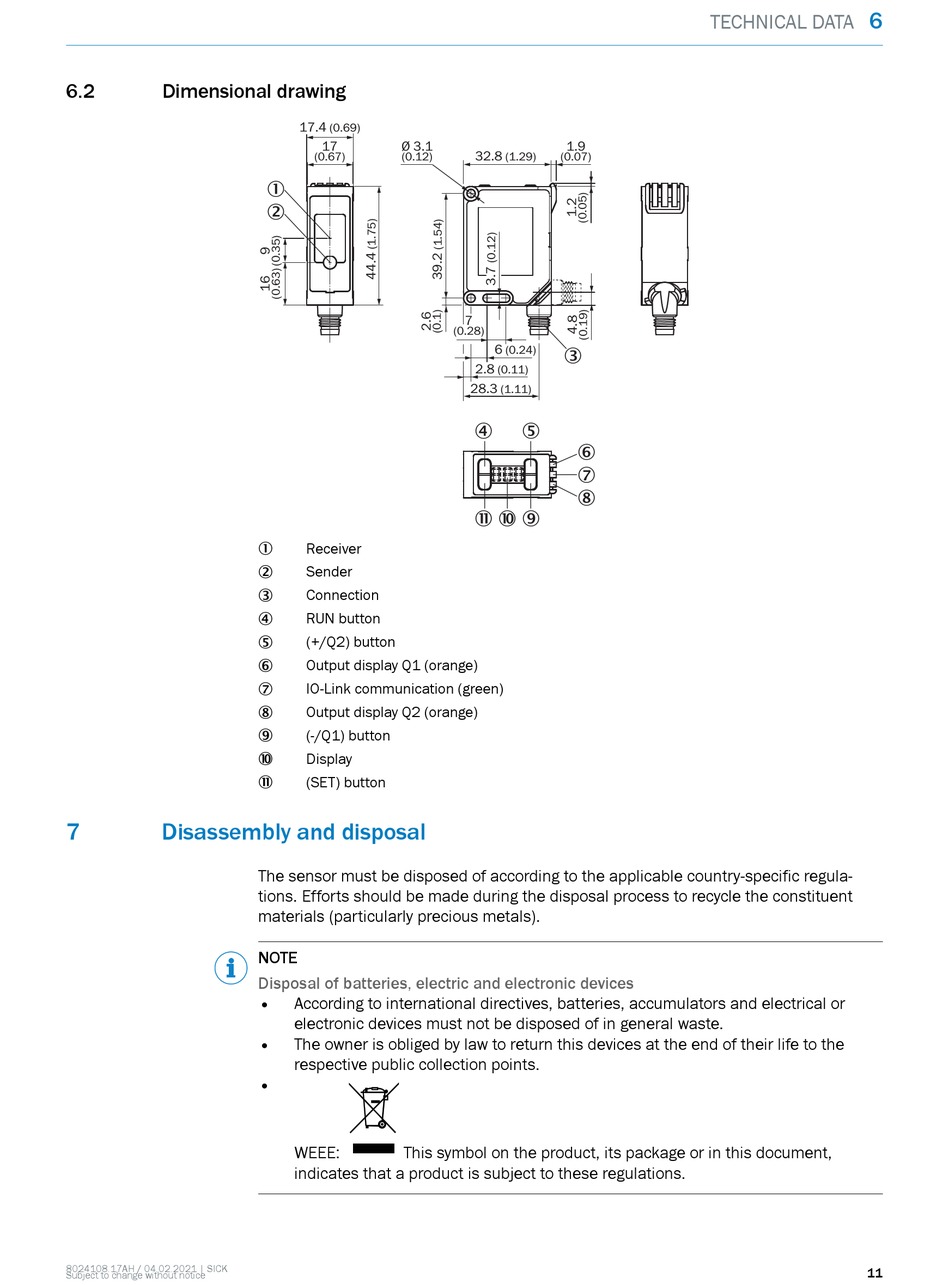

6.2

Dimensional drawing

7

Disassembly and disposal

8024108.17AH / 04.02.2021 | SICK
Subject to change without notice
17.4
(0.69)
17 Ø 3.1
(0.67) (0.12)
1
2
Receiver
1
Sender
2
Connection
3
RUN button
4
(+/Q2) button
5
Output display Q1 (orange)
6
IO-Link communication (green)
7
Output display Q2 (orange)
8
(-/Q1) button
9
Display
ß
(SET) button
à
The sensor must be disposed of according to the applicable country-specific regula‐
tions. Efforts should be made during the disposal process to recycle the constituent
materials (particularly precious metals).
NOTE
Disposal of batteries, electric and electronic devices
•
According to international directives, batteries, accumulators and electrical or
electronic devices must not be disposed of in general waste.
• The owner is obliged by law to return this devices at the end of their life to the
respective public collection points.
•
WEEE: This symbol on the product, its package or in this document,
indicates that a product is subject to these regulations.
1.9
32.8
(1.29) (0.07)
7
(0.28)
6
(0.24)
3
2.8
(0.11)
28.3
(1.11)
4 5
6
7
8
à ß 9
6
