AXIS Q1602-E/AXIS Q1604-E Installation Guide
Downloaded from www.Manualslib.com manuals search engine
Product number (P/N) & Serial number (S/N).
The serial number may be required
during the installation.

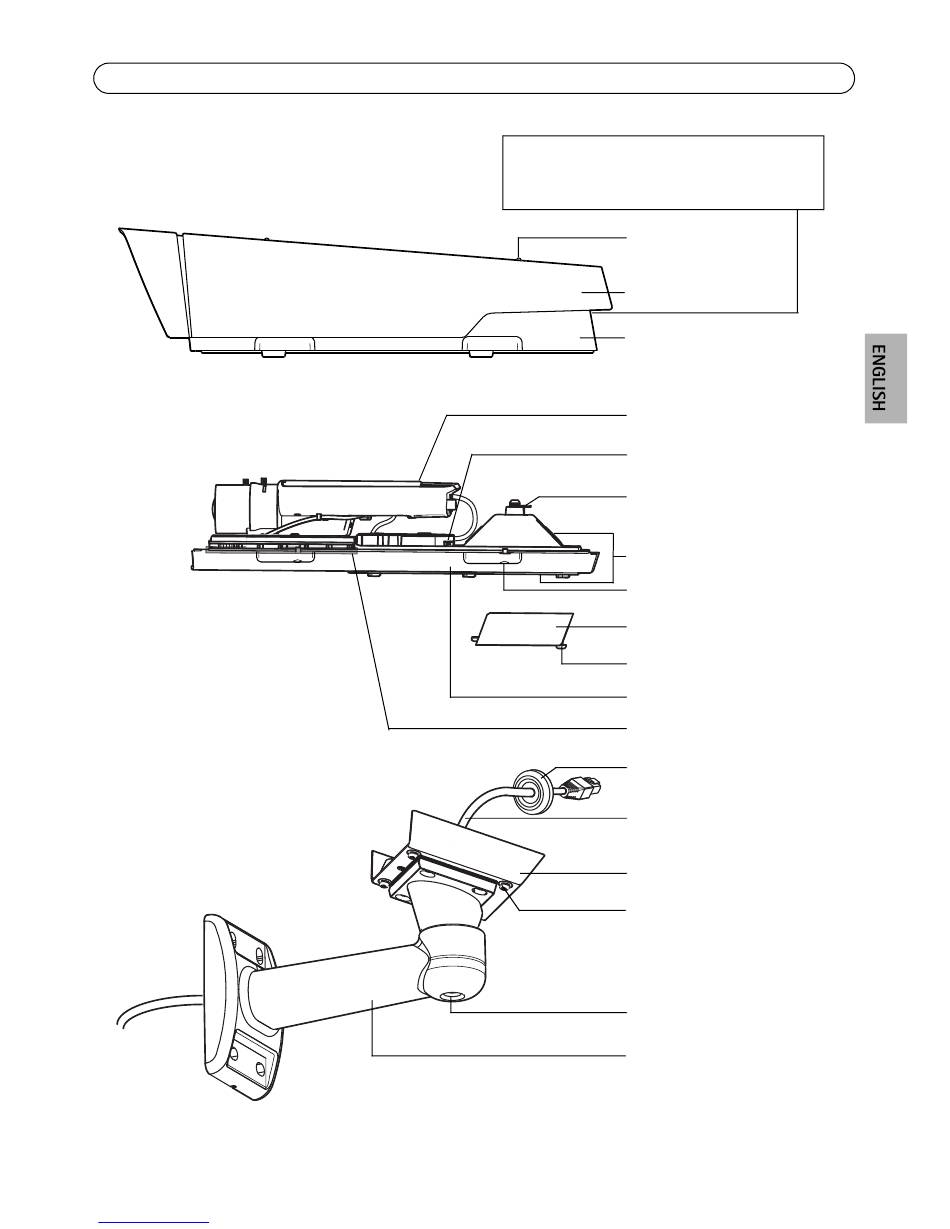

Sunshield adjustment
screw (2x)
Sunshield
Top cover
Network camera
Network connector
Safety wire tab
Cable holes
Bottom cover screws (4x)
Cable cover
Cable cover screws (2x)
Bottom cover
Heaters
Gasket
Network cable (route
through wall bracket)
Bracket adapter
Bracket screws (4x)
Bracket adjustment screw
Wall bracket
Page 7
!
Caution
May be hot
