Structure
3.2 Structure of the Multiline 1000 S
11
9
10

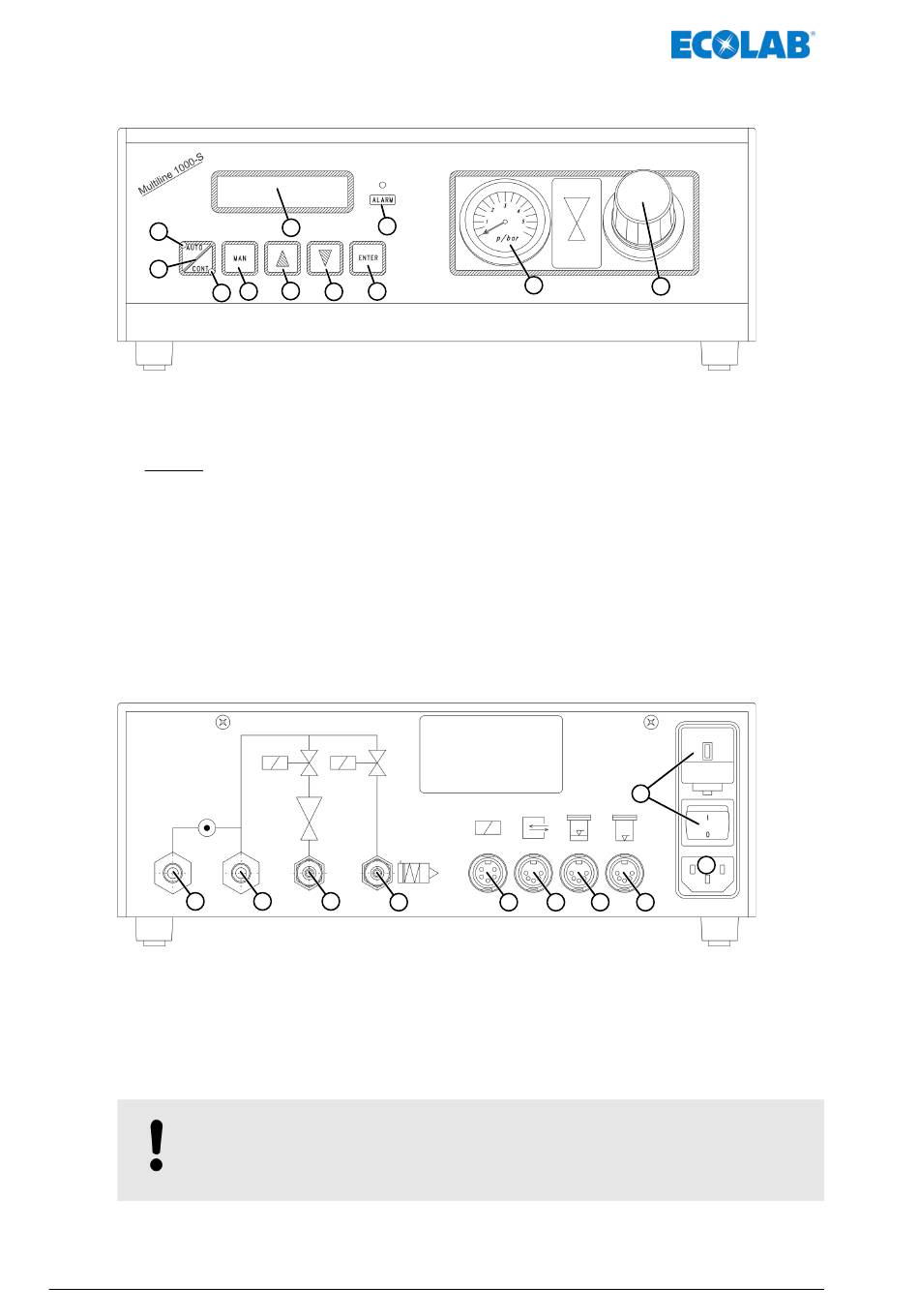

Fig. 2: Front view
1 Liquid Crystal display
2 'Alarm' display (red)
Function:
Flashes, if fault is present or empty signal has been
activated. Further details in display
3 Pressure gauge:
Indicates spray air pressure
4 Pressure controller:
Setting spraying air pressure
5 'ENTER' acknowledge/cancel button:
Confirm parameters set or to interrupt application
6 'Down' setting button
Adjust application time or set parameters
7 'Up' setting button
1
Fig. 3: Rear view
1 Compressed air inlet
1a Compressed air outlet (pressure vessel)
2 Spray air outlet
3 Valve control pressure
4 External spray air valve
NOTICE!
Please consult our Service department in advance if you wish to use the
control connection (instrument air) for an external spray air valve.
417102603 Rev. 1-02.2020
2
1
8 7 5
6
1a 2 3
3
Adjust application time or set parameters
8 'MAN' button for manual mode of operation:
Manual mode is activated
9 'AUTO/CONT' button for toggling between
continuous and automatic mode:
Switch between automatic / continuous modes.
The relevant LED lights up
10 'CONT' LED indicating 'Continuous operation'
(green):
Device in continuous mode
11 'AUTO' LED indicating 'Automatic operation'
(green):
Device in automatic mode
4 5 6
5 Start signal connection
6 Reserve signal connection
7 Empty signal connection
8 Power plug connection
9 Power switch with voltage selection element and fuse
8
4
9
8
7
