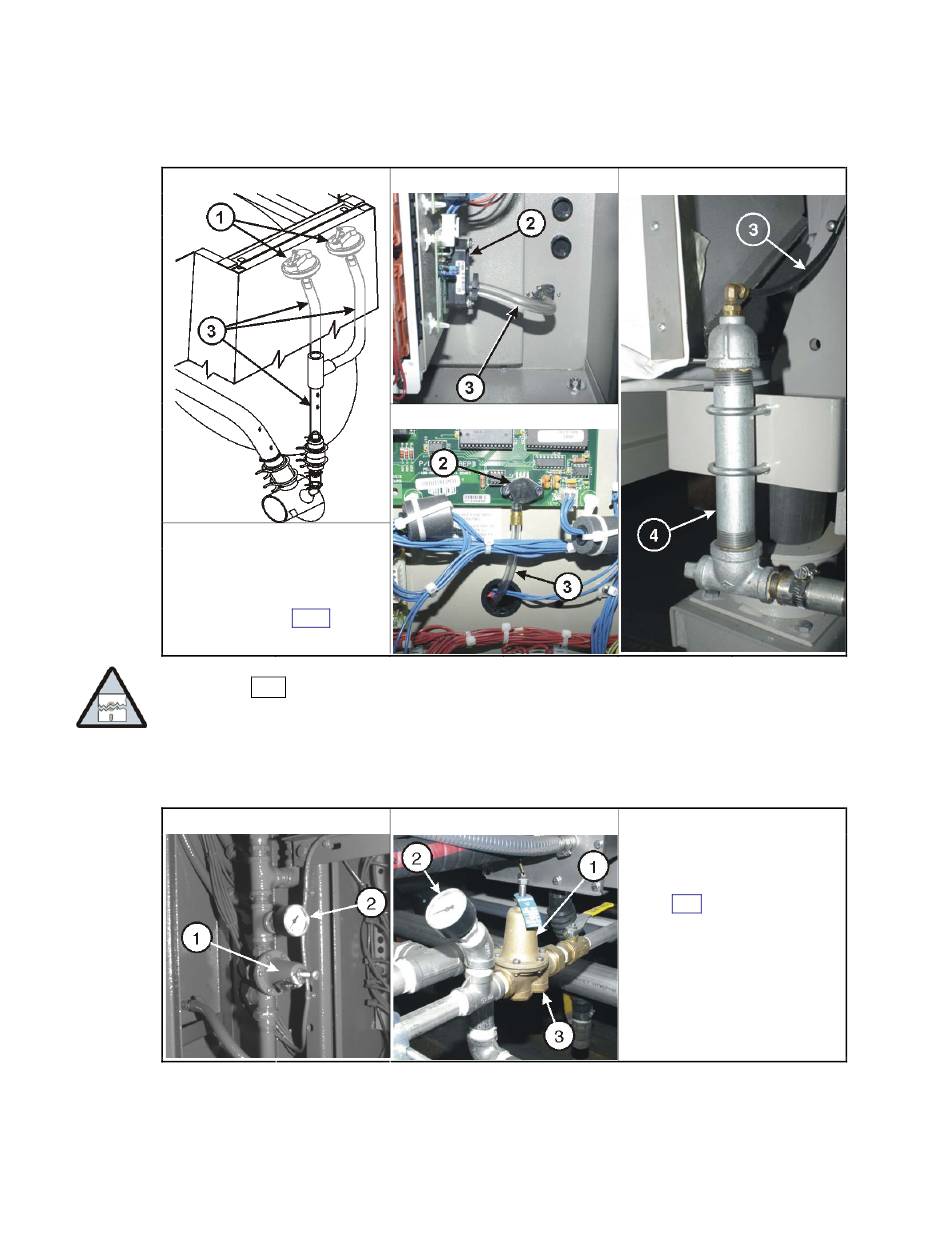

Figure 10: Air Tube for the Water Level Sensor. These are examples. Your machine can look
different.
30022T5E Washer-extractor
Legend
1. Level switches
2. Pressure transducer
caution
3. Air tube. See
statement 25
.
4. Air chamber
.
CAUTION 25 : Risk of malfunction—The level sensor must give correct data.
• Keep the connecting tube or hose free of blockages and leaks.
• Make sure that the connections are tight.
Figure 11: Water Pressure Regulator for Chemical Flush. These are examples. Your machine can

look different.

64050E6N Washer-extractor
.
42044SP2 Washer-extractor
30022V6J Washer-extractor
76039CBW Tunnel Washer
33
Chapter 3. Routine Maintenance
36030F8_ Washer-extractor
Legend
1. Water pressure regulator
2. Water pressure gauge
caution statement
3. See
27
. Remove plug to
remove strainer.
