Montagewinkel / Mounting bracket
4.2

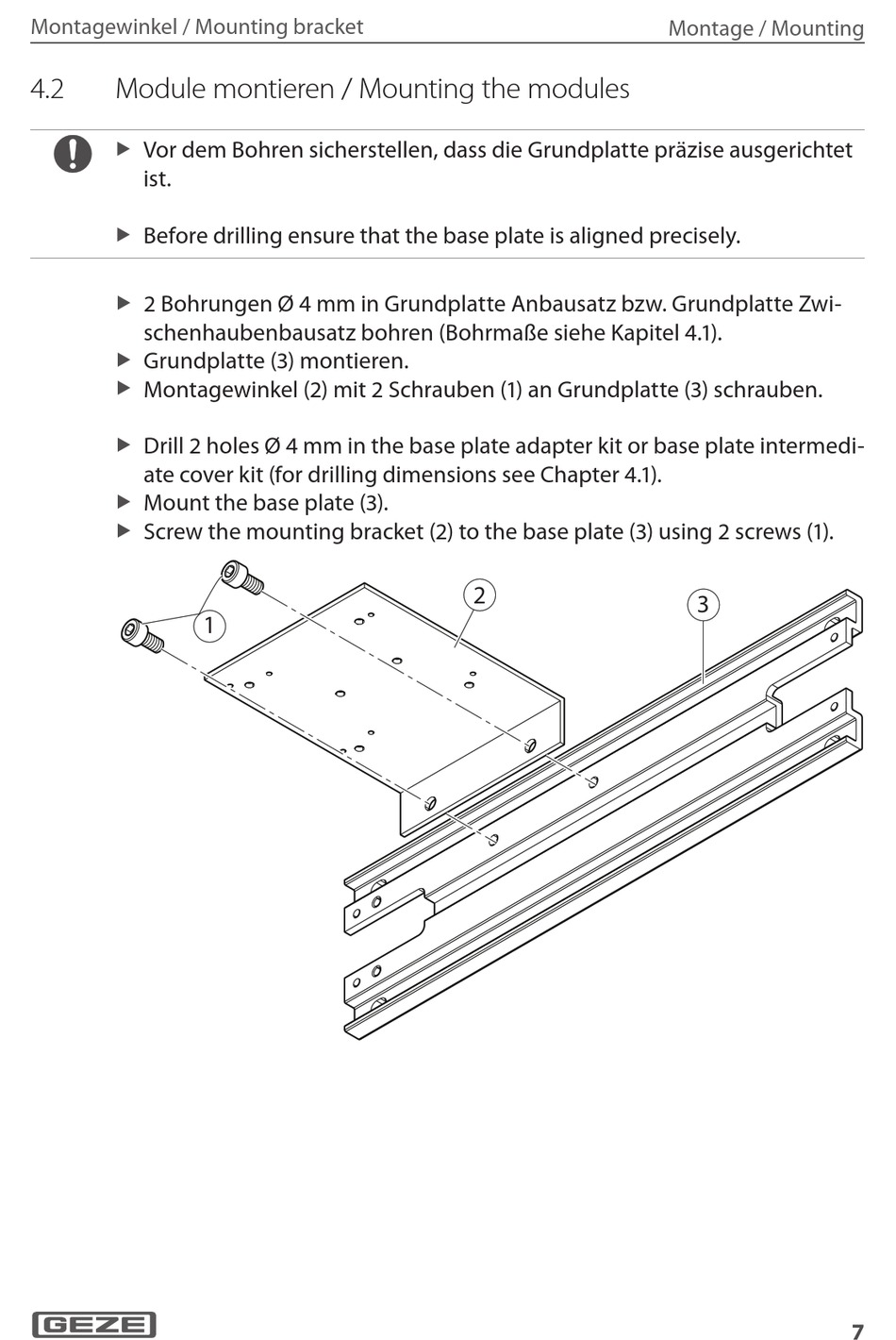

Module montieren / Mounting the modules
Vor dem Bohren sicherstellen, dass die Grundplatte präzise ausgerichtet
X
ist.
Before drilling ensure that the base plate is aligned precisely.
X
2 Bohrungen Ø 4 mm in Grundplatte Anbausatz bzw. Grundplatte Zwi-
X
schenhaubenbausatz bohren (Bohrmaße siehe Kapitel 4.1).
Grundplatte (3) montieren.
X
Montagewinkel (2) mit 2 Schrauben (1) an Grundplatte (3) schrauben.
X
Drill 2 holes Ø 4 mm in the base plate adapter kit or base plate intermedi-
X
ate cover kit (for drilling dimensions see Chapter 4.1).
Mount the base plate (3).
X
Screw the mounting bracket (2) to the base plate (3) using 2 screws (1).
X
�
�
Montage / Mounting
�
7
