Symbole und Darstellungsmittel / Montagewinkel / Mounting bracket Symbols and means of representation Inhaltsverzeichnis / Contents Symbole und Darstellungsmittel / Symbols and means of representation ..................2 Funktion / Function ................3 Mögliche Kombinationen und Bohrungsabstände / Possible combinations and hole distances ........4 Montage / Mounting ................6 Bohrmaße / Drilling dimensions ..................6 Module montieren / Mounting the modules ............7...

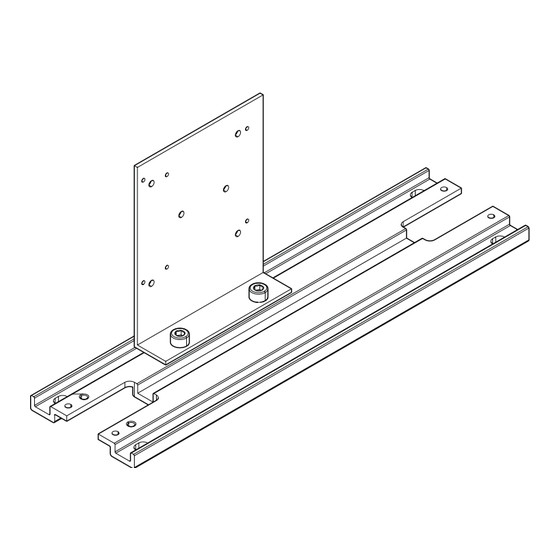

* nur in Verbindung mit MST 210 (zusätzlicher Montagewinkel erforderlich) The mounting bracket is used to fasten modules of the GEZE safety tech- nology in the adapter kit or the intermediate cover kit of the EMD or the TSA160 NT.
Mögliche Kombinationen und Bohrungsabstände / Possible combinations and hole distances Montagewinkel / Mounting bracket Mögliche Kombinationen und Bohrungsabstände / Possible combinations and hole distances EMD TSA 160 NT ( ) = TSA 160 NT = beim Nachrüsten bestehender TSA160NT Anlagen sind diese �����...
Seite 5
Mögliche Kombinationen und Bohrungsabstände / Montagewinkel / Mounting bracket Possible combinations and hole distances EMD TSA 160 NT nein �������������������������� ����� ���������� ������ ���� ����������������������� ���������� nein integrierter Rauchschalter MU524 (nur EMD) MST212 MDU200 etc. integrated smoke switch (only EMD) 230 mm min.
Montage / Mounting 4. 1 Bohrmaße / Drilling dimensions Weitere Maße siehe Kapitel 3. For further dimensions see Chapter 3. Grundplatte EMD / Base plate EMD ����� ����� Grundplatte TSA 160 NT / Base plate TSA 160 NT ������� �����...
Montagewinkel / Mounting bracket Montage / Mounting Module montieren / Mounting the modules Vor dem Bohren sicherstellen, dass die Grundplatte präzise ausgerichtet ist. Before drilling ensure that the base plate is aligned precisely. 2 Bohrungen Ø 4 mm in Grundplatte Anbausatz bzw. Grundplatte Zwi- schenhaubenbausatz bohren (Bohrmaße siehe Kapitel 4.1).
Seite 8
Montage / Mounting Montagewinkel / Mounting bracket Abstandshalter (4) je nach Modul (siehe Kapitel 5 Positi ) in die Montageplatte drehen. Turn spacers (4) depending on the module (see Chapter 5 Positi ) into the mounting panel. � � Platinenbohrung aufbohren / Drilling out the circuit board hole Bei folgenden Modulen müssen die Platinenbohrungen auf Ø...
Seite 9
Montagewinkel / Mounting bracket Montage / Mounting Modul (5 Positi ) auf die Abstandshalter klipsen. Clip the module (5 Positi ) onto the spacers. � Beispiel in Abb.: Single Door Unit GCDU 100 / Example in the figure: Single Door Unit GCDU 100 Bei 2-flügligen Anlagen mit integrierter Schließfolge sicherstellen, dass die Seile der IS-Mechanik die Module nicht beschädigen.
