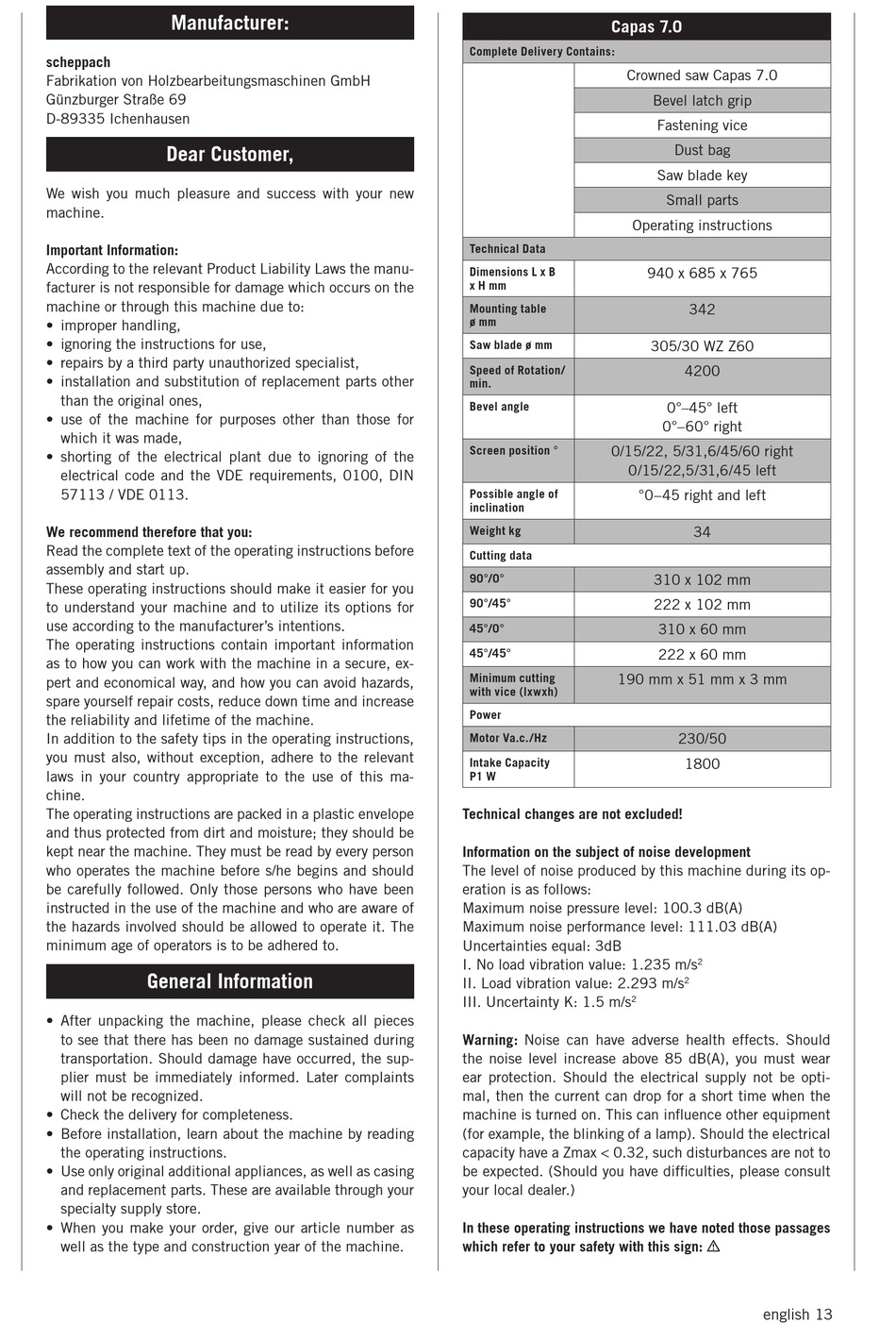

Manufacturer:
scheppach
Fabrikation von Holzbearbeitungsmaschinen GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear Customer,
We wish you much pleasure and success with your new
machine.
Important Information:
According to the relevant Product Liability Laws the manu-
facturer is not responsible for damage which occurs on the
machine or through this machine due to:
• improper handling,
• ignoring the instructions for use,
• repairs by a third party unauthorized specialist,
• installation and substitution of replacement parts other
than the original ones,
• use of the machine for purposes other than those for
which it was made,
• shorting of the electrical plant due to ignoring of the
electrical code and the VDE requirements, 0100, DIN
57113 / VDE 0113.
We recommend therefore that you:
Read the complete text of the operating instructions before
assembly and start up.
These operating instructions should make it easier for you
to understand your machine and to utilize its options for
use according to the manufacturer's intentions.
The operating instructions contain important information
as to how you can work with the machine in a secure, ex-
pert and economical way, and how you can avoid hazards,
spare yourself repair costs, reduce down time and increase
the reliability and lifetime of the machine.
In addition to the safety tips in the operating instructions,
you must also, without exception, adhere to the relevant
laws in your country appropriate to the use of this ma-
chine.
The operating instructions are packed in a plastic envelope
and thus protected from dirt and moisture; they should be
kept near the machine. They must be read by every person
who operates the machine before s/he begins and should
be carefully followed. Only those persons who have been
instructed in the use of the machine and who are aware of
the hazards involved should be allowed to operate it. The
minimum age of operators is to be adhered to.

General Information

• After unpacking the machine, please check all pieces
to see that there has been no damage sustained during
transportation. Should damage have occurred, the sup-
plier must be immediately informed. Later complaints
will not be recognized.
• Check the delivery for completeness.
• Before installation, learn about the machine by reading
the operating instructions.
• Use only original additional appliances, as well as casing
and replacement parts. These are available through your
specialty supply store.
• When you make your order, give our article number as
well as the type and construction year of the machine.
Capas 7.0
Complete Delivery Contains:
Crowned saw Capas 7.0
Technical Data
Dimensions L x B
x H mm
Mounting table
ø mm
Saw blade ø mm
Speed of Rotation/
min.
Bevel angle
Screen position ° 0/15/22, 5/31,6/45/60 right
0/15/22,5/31,6/45 left
Possible angle of
inclination
Weight kg
Cutting data
90°/0°
90°/45°
45°/0°
45°/45°
Minimum cutting 190 mm x 51 mm x 3 mm
with vice (lxwxh)
Power
Motor Va.c. /Hz
Intake Capacity
P1 W
Technical changes are not excluded!
Information on the subject of noise development
The level of noise produced by this machine during its op-
eration is as follows:
Maximum noise pressure level: 100.3 dB(A)
Maximum noise performance level: 111.03 dB(A)
Uncertainties equal: 3dB
I. No load vibration value: 1.235 m/s
II. Load vibration value: 2.293 m/s
III. Uncertainty K: 1.5 m/s 2
Warning: Noise can have adverse health effects. Should
the noise level increase above 85 dB(A), you must wear
ear protection. Should the electrical supply not be opti-
mal, then the current can drop for a short time when the
machine is turned on. This can influence other equipment
(for example, the blinking of a lamp). Should the electrical
capacity have a Zmax < 0.32, such disturbances are not to
be expected. (Should you have difficulties, please consult
your local dealer.)
In these operating instructions we have noted those passages
which refer to your safety with this sign: m
Bevel latch grip
Fastening vice
Dust bag
Saw blade key
Small parts
Operating instructions
940 x 685 x 765
342
305/30 WZ Z60
4200
0°–45° left
0°–60° right
°0–45 right and left
34
310 x 102 mm
222 x 102 mm
310 x 60 mm
222 x 60 mm
230/50
1800
2
2
