2.18 Other outputs of the electronic controller
2.18.1 Alarm output (DO5)
The digital output DO5 is pre-configured as an alarm contact. The contact is activated in case of
alarms and lock-outs. Warnings will be shown only on the controller display.

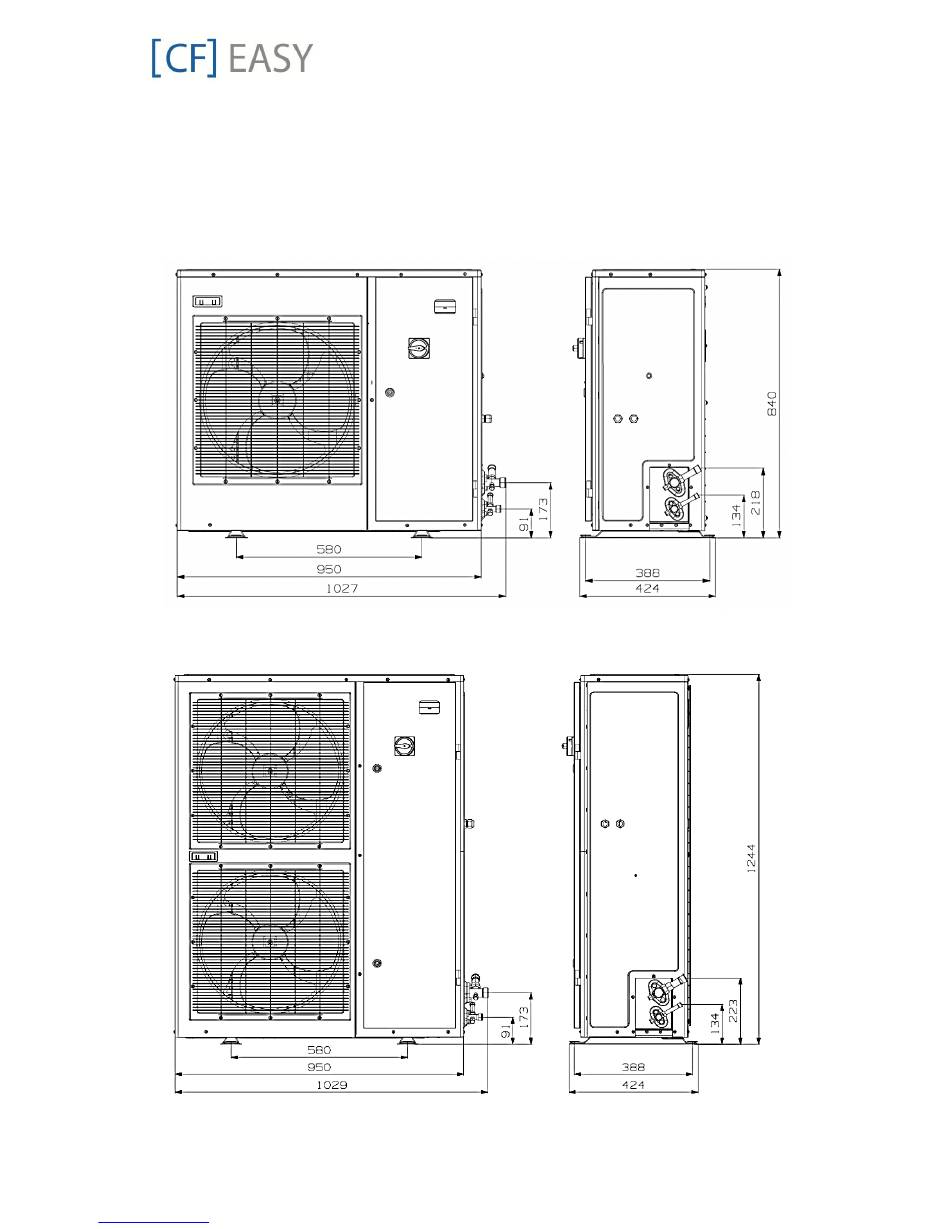

2.19 Dimensions in mm
The figures hereafter show the overall physical dimensions of the [ CF ] EASY condensing units:
Figure 12: Dimensions of models CFME020E, CFME025E, CFME030E & CFME040E and models CFLE020E,
CFLE030E & CFLE040E (single-fan units)
Figure 13: Dimensions of models CFME050E, CFME060E, CFME075E, CFDE040E, CFDE050E, CFDE060E,
CFDE075E, CFLE050E, CFLE060E & CFLE075E (dual-fan units)
