2.7.5 P&I diagram for CFLE units

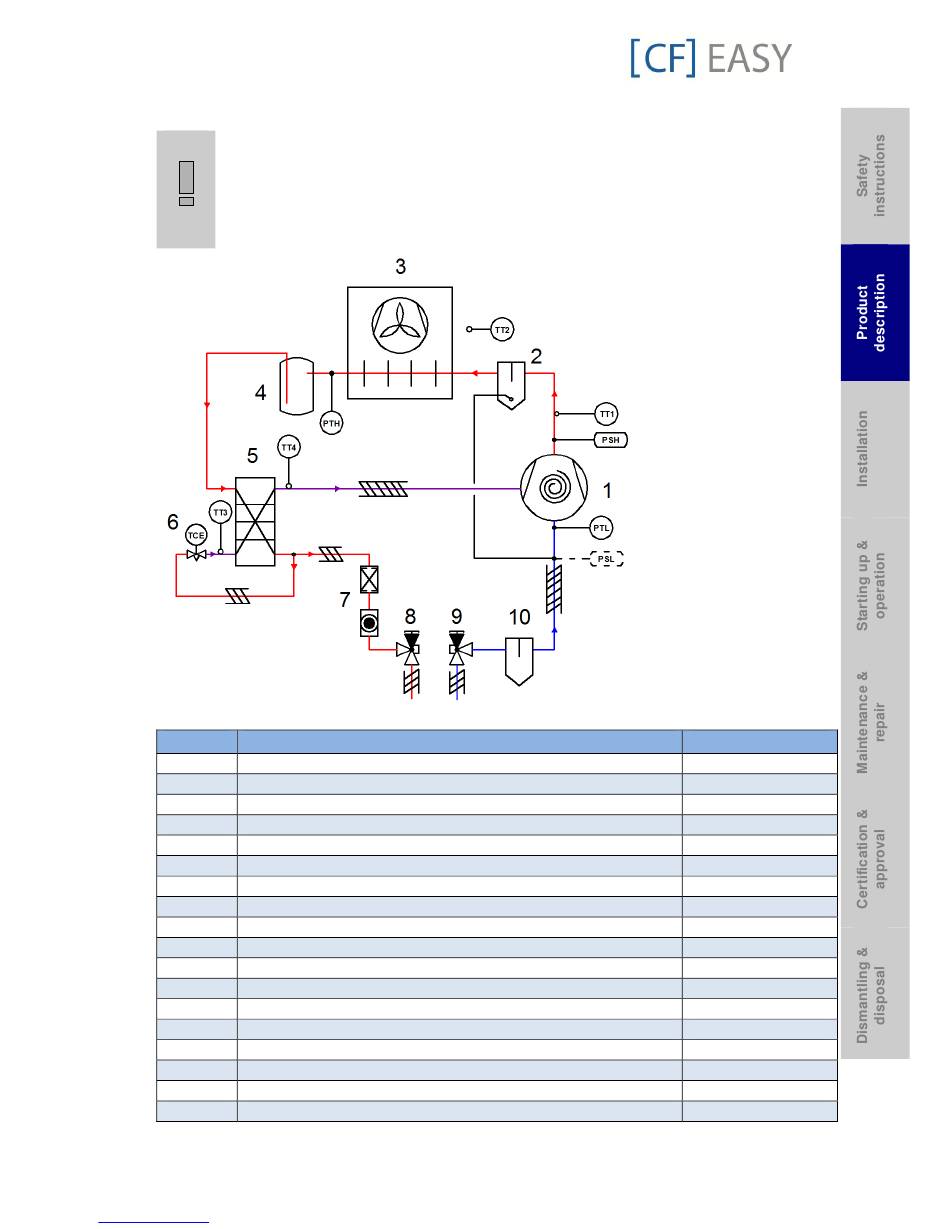

Figure 4: P&I diagram for CFLE units
Position
PSL
PSH
PTL
PTH
TT1
TT2
TT3
TT4
Table 6: Legend of the P&I Diagram for CFLE units
C6.1.6/0513-0515/E
Downloaded from www.Manualslib.com
IMPORTANT
No insulation on liquid line! Air moisture condensation and lack of
performance! Moisture will condensate on the liquid line and cause water
droplets. The liquid line can pick up additional heat from the ambient which
will adversely affect the sub-cooling desirable for the liquid refrigerant before
it enters the expansion valve. Insulate both the suction and liquid
interconnecting piping between the [ CF ] EASY unit and the evaporator.
1 High efficient Copeland Scroll ZX
2 Oil separator
3 Condenser with 1 or 2 fans
4 Liquid receiver with service valve
5 Plate heat exchanger for enhanced vapour injection (EVI)
6 Expansion device for enhanced vapour injection (EVI)
7 Filter drier / sight glass combination
8 Service valve, liquid line
9 Service valve, suction line
10 Liquid separator
Pressure switch, adjustable, low pressure, not factory mounted
Pressure safety switch, not adjustable, high pressure
Suction pressure sensor, low pressure
Pressure sensor, high pressure
Discharge temperature sensor
Ambient temperature sensor
Vapour in temperature sensor
Vapour out temperature sensor
manuals search engine
Description Remark
System safety option
System safety
Compressor setpoint
Fan speed control
Compressor safety
Additional functions
EVI control
EVI control
