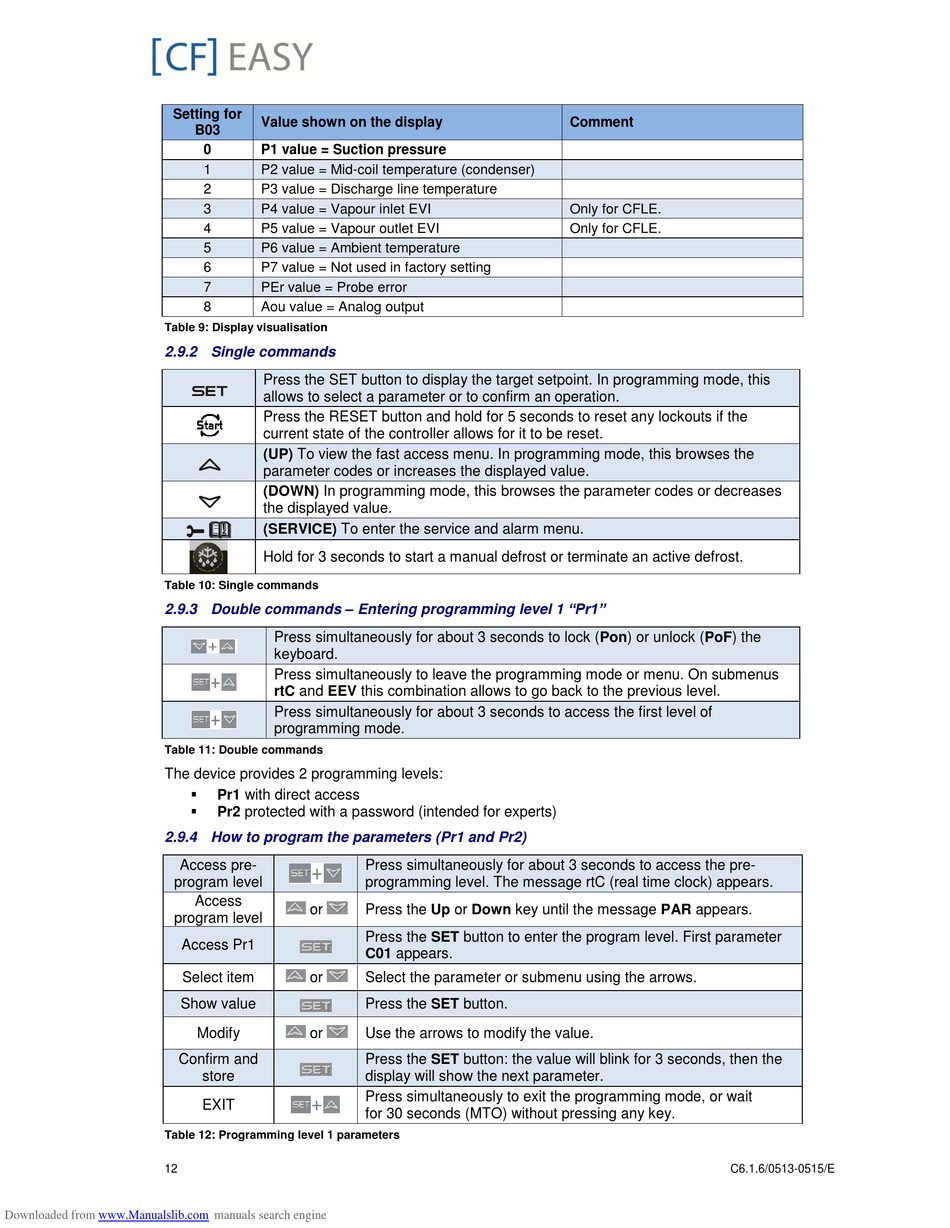

Table 9: Display Visualisation; Table 10: Single Commands; Table 11: Double Commands; Table 12: Programming Level 1 Parameters - Fischer Kälte-Klima CF EASY CFME020E Bedienungsanleitung

Setting for

Table 9: Display visualisation

2.9.2 Single commands

Table 10: Single commands

2.9.3 Double commands – Entering programming level 1 "Pr1"

Table 11: Double commands

The device provides 2 programming levels:
2.9.4 How to program the parameters (Pr1 and Pr2)
Access pre-
program level
program level
Access Pr1
Select item
Show value
Confirm and

Table 12: Programming level 1 parameters

12
Downloaded from www.Manualslib.com
Value shown on the display
B03
0 P1 value = Suction pressure
1 P2 value = Mid-coil temperature (condenser)
2 P3 value = Discharge line temperature
3 P4 value = Vapour inlet EVI
4 P5 value = Vapour outlet EVI
5 P6 value = Ambient temperature
6 P7 value = Not used in factory setting
7 PEr value = Probe error
8 Aou value = Analog output
Press the SET button to display the target setpoint. In programming mode, this
allows to select a parameter or to confirm an operation.
Press the RESET button and hold for 5 seconds to reset any lockouts if the
current state of the controller allows for it to be reset.
(UP) To view the fast access menu. In programming mode, this browses the
parameter codes or increases the displayed value.
(DOWN) In programming mode, this browses the parameter codes or decreases
the displayed value.
(SERVICE) To enter the service and alarm menu.
Hold for 3 seconds to start a manual defrost or terminate an active defrost.
Press simultaneously for about 3 seconds to lock (Pon) or unlock (PoF) the
keyboard.
Press simultaneously to leave the programming mode or menu. On submenus
rtC and EEV this combination allows to go back to the previous level.
Press simultaneously for about 3 seconds to access the first level of
programming mode.

Pr1 with direct access

Pr2 protected with a password (intended for experts)
Press simultaneously for about 3 seconds to access the pre-
programming level. The message rtC (real time clock) appears.
Access
or Press the Up or Down key until the message PAR appears.
Press the SET button to enter the program level. First parameter
C01 appears.
or Select the parameter or submenu using the arrows.
Press the SET button.
Modify or
Use the arrows to modify the value.
Press the SET button: the value will blink for 3 seconds, then the
store display will show the next parameter.
Press simultaneously to exit the programming mode, or wait
EXIT
for 30 seconds (MTO) without pressing any key.
manuals search engine
Comment
Only for CFLE.
Only for CFLE.
