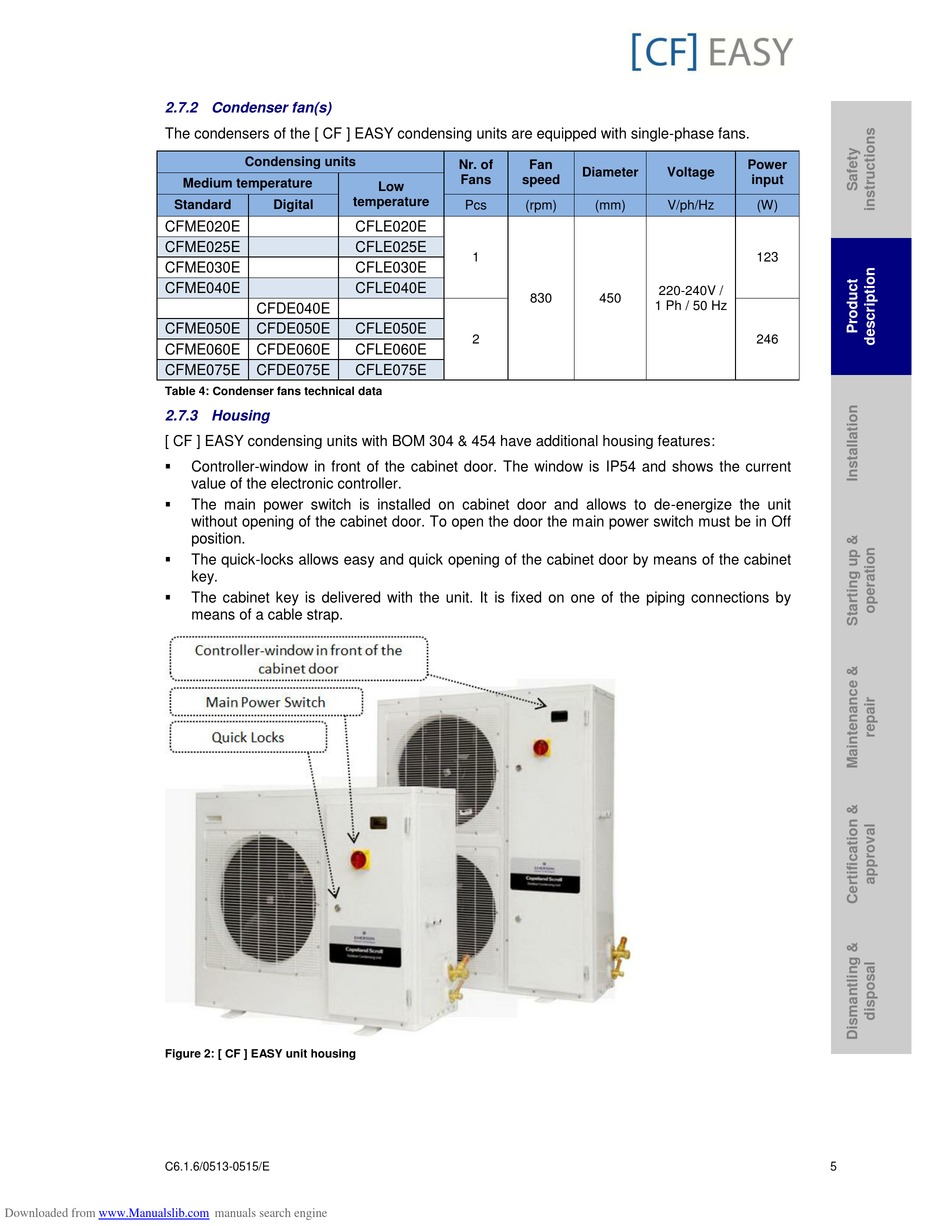

2.7.2 Condenser fan(s)
The condensers of the [ CF ] EASY condensing units are equipped with single-phase fans.
Medium temperature
Standard
CFME020E
CFME025E
CFME030E
CFME040E
CFME050E
CFME060E
CFME075E

Table 4: Condenser fans technical data

2.7.3 Housing
[ CF ] EASY condensing units with BOM 304 & 454 have additional housing features:




Figure 2: [ CF ] EASY unit housing
C6.1.6/0513-0515/E
Downloaded from www.Manualslib.com
Condensing units
temperature
Digital
CFLE020E
CFLE025E
CFLE030E
CFLE040E
CFDE040E
CFDE050E CFLE050E
CFDE060E CFLE060E
CFDE075E CFLE075E
Controller-window in front of the cabinet door. The window is IP54 and shows the current
value of the electronic controller.
The main power switch is installed on cabinet door and allows to de-energize the unit
without opening of the cabinet door. To open the door the main power switch must be in Off
position.
The quick-locks allows easy and quick opening of the cabinet door by means of the cabinet
key.
The cabinet key is delivered with the unit. It is fixed on one of the piping connections by
means of a cable strap.
manuals search engine
Nr. of Fan
Fans speed
Low
Pcs (rpm)
1
830
2
Power
Diameter Voltage
input
(mm) V/ph/Hz (W)
123
220-240V /
450
1 Ph / 50 Hz
246
5
