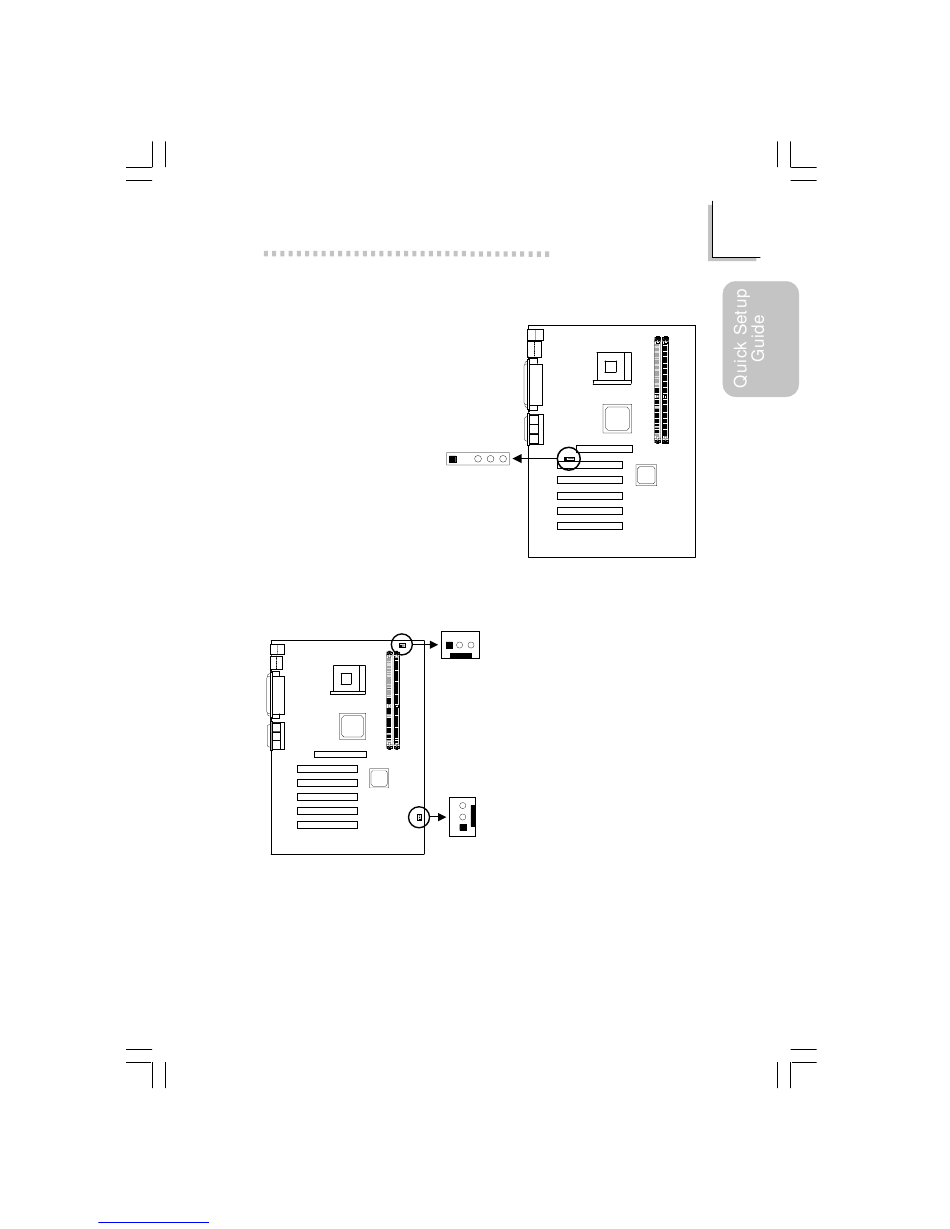

1.4.3 IrDA Connector
1 VCC
2 N. C.
3 IRRX
4 Ground
5 IRTX
The sequence of the pin
functions on some IrDA
cable may be reversed from
the pin function defined on
the mainboard. Make sure
to connect the cable to the
IrDA connector according to
their pin functions.
1.4.4 Fan Connectors
66500237 1.pmd
manuals search engine
1 2 3 4 5
IrDA (J8)
3
1 2
CPU Fan
CPU fan
1 Ground
(J15) 2 12V
3 N. C.
Chassis Fan
1 Ground
2 12V
3 N. C.
3
2
1
Chassis fan
(J14)
15
1
Quick Setup Guide
15
