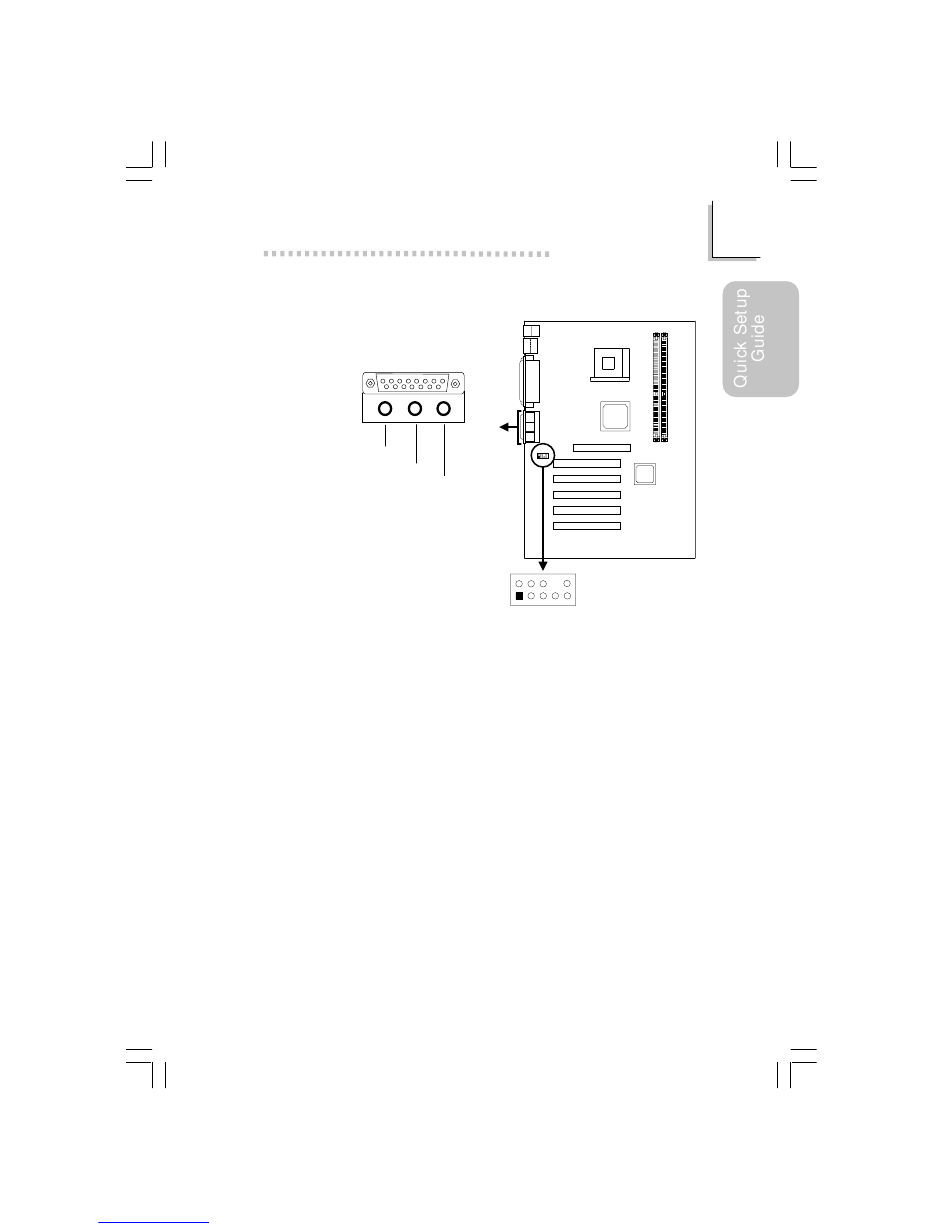

1.3.5 Game/MIDI Port and Audio Jacks
Game/MIDI Port
Line-out
Front Audio (J21)
1 Mic+
2 Ground
3 Mic Power
4 AuD_Vcc (Avcc)
5 AuD_R_Out
6 AuD_R_Return (GND)
7 N. C.
8 Key
9 AuD_L_Out
1 0 AuD_L_Return (GND)
66500237 1.pmd
manuals search engine
CN301
2 10
1 9
Line-in
Mic-in
2
1
Front audio
(J21)
13
1
Quick Setup Guide
10
9
13
