Operating the DVD 820 M in a system without a DD 820 M
If your M-system does not include a DD 820 M, the TV
set can be connected directly to the component output of
the DVD 820 M using the TV connecting lead and the
S-video adaptor, as shown in the wiring diagram below.

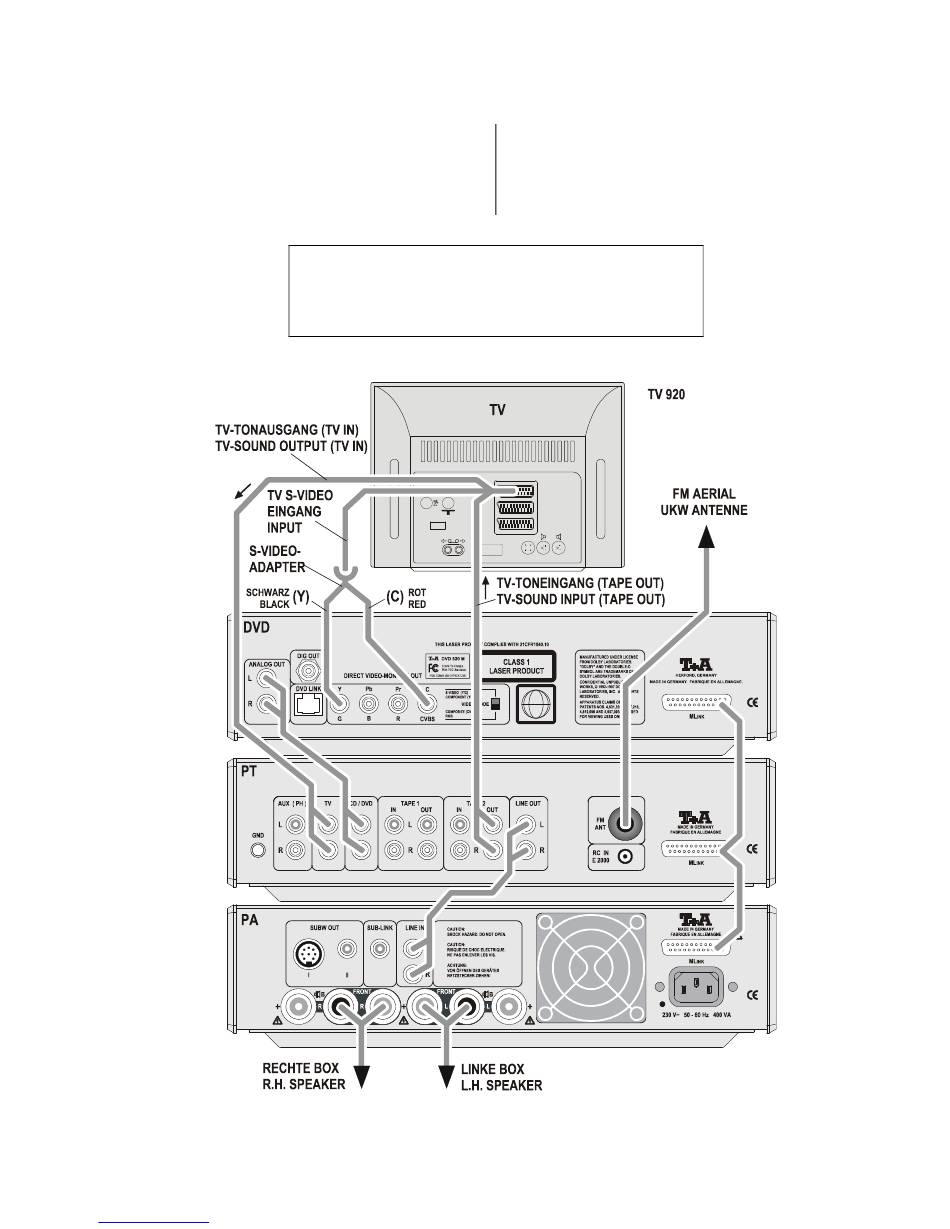

Wiring diagram: Operating the DVD 820 M in a system without a DD 820 M decoder (TV with EURO-Scart)
Downloaded from www.Manualslib.com
(special operating mode)
Note:
The chinch plugs of the S-video-adaptor are coded by the following
colours:
black:
red:
manuals search engine
Move the video mode switch to the top position (Y/C).
The video input of the TV set must be configured to
S-video (see TV operating instructions).
Y-signal
C-signal
