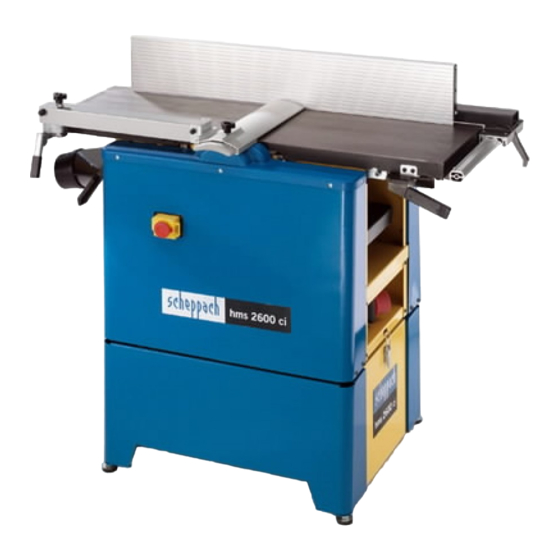

Aufklappbaren Abrichttisch einstellen hms/hmc 3200 ci / hms/hmc 2600 ci Swing-up Dressing Table Adjustment hms/hmc 3200 ci / hms/hmc 2600 ci...
Seite 2
Abb./Fig. "1" Hobelmaschine gerade Set up the planing machine. aufstellen. Place a straight level on the Wasserwage auf Dickentisch thicknessing table and align legen und die Maschine the machine with the floor. zum Boden ausrichten. Abb. "1" Fig. "1" Getriebeschalthebel sowie Unscrew the switching lever die Zwischenscheibe and the washer.
Seite 3
Abb./Fig. "5" Fig. "5" Abb. "5" 3 Löcher Ø 8 mm in den Bore 3 Ø 8 mm holes in the frame leg. Through the bore Gestellfuß bohren. Durch die holes, loosen the Allen Bohrung die Innensechskant- schrauben am Scharnier screws on the hinge.
Seite 4
Abb./Fig. "8" Abb. "8/8a" Fig. "8/8a" • Den Tisch links und rechts, • Raise the table on the left sowie rückseitig anheben. and right, as well as at • Die Schrauben an den the rear. Scharnieren und an der • Gently tighten the screws Spannhebelplatte leicht on the hinge and on the anziehen.
