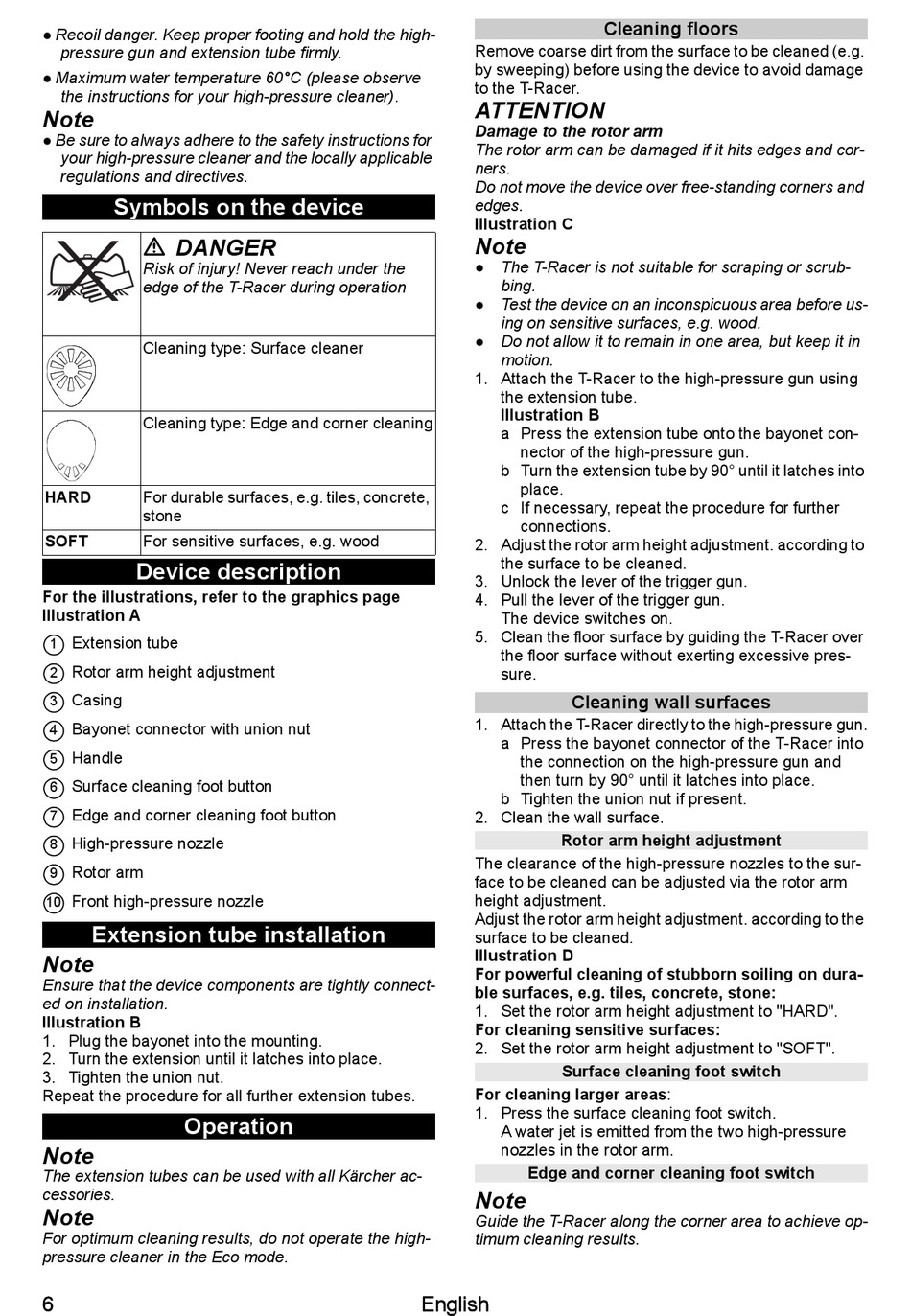

● Recoil danger. Keep proper footing and hold the high-
pressure gun and extension tube firmly.
● Maximum water temperature 60°C (please observe
the instructions for your high-pressure cleaner).
Note
● Be sure to always adhere to the safety instructions for
your high-pressure cleaner and the locally applicable
regulations and directives.

Symbols on the device

DANGER
Risk of injury! Never reach under the
edge of the T-Racer during operation
Cleaning type: Surface cleaner
Cleaning type: Edge and corner cleaning
HARD For durable surfaces, e.g. tiles, concrete,
stone
SOFT For sensitive surfaces, e.g. wood

Device description

For the illustrations, refer to the graphics page
Illustration A
Extension tube
1
Rotor arm height adjustment
2
Casing
3
Bayonet connector with union nut
4
Handle
5
Surface cleaning foot button
6
Edge and corner cleaning foot button
7
High-pressure nozzle
8
Rotor arm
9
Front high-pressure nozzle
10
Extension tube installation
Note
Ensure that the device components are tightly connect-
ed on installation.
Illustration B
1. Plug the bayonet into the mounting.
2. Turn the extension until it latches into place.
3. Tighten the union nut.
Repeat the procedure for all further extension tubes.
Operation
Note
The extension tubes can be used with all Kärcher ac-
cessories.
Note
For optimum cleaning results, do not operate the high-
pressure cleaner in the Eco mode.
6
Remove coarse dirt from the surface to be cleaned (e.g.
by sweeping) before using the device to avoid damage
to the T-Racer.
ATTENTION
Damage to the rotor arm
The rotor arm can be damaged if it hits edges and cor-
ners.
Do not move the device over free-standing corners and
edges.
Illustration C
Note
● The T-Racer is not suitable for scraping or scrub-
bing.
● Test the device on an inconspicuous area before us-
ing on sensitive surfaces, e.g. wood.
● Do not allow it to remain in one area, but keep it in
motion.
1. Attach the T-Racer to the high-pressure gun using
the extension tube.
Illustration B
a Press the extension tube onto the bayonet con-
nector of the high-pressure gun.
b Turn the extension tube by 90° until it latches into
place.
c If necessary, repeat the procedure for further
connections.
2. Adjust the rotor arm height adjustment. according to
the surface to be cleaned.
3. Unlock the lever of the trigger gun.
4. Pull the lever of the trigger gun.
The device switches on.
5. Clean the floor surface by guiding the T-Racer over
the floor surface without exerting excessive pres-
sure.
Cleaning wall surfaces
1. Attach the T-Racer directly to the high-pressure gun.
a Press the bayonet connector of the T-Racer into
the connection on the high-pressure gun and
then turn by 90° until it latches into place.
b Tighten the union nut if present.
2. Clean the wall surface.
Rotor arm height adjustment
The clearance of the high-pressure nozzles to the sur-
face to be cleaned can be adjusted via the rotor arm
height adjustment.
Adjust the rotor arm height adjustment. according to the
surface to be cleaned.
Illustration D
For powerful cleaning of stubborn soiling on dura-
ble surfaces, e.g. tiles, concrete, stone:
1. Set the rotor arm height adjustment to "HARD".
For cleaning sensitive surfaces:
2. Set the rotor arm height adjustment to "SOFT".
Surface cleaning foot switch
For cleaning larger areas:
1. Press the surface cleaning foot switch.
A water jet is emitted from the two high-pressure
nozzles in the rotor arm.
Edge and corner cleaning foot switch
Note
Guide the T-Racer along the corner area to achieve op-
timum cleaning results.
English

Cleaning floors


