Installation instructions, for professionals only
6. Connect all earth conductors available to the earth conductor panel 5.
7. Place the cover of the housing on the upper edge of the lower housing
section and swivel the cover of the housing downwards until you hear
it engage.
c
b
a
9
8
7
6
Terminal strip for the heater and bench
1
sensor and door monitor
Cable bushing fordoor monitoring
2
Fastening hole on the right
3
Cable bushing for sensor cables
4
Earth conductor terminal
5
Clip lock
6
WORLD OF WELLNESS
Cable bushings for light,
7
heater and power supply cable
Fastening hole on the left
8
Terminal strip for light,
9
heater and power supply cable
Light fuse
a
Control panel
b
Attachment device
c
p. 11/28

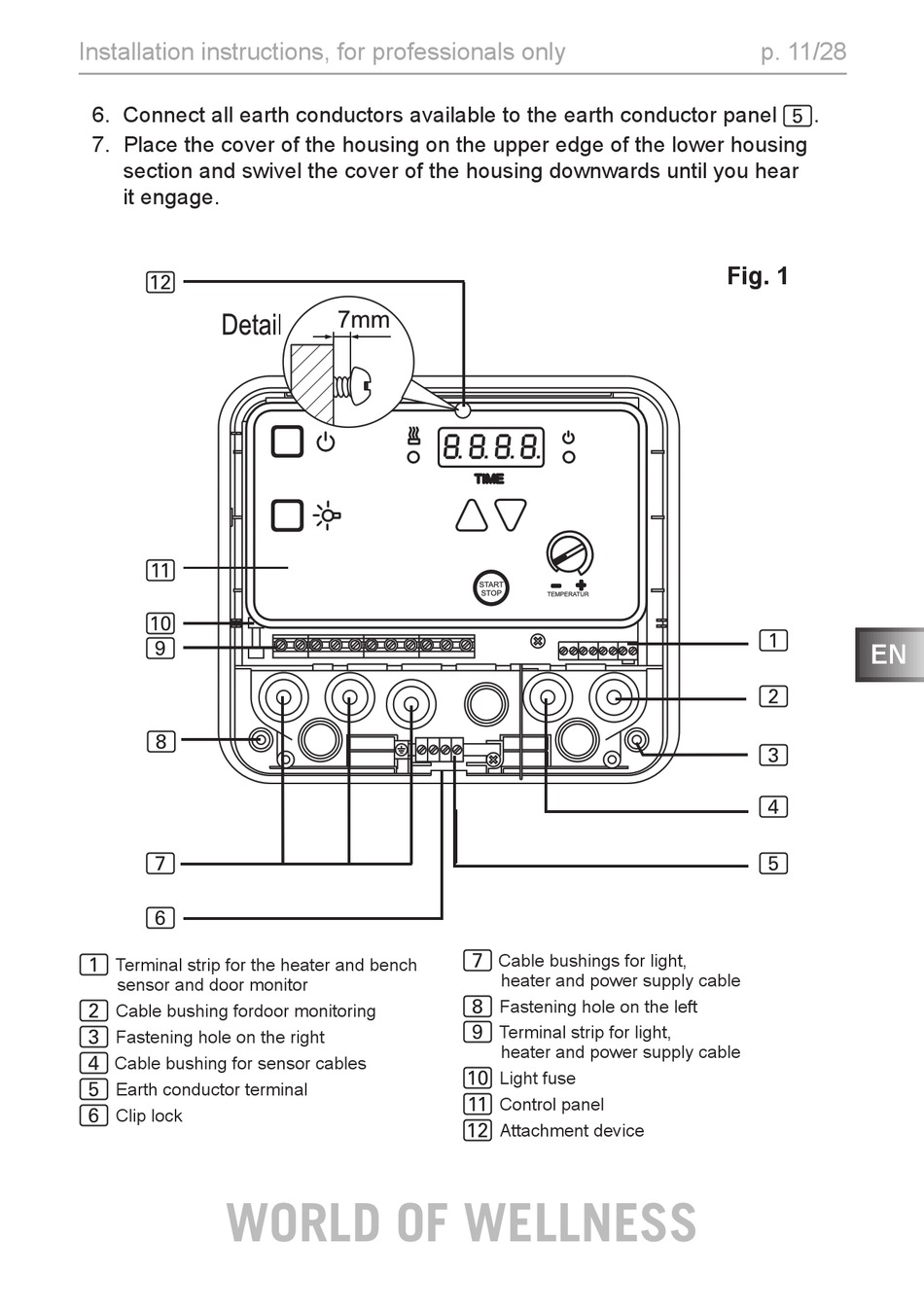

Fig. 1
