Veromatic MBE01 Installation, Bedienung, Wartung Seite 59

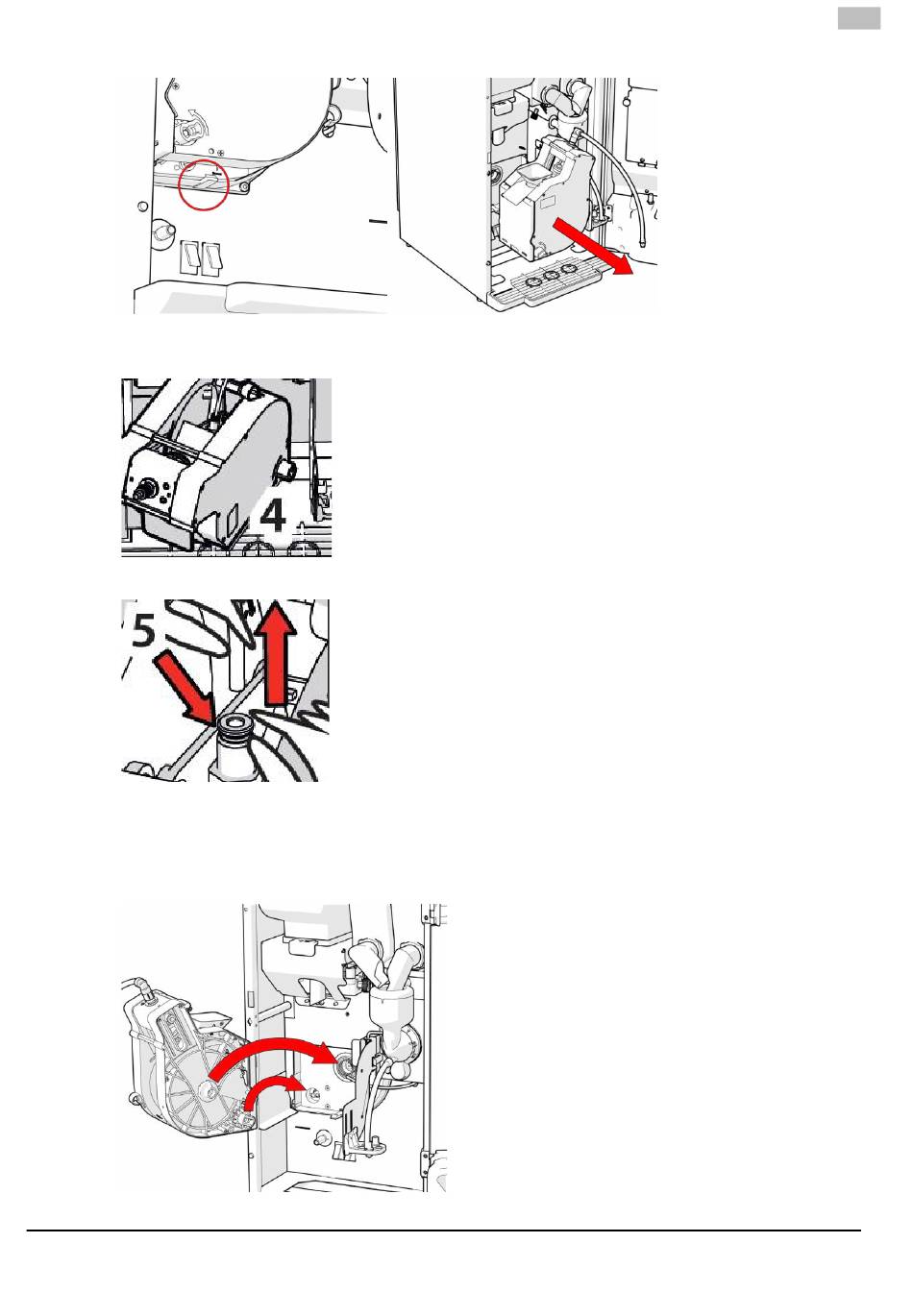

Carefully bend the click finger downwards and remove the brewer.
7
Place it on the side to easily access the inlet hose coupling.
8
Disconnect the brewer hose by pressing the ring with one hand and pulling the hose with the other
9
hand.
Rinse the brewer with warm water under the tap. Dry the brewer.
10
Reinstall the inlet hose thoroughly in the quick coupling at the bottom (see 25/26 in reverse)
11
Replace all parts in the reverse order. Check if the drive notch is aligned with the motor shaft and if
12
the sensor carrier is aligned with the notch on the back of the brewer.
60
EN
