ASROCK Z490 Phantom Gaming 4/ax Schnellinstallationsanleitung Seite 30

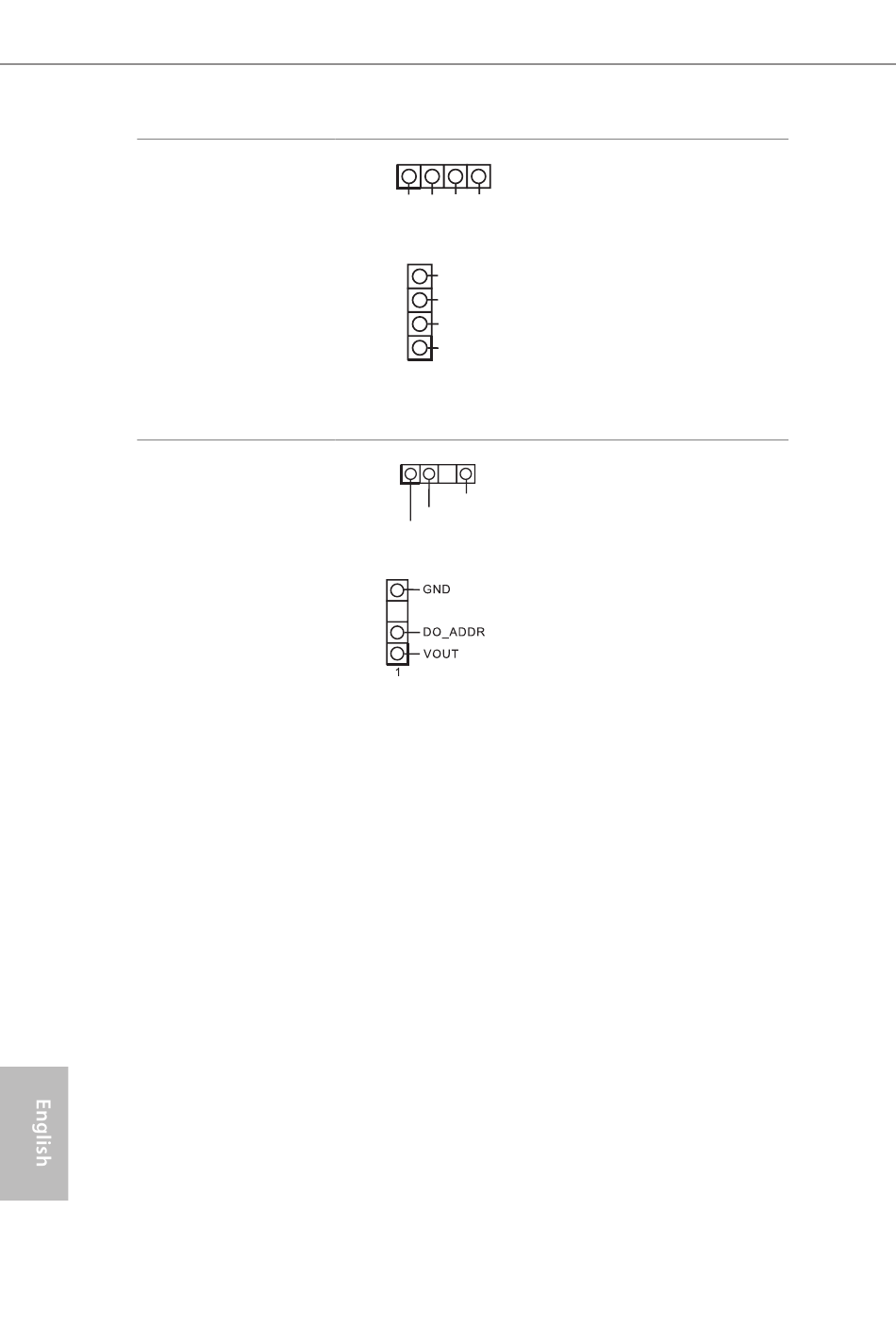

RGB LED Headers
(4-pin RGB_LED1)
(see p.1, No. 29)
(4-pin RGB_LED2)
(see p.1, No. 7)
Addressable LED Headers
(3-pin ADDR_LED1)
(see p.1, No. 26)
(3-pin ADDR_LED2)
(see p.1, No. 8)
26
RGB headers are used to connect
1
RGB LED extension cables which
12V G R B
allow users to choose from
various LED lighting effects.
Caution: Never install the
B
R RGB LED cable in the wrong
G
orientation; otherwise, the cable
12V
may be damaged.
1
*Please refer to page 34 for further
instructions on this header.
These headers are used to connect
1
Addressable LED extension cables
GND
DO_ADDR
which allow users to choose from
VOUT
various LED lighting
effects.
Caution: Never install the Ad-
dressable LED cable in the wrong
orientation; otherwise, the cable
may be damaged.
*Please refer to page 35 for
further instructions on this
header.
