Fig. 1 – Installation with 3-way withdrawal tap
3.1. Optional connections
Fig. 3 – Installation with 1-way withdrawal tap and washing machine
The optimal installation surface for your Verdanium Home is in the cabinet below the kitchen sink.
Please make sure for proper operation of the filter that:
• the Verdanium Home is standing upright, stable and even on all feet.
• the Verdanium Home is not standing on soft floor surfaces.
• the Verdanium Home is placed, if possible, in a corner of the cabinet base as the cabinet is
strongest in this location.
34
Instruction Manual – Verdanium Home – Ver. 1.1.4 – 11.2020

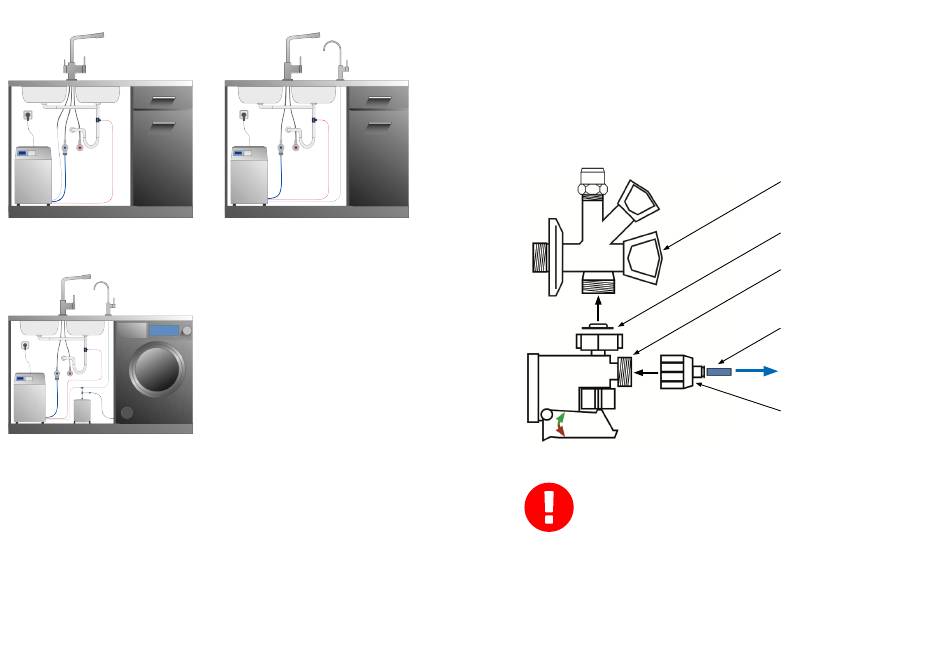

Fig. 2 – Installation with 1-way withdrawal tap
3.2 Connections
3.2.1 Hydro-Stopper
To install the Hydro-Stopper, proceed as follows:
Insert an AA LR 6 alkaline battery into the Hydro-Stopper and mount it with the sealing strainer inserted
onto the angle valve of the cold water connection. Screw the connection adapter 3/4" to 3/8" tube onto
the Hydro-Stopper.
Place the sensors of the Hydro-Stopper at the lowest point of your built-in kitchen cabinet.
Warning!
Change the battery after each filter change or at least once a year.
Instruction Manual – Verdanium Home – Ver. 1.1.4 – 11.2020
Angle valve
Sealing strainer of the Hydro-Stopper
Hydro-Stopper
Art.Nr.: 1000016
Plastic tube 3/8"
Art.-Nr.: PE-12-EI-0500F-B
To the Verdanium Home input
Connection adapter 3/4" to 3/8" tube
Art.-Nr.: NC2249
35
