but saw bow does not go up when selected by
switch (K), that means that pump motor is running
wrong direction.
Change two of the electric phases.

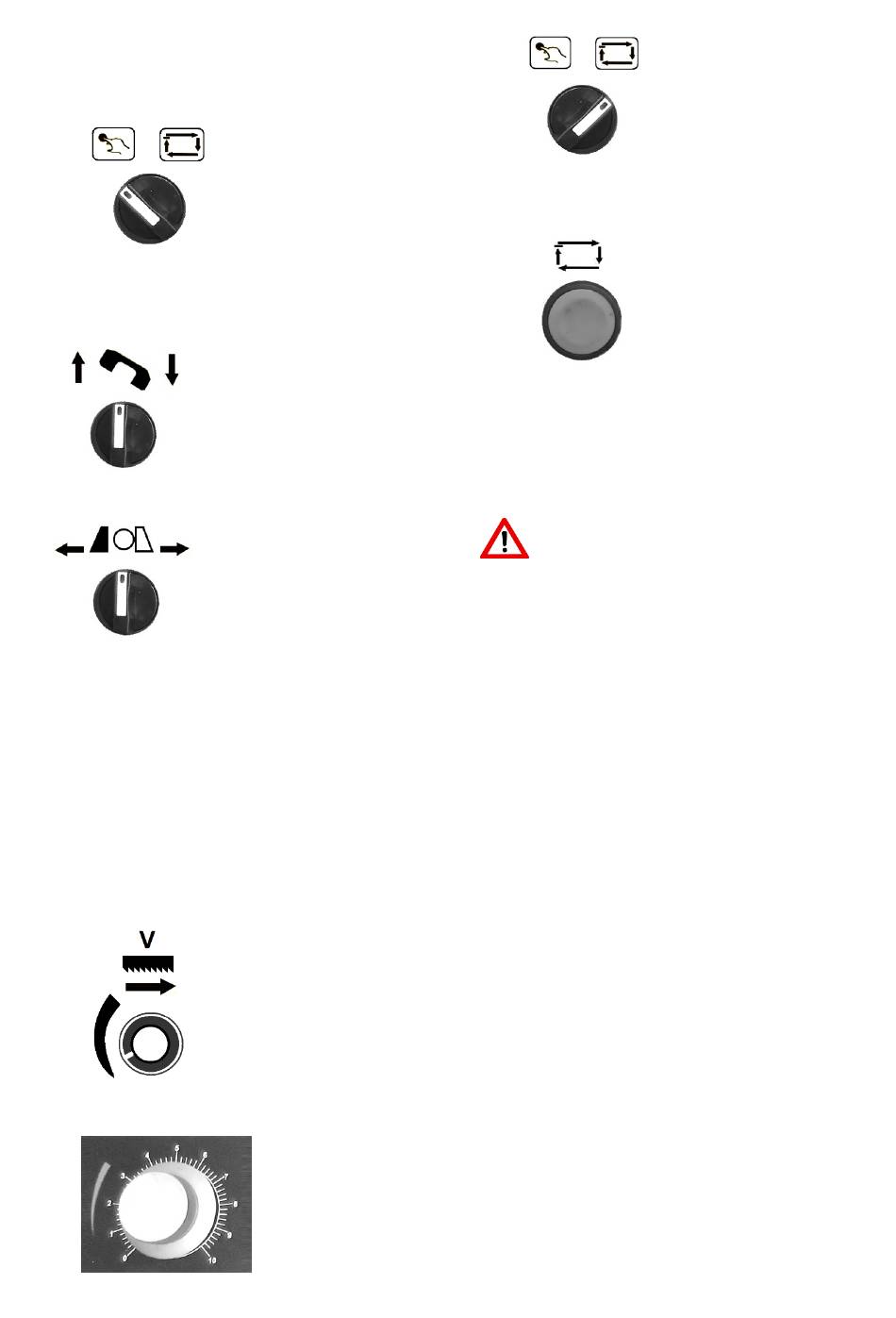

2. Turn operating mode (D) to "Manual"
3. Select (K) to lift saw bow to the top.
Then move the material feeler (P, Fig 7-4) up to the
top.
4. Use switch (L) to open the vise.
5. Place stock material between the vise jaws.
Note:
For cycle cuts of a same size material, leave a small
gap (3~5mm) between the work piece and open vise
jaws.
6. Use switch (L) to clamp the material.
Note:
Vise clamping pressure is monitored. When clamping
the material securely, the vise pressure increases
and the saw arm descend is released.
7. Select the saw blade speed on knob (N).
8. Set the saw arm descend rate via valve (O).
9. Turn operating mode (D) to "Auto".
10. Press cycle start button (C) to start operation.
11. At the end of cutting, the hydraulic vise will open
automatically.
12. The saw arm will return to the bow's maximum set
height.
13. Now the machine is ready for the next operation.
CAUTION:
Be sure to stand in a safe location while operating the
machine.
In general, start the cutting, by slightly turning hydraulic
flow regulation valve (O) clockwise from 1 to 2 to control
the saw arm descent rate.
If the arm descends too quickly, turn hydraulic valve (O)
counter-clockwise.
A saw arm dropping too quickly can cause the blade to
stall and the machine to shut off.
In case, push the emergency stop button (I). It
immediately stops all machine functions.
During the operation cycle, the hydraulic vise will
automatically close on the work piece for a distance up to
8mm.
The hydraulic vise will open maximum 8mm on the end of
cycle and be ready for the next operation.
Therefore it is not necessary to manually lock down the
vise jaws by hand. Keep a gap of 4~5mm between the
jaws and the work piece.
In case of Emergency or problem, press the emergency
stop button (I). It immediately stops all machine functions.
To release the emergency stop button, rotate it clock-
wise.
The hydraulic pump will automatically shut-off after 10
minutes of non-operation.
