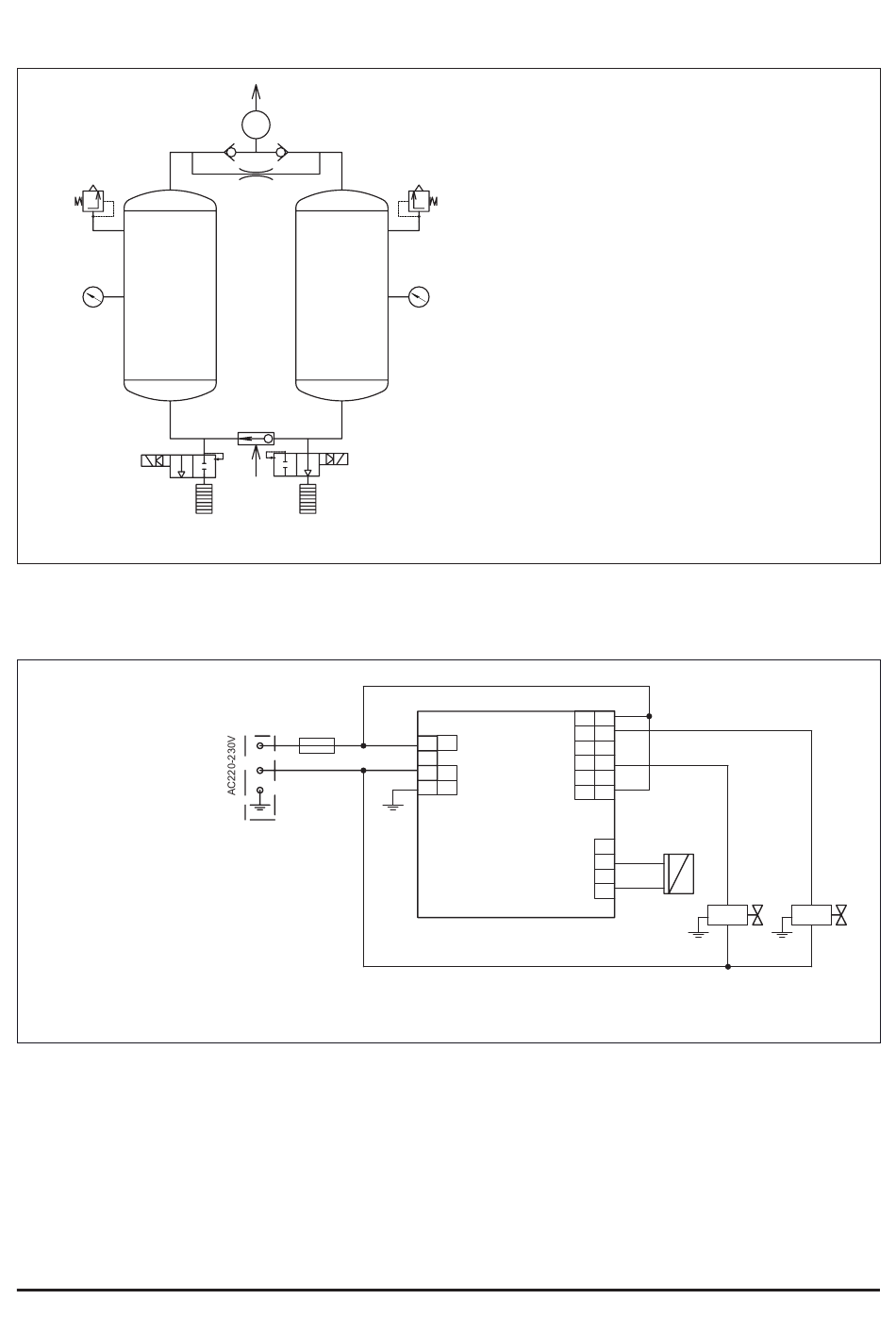

3.5 Pneumatic circuit diagram
7
1
6
4
3.6 Connection to power supply and electric circuit diagram
1.
V1
Plug
2.
PV2/PV4 Valve
3.
F1
Fuse
4.
I/Td
Dew-point sensor
5.
R
Controller PDP-LOG
Figure 3.6. Electrical schematic diagram
Only qualified personnel should connect equipment to an electric power supply. Before con-
necting, ensure that the voltage and frequency in the power supply network correspond to the
values in table 2.1. The permissible voltage variation is ±10%.
14
10
T p
9
9
8
2
3
4
5
5
V1
2A
F1
1.
Left tower.
2.
Right tower.
7
3.
Bypass valve.
4.
Solenoid valve.
5.
Silencer.
6
6.
Manometer.
7.
Safety valve.
8.
Injector.
9.
Check valve.
10. Outlet valve
com
1
U
2
N
3
PE
com
DC24V+
R
DC24V-
4-20ma
9
k4
8
k3
7
k2
6
k1
5
4
blue
10
I
11
Td
12
white
PV2
PV4
