3.

Start up

3.1 Lifting
Visually inspect for damages to packaging, and if there are no damages, then place the unit
near the site chosen for installation and unpack the unit. Equipment must only be moved
using the appropriate handling devices or hoisters. Equipment must not be manually lifted
or moved. Even when packaged, store the equipment in a place shielded from weather con-
ditions. Handle with care. Heavy impacts (bumps and falls) may cause irreparable damage.
3.2 Dimensions

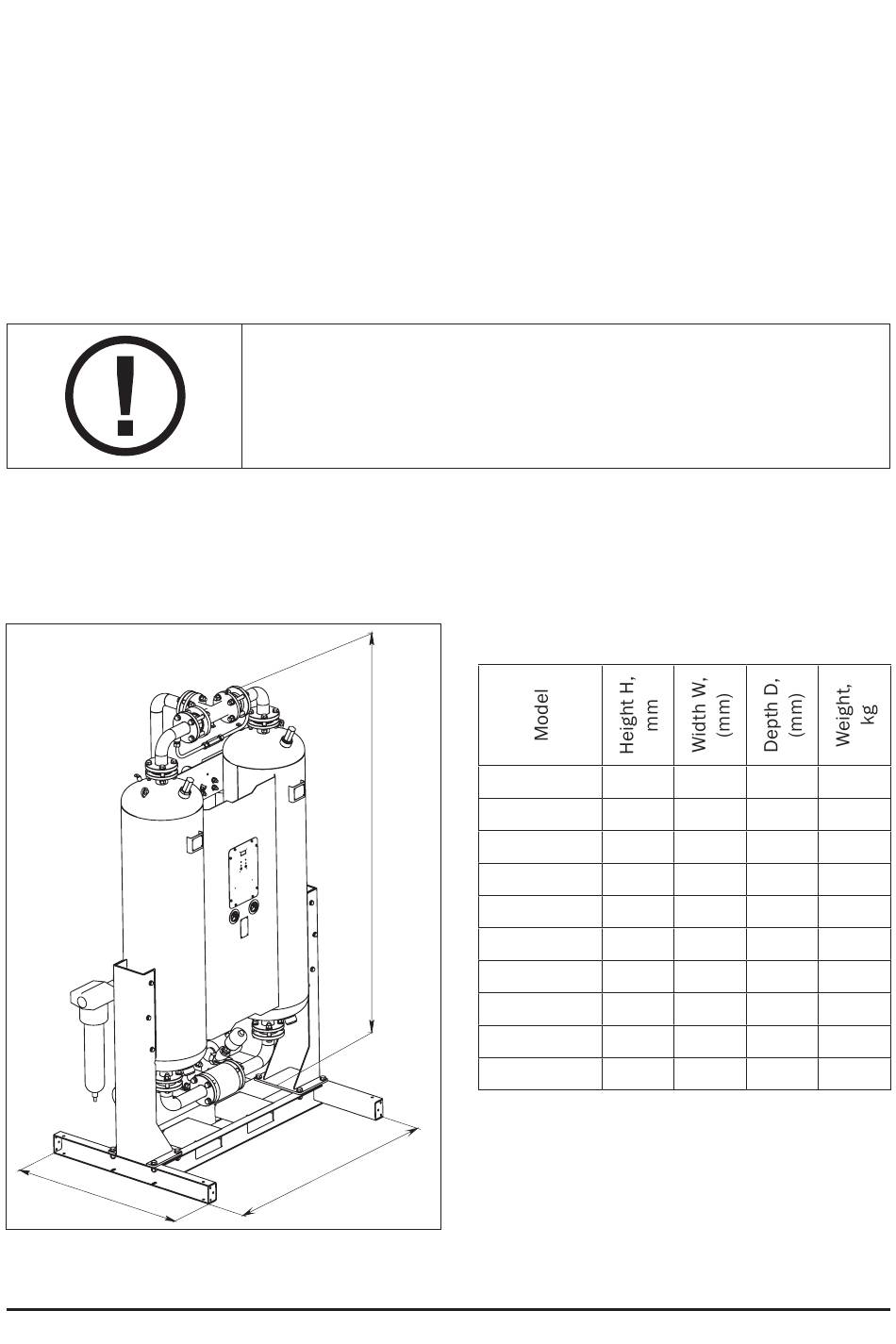

The appearance of the air dryer is shown in figure 3.2
D
12
The presence of dents, chips and other damages may invalidate
the warranty.
H
W
Fig. 3.2 Air dryer dimensions.
ADX-20-F-PDP 1220
ADX-30-F-PDP 1500
ADX-40-F-PDP 1850
ADX-50-F-PDP 2130
ADX-70-F-PDP 1950
ADX-90-F-PDP 2200
ADX-125-F-PDP 2320
ADX-160-F-PDP 2320
ADX-200-F-PDP 2320
ADX-250-F-PDP 2630
800 600 95,0
800 600 116,0
800 800 185,0
800 800 215,0
1040 800 260,0
1040 800 320,0
1275 1000 520,0
1320 1000 590,0
1430 1000 750,0
1430 1000 840,0
