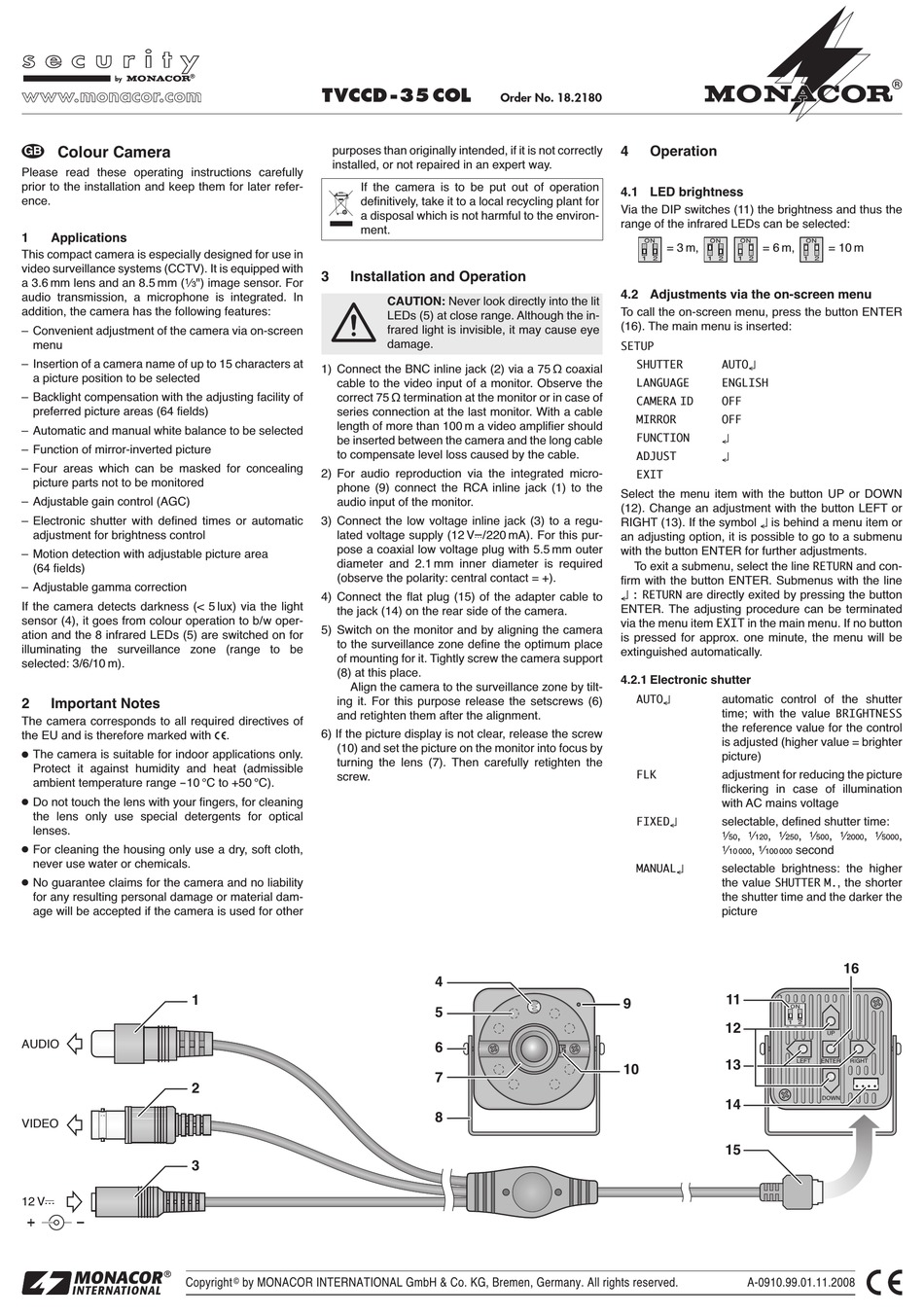

Colour Camera
GB
Please read these operating instructions carefully
prior to the installation and keep them for later refer-
ence.
1
Applications
This compact camera is especially designed for use in
video surveillance systems (CCTV). It is equipped with
a 3.6 mm lens and an 8.5 mm (
⁄
") image sensor. For
1
3
audio transmission, a microphone is integrated. In
addition, the camera has the following features:
– Convenient adjustment of the camera via on-screen
menu
– Insertion of a camera name of up to 15 characters at
a picture position to be selected
– Backlight compensation with the adjusting facility of
preferred picture areas (64 fields)
– Automatic and manual white balance to be selected
– Function of mirror-inverted picture
– Four areas which can be masked for concealing
picture parts not to be monitored
– Adjustable gain control (AGC)
– Electronic shutter with defined times or automatic
adjustment for brightness control
– Motion detection with adjustable picture area
(64 fields)
– Adjustable gamma correction
If the camera detects darkness (< 5 lux) via the light
sensor (4), it goes from colour operation to b/w oper-
ation and the 8 infrared LEDs (5) are switched on for
illuminating the surveillance zone (range to be
selected: 3/6/10 m).
2
Important Notes
The camera corresponds to all required directives of
the EU and is therefore marked with
The camera is suitable for indoor applications only.
G
Protect it against humidity and heat (admissible
ambient temperature range -10 °C to +50 °C).
Do not touch the lens with your fingers, for cleaning
G
the lens only use special detergents for optical
lenses.
For cleaning the housing only use a dry, soft cloth,
G
never use water or chemicals.
No guarantee claims for the camera and no liability
G
for any resulting personal damage or material dam-
age will be accepted if the camera is used for other
1
AUDIO
2
VIDEO
3
12 V
Copyright
®
TV
D -35 OL
purposes than originally intended, if it is not correctly
installed, or not repaired in an expert way.
If the camera is to be put out of operation
definitively, take it to a local recycling plant for
a disposal which is not harmful to the environ-
ment.
3
Installation and Operation
CAUTION: Never look directly into the lit
LEDs (5) at close range. Although the in-
frared light is invisible, it may cause eye
damage.
1) Connect the BNC inline jack (2) via a 75 Ω coaxial
cable to the video input of a monitor. Observe the
correct 75 Ω termination at the monitor or in case of
series connection at the last monitor. With a cable
length of more than 100 m a video amplifier should
be inserted between the camera and the long cable
to compensate level loss caused by the cable.
2) For audio reproduction via the integrated micro-
phone (9) connect the RCA inline jack (1) to the
audio input of the monitor.
3) Connect the low voltage inline jack (3) to a regu-
lated voltage supply (12 V /220 mA). For this pur-
pose a coaxial low voltage plug with 5.5 mm outer
diameter and 2.1 mm inner diameter is required
(observe the polarity: central contact = +).
4) Connect the flat plug (15) of the adapter cable to
the jack (14) on the rear side of the camera.
5) Switch on the monitor and by aligning the camera
to the surveillance zone define the optimum place
of mounting for it. Tightly screw the camera support
(8) at this place.
Align the camera to the surveillance zone by tilt-
ing it. For this purpose release the setscrews (6)
and retighten them after the alignment.
6) If the picture display is not clear, release the screw
.
(10) and set the picture on the monitor into focus by
turning the lens (7). Then carefully retighten the
screw.
by MONACOR INTERNATIONAL GmbH & Co. KG, Bremen, Germany. All rights reserved.
©
Order No. 18.2180
4
5
6
7
8
4
Operation
4.1 LED brightness
Via the DIP switches (11) the brightness and thus the
range of the infrared LEDs can be selected:
= 3 m,
= 6 m,
4.2 Adjustments via the on-screen menu
To call the on-screen menu, press the button ENTER
(16). The main menu is inserted:
SETUP
SHUTTER
AUTO↵
LANGUAGE
ENGLISH
CAMERA ID
OFF
MIRROR
OFF
FUNCTION
↵
ADJUST
↵
EXIT
Select the menu item with the button UP or DOWN
(12). Change an adjustment with the button LEFT or
RIGHT (13). If the symbol ↵ is behind a menu item or
an adjusting option, it is possible to go to a submenu
with the button ENTER for further adjustments.
To exit a submenu, select the line
firm with the button ENTER. Submenus with the line
are directly exited by pressing the button
: RETURN
↵
ENTER. The adjusting procedure can be terminated
via the menu item EXIT in the main menu. If no button
is pressed for approx. one minute, the menu will be
extinguished automatically.
4.2.1 Electronic shutter
automatic control of the shutter
AUTO↵
time; with the value
the reference value for the control
is adjusted (higher value = brighter
picture)
adjustment for reducing the picture
FLK
flickering in case of illumination
with AC mains voltage
selectable, defined shutter time:
FIXED↵
⁄
,
⁄
,
⁄
1
1
1
50
120
250
⁄
,
⁄
1
1
10 000
100 000
selectable brightness: the higher
MANUAL↵
the value
SHUTTER M.
the shutter time and the darker the
11
9
12
13
10
14
15
A-0910.99.01.11.2008
= 10 m
and con-
RETURN
BRIGHTNESS
,
⁄
,
⁄
,
⁄
,
1
1
1
500
2000
5000
second
, the shorter
16
