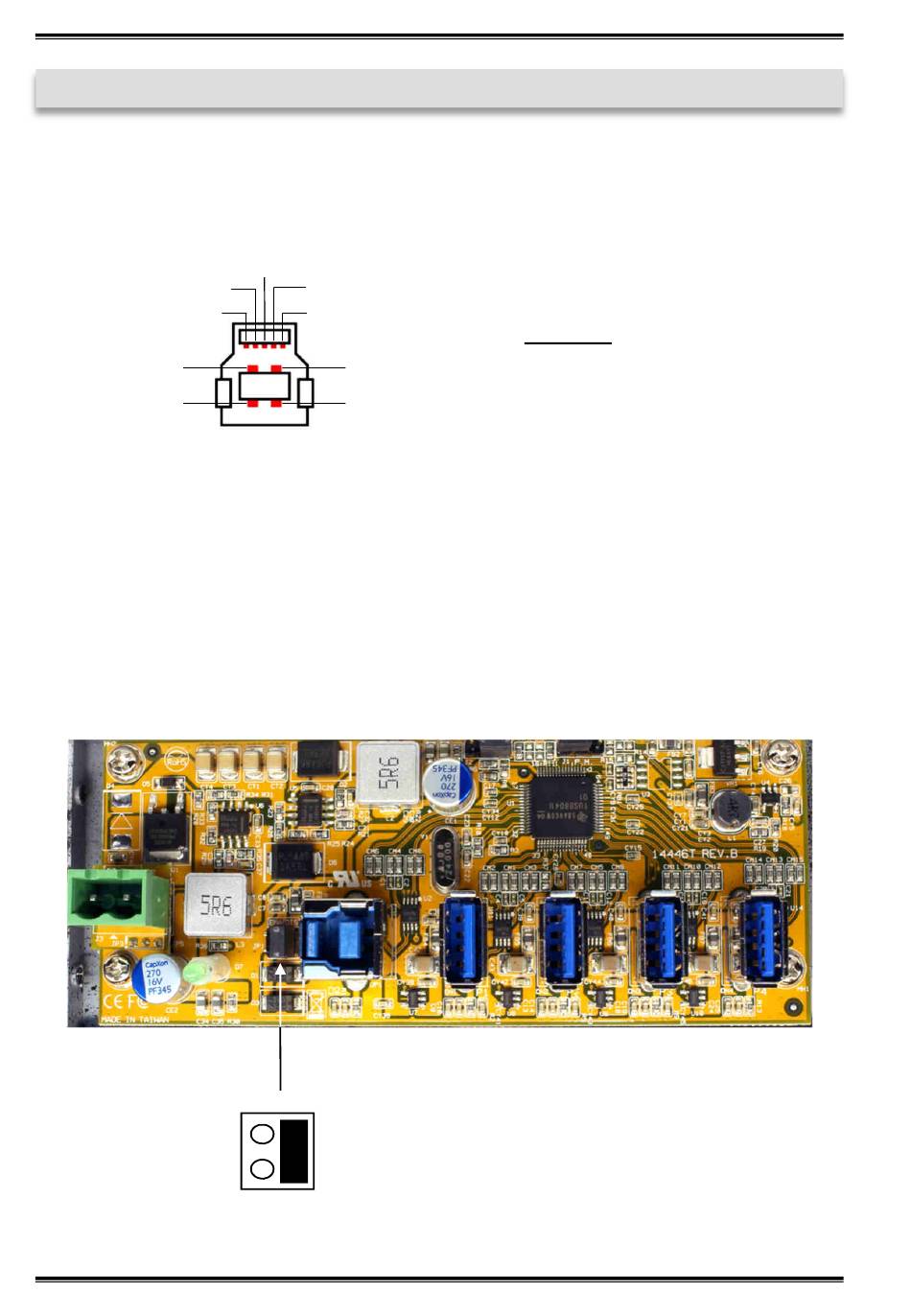

3. Layout, Connections & Jumper Settings
3.2 Connections
USB 3.1 (Gen1) B-Port:
StdB_SSTX +
StdB_SSTX -
D-
D+

3.3 Jumper Settings

The EX-1185HMVS-WT comes with the setting Self-Power. You also have the possi-
bility the EX-1185HMVS-WT to supply Bus-Power. For this you open the case with the
four screws on both sides. Then you must set the jumper JP1 from DIS (Disable) to
ENA (Enable). See the following picture.
Attention! Please do not change Jumper J1 and J2, because this will only be used by
production for test purposes!
JP1
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
VBus
GND
ENA DIS
Attention!
Never plug in with force
or in wrong direction.
10
EX-1185HMVS-WT
