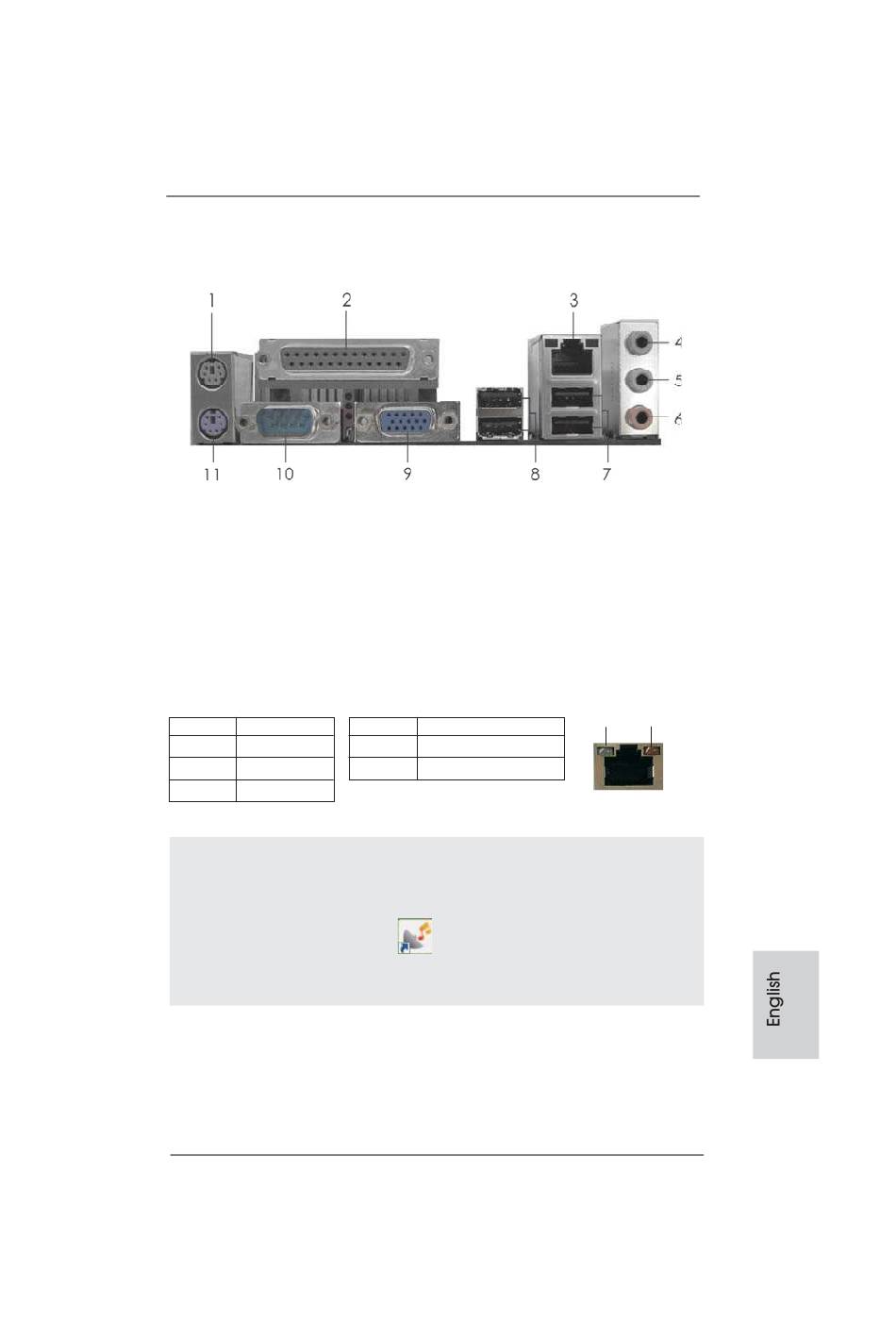

I/O Panel (AD2500B-ITX)
1 PS/2 Mouse Port (Green)
2 Parallel Port
* 3 LAN RJ-45 Port
4 Line In (Light Blue)
5 Front Speaker (Lime)
6 Microphone (Pink)
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED
Status Description
Off No Link
Blinking Data Activity
On Link
To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. After restarting your computer, you will fi nd "VIA HD Audio Deck" tool on
your system. Please follow below instructions according to the OS you install.
Please click "VIA HD Audio Deck" icon
on the bottom. In "Advanced Options" screen, select "Independent Headphone", and click
"OK" to save your change.
ASRock AD2700B-ITX / AD2500B-ITX Motherboard
7 USB 2.0 Ports (USB01)
8 USB 2.0 Ports (USB23)
9 VGA Port
10 COM Port
11 PS/2 Keyboard Port (Purple)
SPEED LED
Status Description
Off 10Mbps connection
Orange 100Mbps connection
, and click "Advanced Options" on the left side
ACT/LINK SPEED
LED LED
LAN Port
5
