ENGLISH

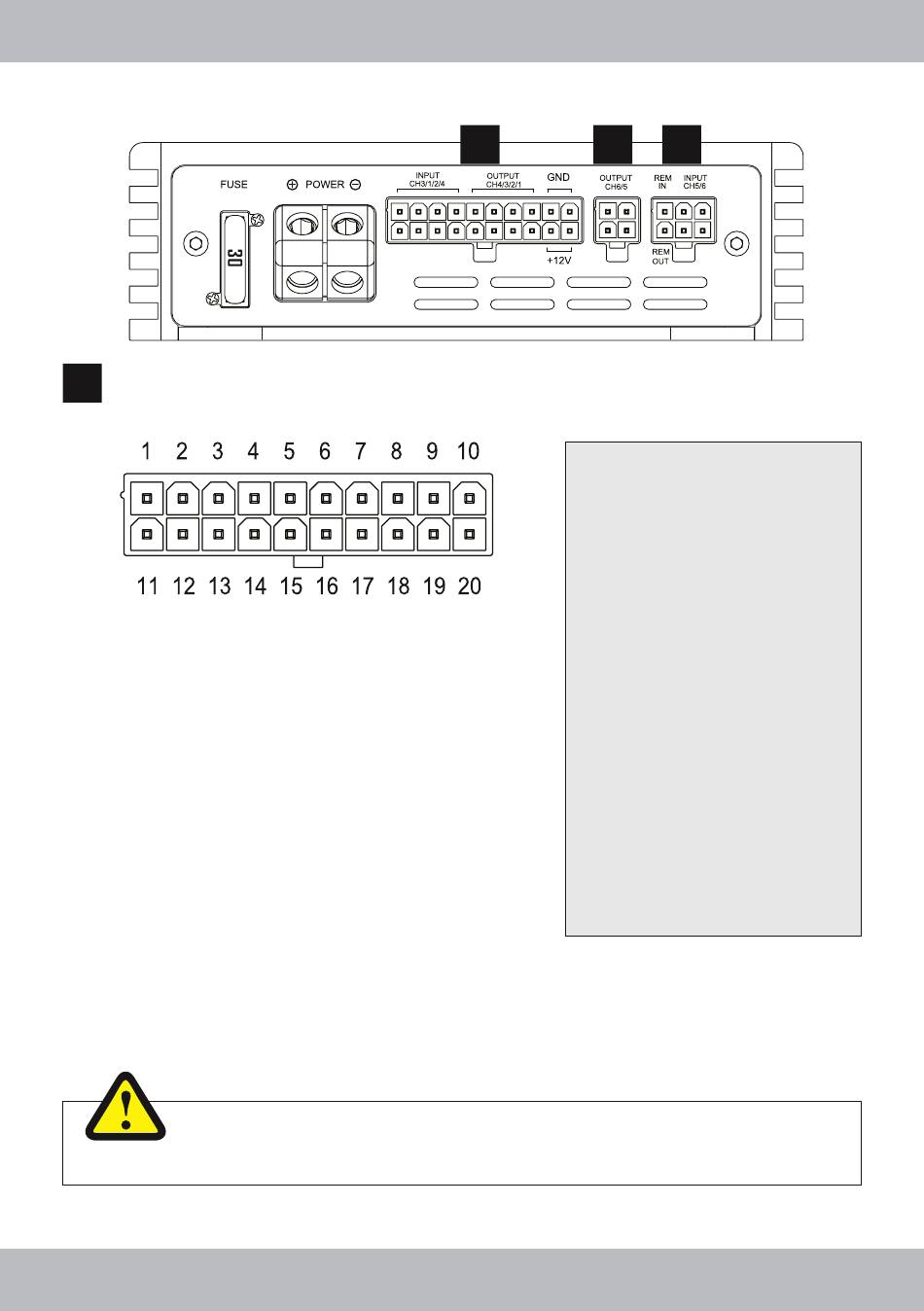

SYSTEM CONNECTOR
3
Connector for the enclosed cable harness. Make sure that you only use the original cable that comes
with the amplifier to connect the amplifier with your head unit/car stereo.
HIGH LEVEL INPUTS CH1- 4:
Connect here the amplified speaker outputs coming
from the head unit. The input sensitivity is adjustable
from 3.5 to 11 V RMS with the CH1/2/3/4 controller.
CH1 features the Auto Turn-On function through the
connection with the speaker outputs of the head unit.
LOW LEVEL INPUTS CH1- 4 (optional, only M6
If you want to use the signal input section with low
level signals (e.g. with the pre-amplifier outputs from
your head unit), please refer to page 16.
SPEAKER OUTPUTS CH1- 4:
Connect here speakers (2 - 4 Ohms) according to your
sound system.
If you want to bridge the speaker outputs (BTL mode)
and drive the connected speakers/subwoofers with a 4
Ohm load, bridge the channels as follows:
Channel pair 1: SPEAKER OUT1+ (+) & SPEAKER OUT2 - (-) with 4 Ohms
Channel pair 2: SPEAKER OUT3+ (+) & SPEAKER OUT4- (-) with 4 Ohms
WARNING
Do not parallel the outputs, otherwise it may lead the amplifier to damage.
8
3 4
1: HIGH LEVEL INPUT 3 -
11: HIGH LEVEL INPUT 3+
2: HIGH LEVEL INPUT 1-
12: HIGH LEVEL INPUT 1+
3: HIGH LEVEL INPUT 2-
13: HIGH LEVEL INPUT 2+
4: HIGH LEVEL INPUT 4-
14: HIGH LEVEL INPUT 4+
5: SPEAKER OUTPUT 4-
15: SPEAKER OUTPUT 4+
6: SPEAKER OUTPUT 3 -
16: SPEAKER OUTPUT 3+
7: SPEAKER OUTPUT 2 -
17: SPEAKER OUTPUT 2+
):
v2
8: SPEAKER OUTPUT 1-
18: SPEAKER OUTPUT 1+
9: BAT-
19: BAT+
10: BAT-
20: BAT+
