Musway M6v2 Bedienungsanleitung Seite 12

ENGLISH

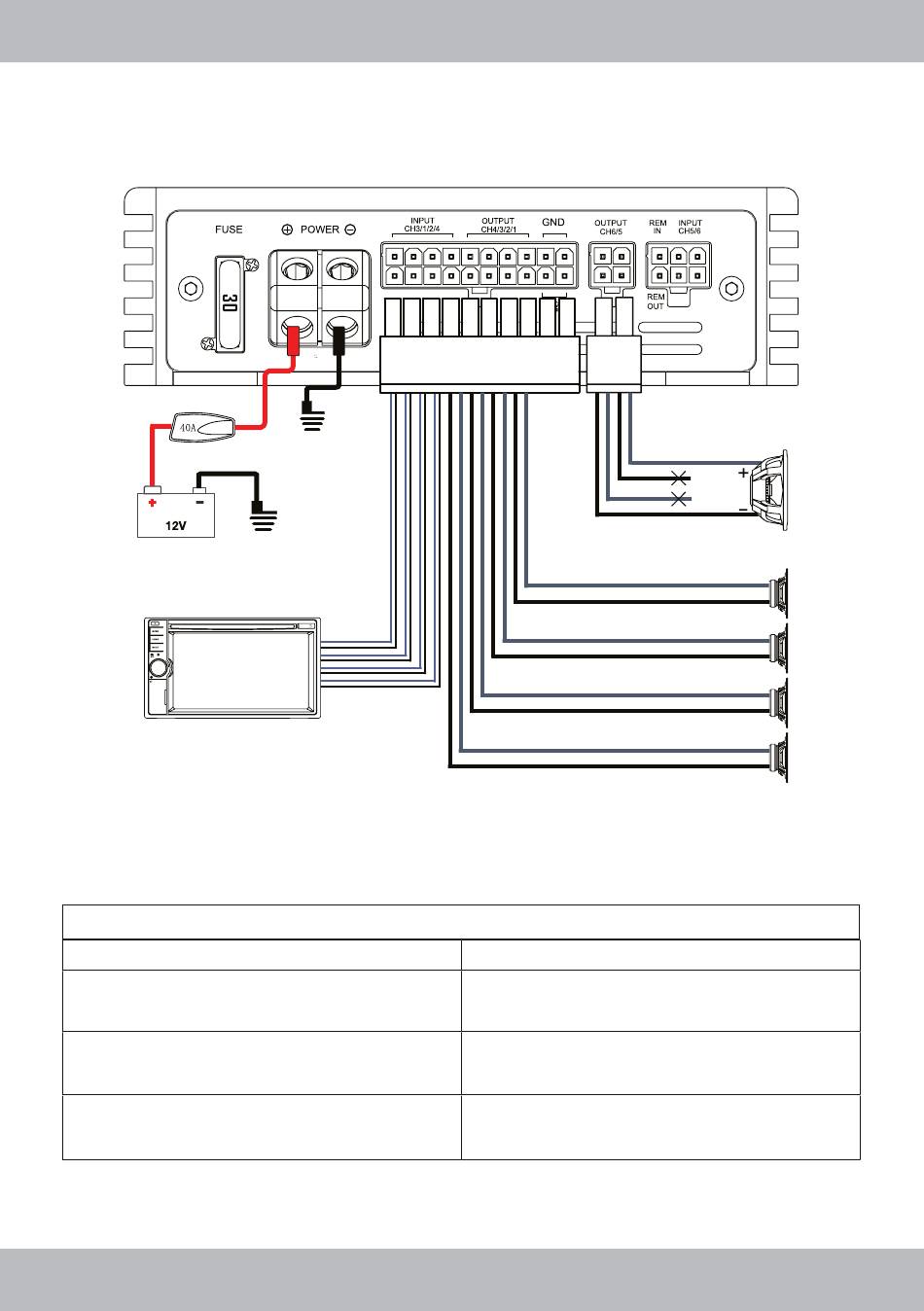

TYPICAL APPLICATION A
FUSE HOLDER
BATTERY
STEREO MODE
CH1 70 W @ 4 Ohms / 105 W @ 2 Ohms
CH2 70 W @ 4 Ohms / 105 W @ 2 Ohms
CH3 70 W @ 4 Ohms / 105 W @ 2 Ohms
CH4 70 W @ 4 Ohms / 105 W @ 2 Ohms
CH5 70 W @ 4 Ohms / 105 W @ 2 Ohms
CH6 70 W @ 4 Ohms / 105 W @ 2 Ohms
@ 13.8VDC, 1% THD
12
GROUND
GROUND
HEAD UNIT
CH1-CH6 AMPLIFIED OUTPUT CHANNELS CONFIGURATION
POWER CHANNEL CONFIGURATION
OUT 5+
OUT 5-
OUT 6+
OUT 6-
SUBWOOFER
18: White Speaker Output 1+
Speaker Output 1-
8: White / Black
17: White Speaker Output 2+
Speaker Output 2-
7: White / Black
16: White Speaker Output 3+
Speaker Output 3-
6: White / Black
15: White
Speaker Output 4+
Speaker Output 4-
5: White / Black
BRIDGE MODE
CH1+ (+) / CH2- (-) 210 W @ 4 Ohms
CH3+ (+) / CH4- (-) 210 W @ 4 Ohms
CH5+ (+) / CH6- (-) 210 W @ 4 Ohms
